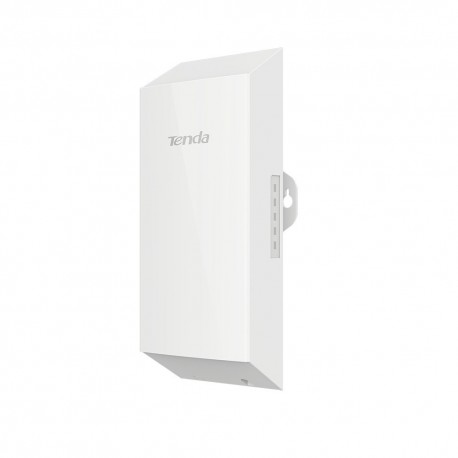

Tenda O2
O2
New product
2km Point to Point Outdoor CPE
O2 5GHz Long Range Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network.
This product is no longer in stock
WhatsApp
More info
Product Information:
Tenda O2 Features and Benefits
Features:
Tenda O2 Description
Overview
O2 5GHz Long Range Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology, two CPE can connect to each other automatically to make it easy to setup.
Features
- 5GHz Frequency
- Auto-Bridging Technology
- Passive PoE or DC Adapter
- 6000V Lightning Protection
- Centralized Management
Specification
- Model: O2
- Dimension: 193.5*80*67.5mm
- Deployment: Pole Mount/Wall Mount
- Application Scenarios: PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
- Frequency Range: 5GHz
- Compliant Standards: IEEE 802.11a/n
- Maximum Wireless Rate: 300Mbps
- Interfaces: 1*10/100Mbps Ethernet Port
- Antenna Polarization: Dual Polarization
- Antennas Gain: 12dbi
- Antenna Beamwidth: Horizontal: 30° Vertical: 30°
- GND: /
- Reset Button: 1*Reset Button
- Power Consumption: 4.3W
- Waterproof Level: IP65
- LED Indicator: PoE/LAN,WiFi, LED1,LED2,LED3
- Power Method: 12V1A Passive PoE 12V1A DC
- Lightning Protection: 6000V
- Passive PoE: Passive power over ethenet via PoE/LAN (+4,5pins-7,8pins) Voltage range: 9-13.8V DC
- Reception Sensitivity
- 11a 6Mbps -96dBm±1.5dBm
- 11n MCS0: -96±1.5dBm
- 11n MCS7: -72±1.5dBm
- TDMA: Support
- Operating mode: AP/Station/WISP/P2MP/WDS Repeater/Router
- Enable/Disable Wireless Radio: Support
- SSID Hidden: Support
- Wireless Client isolation: Support
- SSID Isolation: Support
- Channel Bandwidth: 10/20/30/40MHz
- Channel Shift: Support
- Wireless Access Control: Support
- Weak Signal Client Limitation: Support
- Transmission Power: Adjustable power by 1dBm
- WMM Capable: Support
- APSD Capable: Support
- Wireless Security: 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
- Transparent Bridge: Support
- VLAN Tagging for SSID: Support
- DHCP Server: Support
- VPN Pass-Through: PPTP,L2TP
- Remote Web access: Support
- Schedule Reboot: Support
- Page Timeout: Support
- Ping Watchdog: Support
- Dyndns: noip, dyndns.org
- Network Diagnoses: Ping, Traceroute, Signal Scan
- Time and Date Setting: Support
- Firmware upgrade: Support
- Backup/Restore Configuration: Support
- Username Management: Support
- System Logs: Support
- Managed By Controller: PC Software CPE Assistant
- Package Contents
- 1*5GHz 11n 12dBi 300Mbps outdoor CPE O2
- 1*Power Adapter
- 1*PoE Injector
- 1*Quick Installation Guide
- Operation Temperature: -30℃ ~ 60℃
- Storage Temperature: -40℃ ~ 70℃
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 10%~90% non-condensing
- Default login IP: 192.168.2.1
- Default Login Username: admin
- Default Login Password: admin
- Certification: FCC/CE/RoHS
