Product Information:

Dahua ISC-D118C Features and Benefits

Features:

Dahua ISC-D118C Description

> 18 detection zones with corresponding indicator lights.
> 3.5 inch LCD with an interactive, user-friendly interface.
> Monitors and displays the real-time signal strength of environmental interference.
> Automatically sets operating frequency (20 levels available).
> Counting passing number, pass/return numbers, and alarm number.
> Pass/Return statistics, alarm statistics, and searching by day.
> Easy-to-install modular design.
> Safe low-voltage design.
> 9 alarm tones with 10 adjustable volume levels, mute mode and alarm duration: 0–10 s.
> 255 adjustable sensitivity levels.
> Separate parameter configuration for 12 supported scenarios.
> Multiple IR detection modes.
> IR remote controller (Optional).
> Supports lead-acid batteries (Optional).

Specifications

Technical

Precise Positioning

18 overlapping mesh-like detection zones, bilateral transmission and receipt of detection signals; 2-panel indicator lights

Zone Indication

18 independent zones, and multiple metal items can be located simultaneously

IR Sensor

Infrared sensor with less false or missed alarms; automatic alarm statistics and pass/return statistics

Adjustable Sensitivity

255 adjustable sensitivity levels in each detection zone (sensitivity increases by levels)

Leakage Current

< 0.5 mA, complying with safety requirements for electronic devices

Regular

Operating Voltage

12 VDC, power adapter (included): 100 –240 VAC, 50/60 Hz

Maximum Power Consumption

11 W

Typical Power Consumption

7.8 W

Gross Weight

47 kg (103.62 lb)

Net Weight

37.5 kg (82.67 lb)

Passageway Interior Size

2003 mm x 720 mm x 393 mm (78.9" × 28.3" × 15.5")

Overall Exterior Size

Bare: 2208 mm × 866 mm × 488 mm (86.93" × 34.09" × 19.21")

Packing Size

2271 mm × 695 mm × 215 mm (89.41" × 27.36" × 8.46")

Operating Temperature

–20 °C to +65 °C (–4 °F to +149 °F)

Operating Humidity

0%–90% (RH), non-condensing

Storage Temperature/Humidity

–20 °C to +65 °C (–4 °F to +149 °F)/0%–90% (RH), non-condensing

Power Button

Power switch on the front panel

Indicator Light

A row of green indicators

Environmental Noise

Monitors and displays real-time signal strength of environmental interferences

Installation

Vertical mounting

Certifications

Certifications

GB 15210-2018
IEC 60068-2-1
IEC 60068-2-2
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Ports

Alarm In/Out

1-channel input, and 1-channel output

Network Port

1 RJ-45, 100 Mbps

Power Output

12 VDC

Buy Dahua ISC-D118C Walk Through Metal Detectors, – MB Communication is a Walk Through Metal Detectors Dahua ISC-D118C reseller in Pakistan offers products Walk Through Metal Detectors.

Dahua ISC-D118C price in Pakistan is Rs 137,000

As on Thursday, November 21, 2024 12:58:19

Price in Pakistan for Dahua ISC-D118C

Dahua ISC-D118C Price	Price in Pakistan	Price in Karachi	Price in Lahore
Dahua ISC-D118C	Rs 137,000	Rs 136318	Rs 139796
Contact Number	03000778793	03000778793	03000778793

ISCD118C Price	Price in Islamabad	Price in Rawalpindi	Price in Multan
Walk Through Metal Detectors Dahua ISC-D118C Price	Rs 138384	Rs 139086	Rs 137688
Contact Number	03000778793	03000778793	03000778793

Price ISCD118C Walk Through Metal Detectors	Price in Faisalabad	Price in Gakuch	Price in Pakpattan
Price ISCD118C Walk Through Metal Detectors	Rs 139939	Rs 140082	Rs 140369
Contact Number	03000778793	03000778793	03000778793

MB Communication offers best prices for Dahua ISC-D118C price in Karachi shipping in all the Pakistan cities including Karachi, Lahore, Islamabad, Sialkot, Larkana, Faisalabad, Peshawar, Quetta, Multan, Rawalpindi, Hyderabad, Sukkur, Gujrat, Gujranwala, Sargodha, Bahawalpur, Jhang, Sahiwal, Dera Ghazi Khan, Jhelum, Rahim Yar Khan, Sheikhupura, Okara, Attock, Mianwali, Kashmir, Balochistan, Gilgit-Baltistan, Dadu, Thatta and many more cities in Pakistan at the lowest price.

Walk Through Metal Detectors of Demands very high in Gujranwala, Gujrat, Gujar Khan, Hafizabad, Haroonabad, Hasilpur, Haveli Lakha, Jampur, Jhang, Jhelum, Kalabagh, Karor Lal Esan, Kasur, Kamalia, Kamokey, Khanewal, Khanpur, Kharian, Khushab, Kot Addu, Jahania, Jalla Araain, Jauharabad, Laar, Lahore, Lalamusa, Layyah, Lodhran, Mamoori, Mandi Bahauddin, Makhdoom Aali, Mandi Warburton, Mailsi, Mian Channu, Minawala, Mianwali, Multan, Murree, Muridke, Muzaffargarh, Narowal, Okara, Renala Khurd, Rajan Pur, Pak Pattan, Panjgur

Dahua ISC-D118C Walk Through Metal Detectors is available in very low price in Pattoki, Pirmahal, Qila Didar Singh, Rabwah, Raiwind, Rajan Pur, Rahim Yar Khan, Rawalpindi, Rohri, Sadiqabad, Safdar Abad – (Dhaban Singh), Sahiwal, Sangla Hill, Samberial, Sarai Alamgir, Sargodha, Shakargarh, Shafqat Shaheed Chowk, Sheikhupura, Sialkot, Sohawa, Sooianwala, Sundar (city), Talagang, Tarbela, Takhtbai, Taxila, Toba Tek Singh, Vehari, Wah Cantonment, Wazirabad

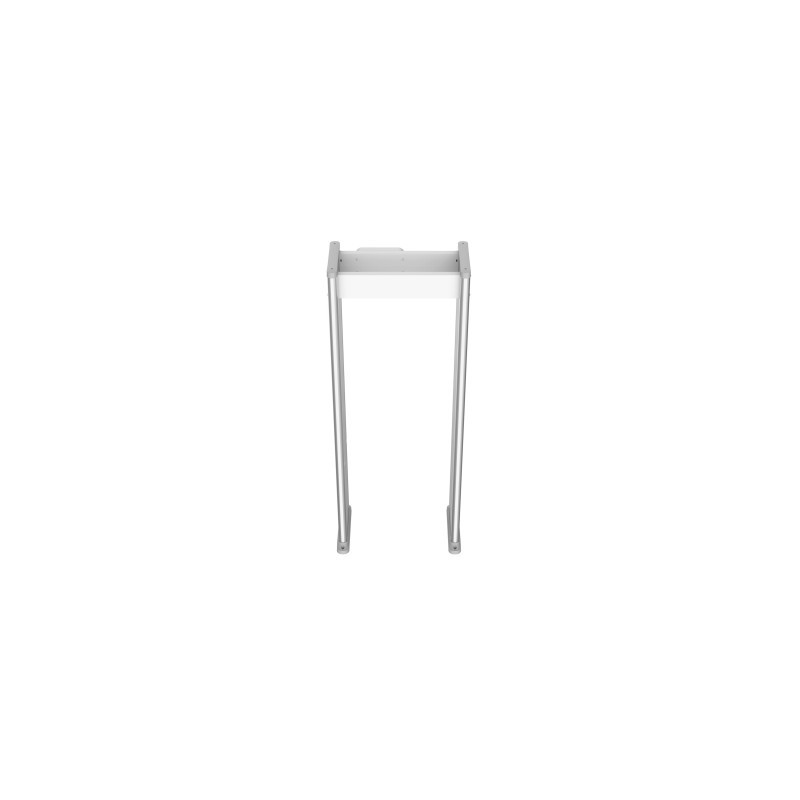

Dahua ISC-D118C
