Description

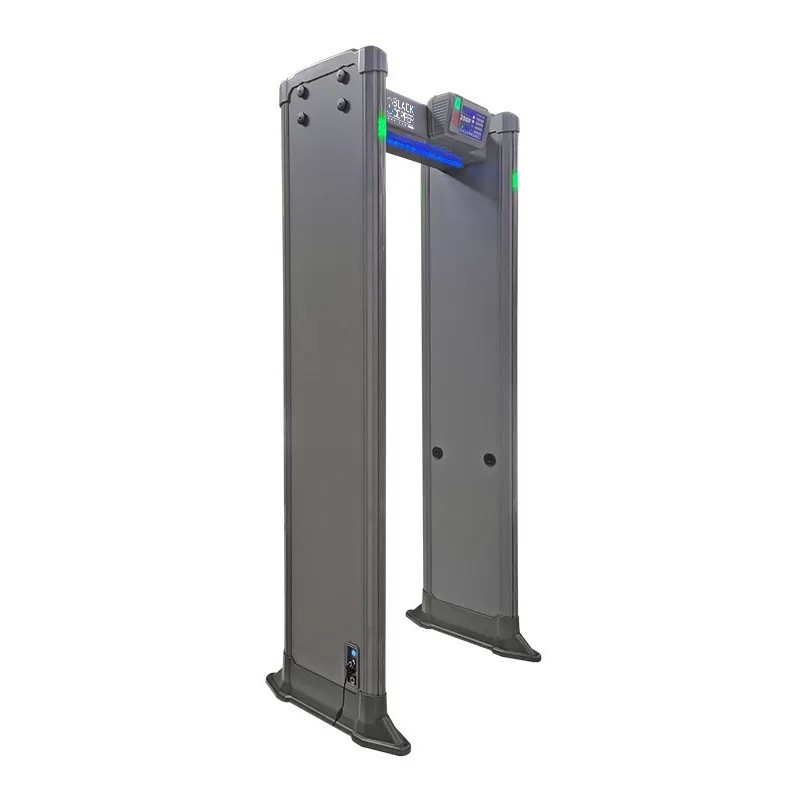

Multi-zone intelligent walk-through metal detector with high performance in the meantime, it have higher sensitivity, light weight、best resistance of interference and perfect stability. This model adopts high strength material, more lighter and convenient transportation and installation. With Fully modular product, assembly on flow line production, so can keep the stability of production. It is easy to operate with Intuitive Interface. So can operate without any training.
Multi-zone intelligent walk-through metal detector is widely used in athletic meeting.conference, school etc. This item is gotten shape patent, and achieve right of software registration, Its detection theory is to use electromagnetic field to detect metal object, and even detect Metal quantity by acousto-optic alarm mode. It consists of the main unit、HF signal generator、infrared sensor. It is most advanced metal detector gate with elegant shape superior detection ability、multi-zone detection, unique operation network system. portable features.

Technology Advantages

• Adaptive system, when system enters into adaptive mode, it can adapt the testing standard.

• The sensitivity of Each detection zone can be adjusted randomly with adaptive technology.

• Can Change the detection zones (customer oneself can convert detection zones easily.

• For Sound、Light alarm, alarm tone, alarm time length, can be change randomly.

• Query function: the system with real-time information query function.

• Detection ability: at least detect 100 persons within one minute.

Specification

• Detection objects: prohibited items, including mobile phones and metal
• Net weight: 69KG; Gross weight: 82KG
• Vertical external dimension: 2245x935x715mm
• Channel size: 2045x710x515mm
• Package size: 2320x790x560mm
• Packaging volume: 0.96m3
• Working humidity: 99%, no condensation
• Working environment: -20℃~85℃
• Power supply mode: the whole series can be equipped with batteries, lasting 4, 8, 16, 24, 48, 72 hours (optional)
• Voltage input: +12V DC (low voltage version)
