  4. Hikvision ISD-SMG318LT-F
Hikvision ISD-SMG318LT-F View larger

Hikvision ISD-SMG318LT-F

ISDSMG318LTF

New product

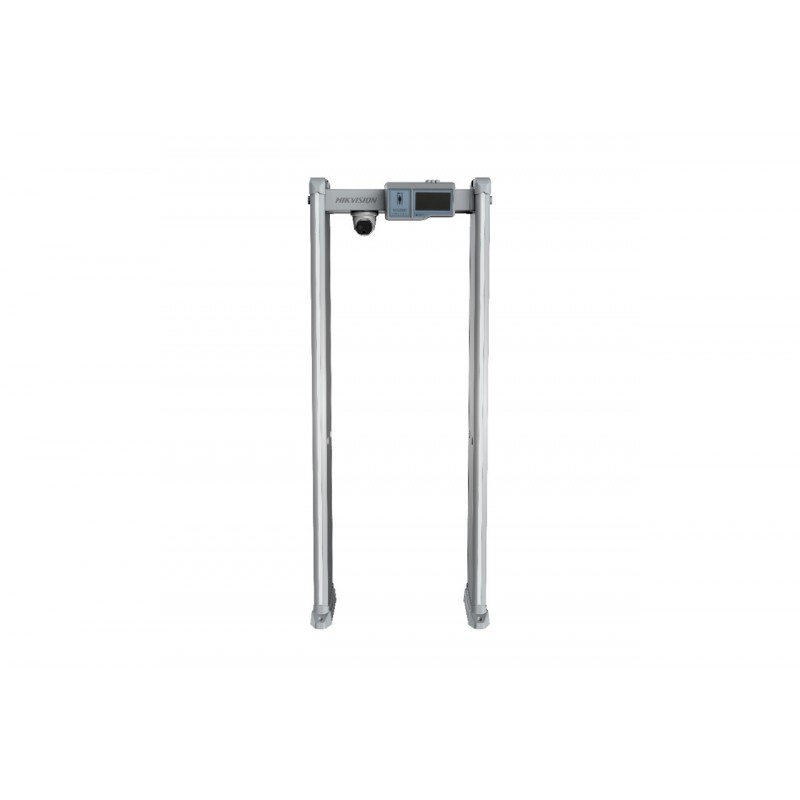

Metal detector with integrated Hikvsion ISD-SMG318LT-F thermal imaging camera

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision ISD-SMG318LT-F Features and Benefits

Features:

Hikvision ISD-SMG318LT-F Description

ISD-SMG318LT-F

  • Temperature exception detection
  • Linkage for audible alarm
  • Uncooled sensor, resolution: 160 x 120
  • Supports dual-light fusion image
  • Supports visible light and thermal imaging frame over lay
  • IP66 protective level
  • Detection accuracy: metal in the size like a clip (or 1/2 clip) is detectable on the middle of the detector. Goods like Belt buckle can be excluded. Copper, aluminum, and zinc (over 150 g) , controlled knife, and gun are detectable
  • Multi-area alarm: Indicates the metal position on the body. Max. 18 areas

Specification

Dimension Parameters

  • Appearance And Dimension:             Detector dimension(without dome camera):2200 x 850 x 480mm (H x W xD) Dome camera dimension :138.3 mm × 138.3 mm × 123.1 mm(H x W x D) Package dimension 2270 x 700 x230mm(H x W x D)

Performance Parameters

  • Power Supply:             110~240VAC，50-60Hz

Communication Protocol

  • Network CommunicationI:             Pv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NT P,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour

General Standard

  • Working Temperature:             Speed dome: 5℃ to 40℃, ＜95% RH Walk-through detector: -20℃ to 85℃, 99%, RH
  • Power Consumption:             <25W
  • Protection Level:             Dome camera: IP66 Walk-through detector: IP53
  • Weight:             50Kg

Thermal Imaging

  • Sensor:             Vanadium oxide uncooled sensor
  • Max. Resolution:             160× 120
  • Pixel Interval:             17μm
  • Response Waveband:             8 to 14μm
  • Lens (Focal Length):             3mm
  • Field Of View:             50°×37.2°
  • Min. Focusing Distance:             0.3m
  • Pseudo Color:             15, white heat, black heat,fusion1, rainbow, fusion2, iron oxide red1, iron oxide red2, puce, color1, color2, ice & fire, rain, red heat, green heat, and dark blue

Visible Light

  • Sensor:             4 MP 1/2.7" Progressive Scan CMOS
  • Resolution:             2688×1520@25fps
  • Min. Illuminance:             0.0018Lux @(F1.6,AGC ON) ,0 Lux with IR
  • Focal Length:             4mm
  • Field Angle:             84.0°×44.8°
  • WDR Range:             120dB
  • IR Distance:             Max. 15 m
  • Temperature Measurement
  • Temperature Exception Detection:             Expert mode: 10 pints, 10 frames, 21 rules on each line
  • Body Temperature Measurement:             AI face detection, multi-target detection
  • Measurement Range:             30 to 45℃
  • Temperature Alarm:             Alarm triggered when the temperature is over the threshold
  • Measurement Accuracy:             No black body:±0.5℃ With black body: ±0.3℃

Compression
:
  • Video Compression:             H.265/H.264/MJPEG
  • H265:             Main Profile
  • H264:             Baseline Profile / Main Profile / High Profile
  • Video Bit Rate:             32 Kbps to 8Mbps
  • Video Standard:             G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate:             64Kbps:(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2)
