Hikvision DS-2CE16U1T-ITF View larger

Hikvision DS-2CE16U1T-ITF

DS2CE16U1TITF

New product

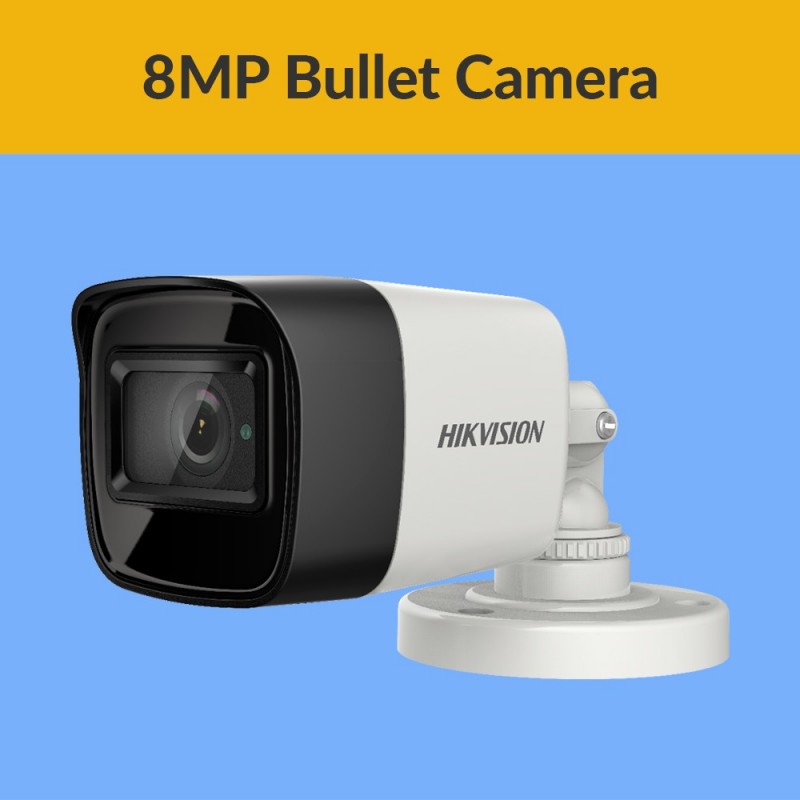

4K Fixed Mini Bullet Camera

  • 8 MP bullet camera
  • EXIR 2.0: advanced infrared technology with 30 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CE16U1T-ITF Features and Benefits

Features:

Hikvision DS-2CE16U1T-ITF Description

Specification

  • Camera
  • Image Sensor: 8.29 megapixel progressive scan CMOS
  • Max. Resolution: 3840 (H) × 2160 (V)
  • Min. Illumination: Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter Time: PAL: 1/12.5 s to 1/50,000 s ,NTSC: 1/15 s to 1/50,000 s
  • Day & Night: IR cut filter
  • Angle Adjustment: Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
  • Signal System: PAL/NTSC
  • Lens
  • Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed lens
  • Focal Length & FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
  • Lens Mount: M16
  • Image
  • Image Settings: Brightness, Sharpness, DNR, Smart IR, HLC
  • Frame Rate: TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps,CVI: 8MP@12.5fps, 8MP@15fps,AHD: 8M@12.5fps, 8M@15fps,CVBS: 960H P/N
  • Day/Night Mode: Auto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR): Digital WDR/ 105 dB
  • Image Enhancement: BLC
  • White Balance: Auto/Manual
  • AGC: Yes
  • Interface
  • Video Output: Switchable TVI/AHD/CVI/CVBS
  • General
  • Material: Metal
  • Dimension: 58 mm × 61 mm × 159.8 mm (2.28" × 2.40" × 6.42") (Approx. 345 g (0.76 lb.)
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
  • Language: English
  • Power Supply: 12 VDC ±25%,*You are recommended to use one power adapter to supply the power for one camera.
  • Consumption: Max. 5.3 W
  • IR Range: Up to 30 m
  • Approval
  • Protection: IP67

Reviews (0)

Download

Hikvision DS-2CE16U1T-ITF

Download Hikvision DS-2CE16U1T-ITF Datasheet

Download (1.21M)
