DS-7116HQHI-K1 View larger

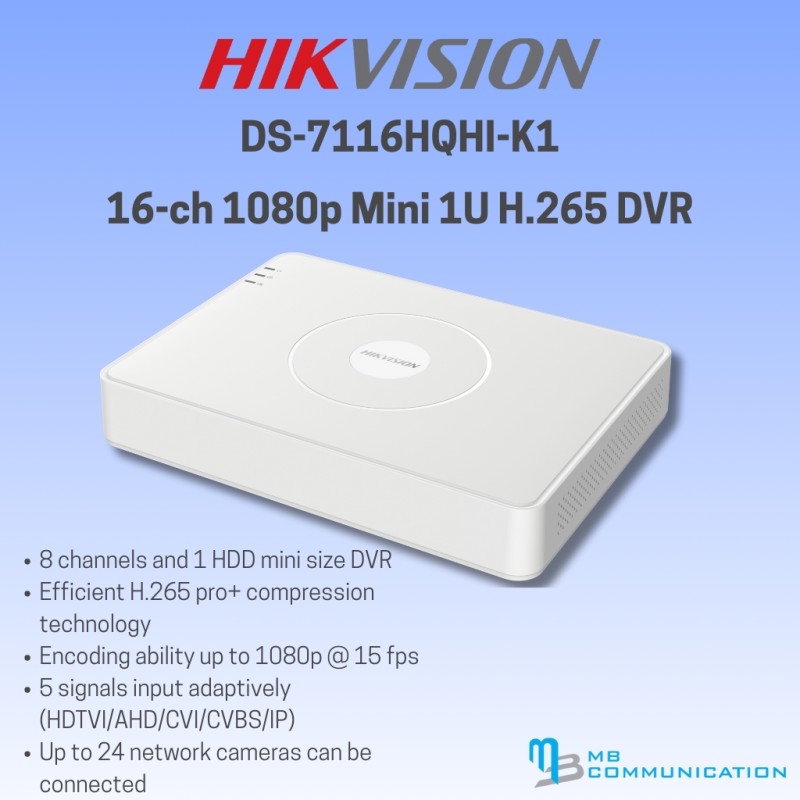

Hikvision DS-7116HQHI-K1

DS7116HQHIK1

New product

Turbo HD DVR

(Support 2MP and 5MP)

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 33,070

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-7116HQHI-K1 Features and Benefits

Features:

Hikvision DS-7116HQHI-K1 Description

Key Feature

  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Audio via coaxial cable
  • Up to 6/12/24-ch IP camera inputs (up to 6 MP)
  • Max. 800 m for 1080p and 1200 m for 720p HDTVI signal
  • Up to 6 TB capacity per HDD

Compression and Recording

  • H.265 Pro+ can improve encoding efficiency and reduce the data storage cost
  • Full channel recording at up to 4 MP lite resolution

Storage and Playback

  • Smart search for efficient playback
  • Support the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Network & Ethernet Access

  • Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
  • Max. 24/48/96 Mbps incoming bandwidth and output bandwidth limit configurable



Specification

Video/Audio Input
Audio Input: 1-ch
Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input: 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types: 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
Note: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.
Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
support CVBS input
Video Input Interface: BNC (1.0 Vp-p, 75Ω)
Audio Compression: G.711u
Audio Input Interface: RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)



Video/Audio Output
HDMI/VGA Output: 1-ch,4K (3840 × 2160)/30Hz,2K(2560 ×1440)/60Hz, 1920 ×1080/60Hz, 1280 ×1024/60 Hz, 1280 ×720/60Hz, 1024 ×768/60 Hz
Recording resolution: When 1080p Lite mode not enabled:
4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled:
4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate: Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15fps;
1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate: 32 Kbps-6 Mbps
Stream Type: Video/Video&Audio
Audio Output: 1-ch RCA(Linear, 1kΩ)
Audio Bit Rate: 64kbps
Dual Stream: Support
Synchronous Playback: 16-ch



Network management
Remote connections: 128
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF



Hard Disk Driver
Interface Type: 1 SATA Interface
Capacity: Up to 6 TB capacity for each disk



External Interface
Network Interface: 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: 2 USB 2.0 Interfaces



General
Power Supply: 12V DC
Consumption: ≤ 15 W(without hard disks)
Working Temperature: -10 oC ~+55 oC (14 oF ~ 131 oF)
Working Humidity: 10% ~ 90%
Chassis: Mini 1U chassis
Dimensions: 285 × 210 × 45 mm
(11.2× 8.3 × 1.8 inch)
Weight: ≤ 1 kg (2.2 lb)
