DS-7104HQHI-K1 View larger

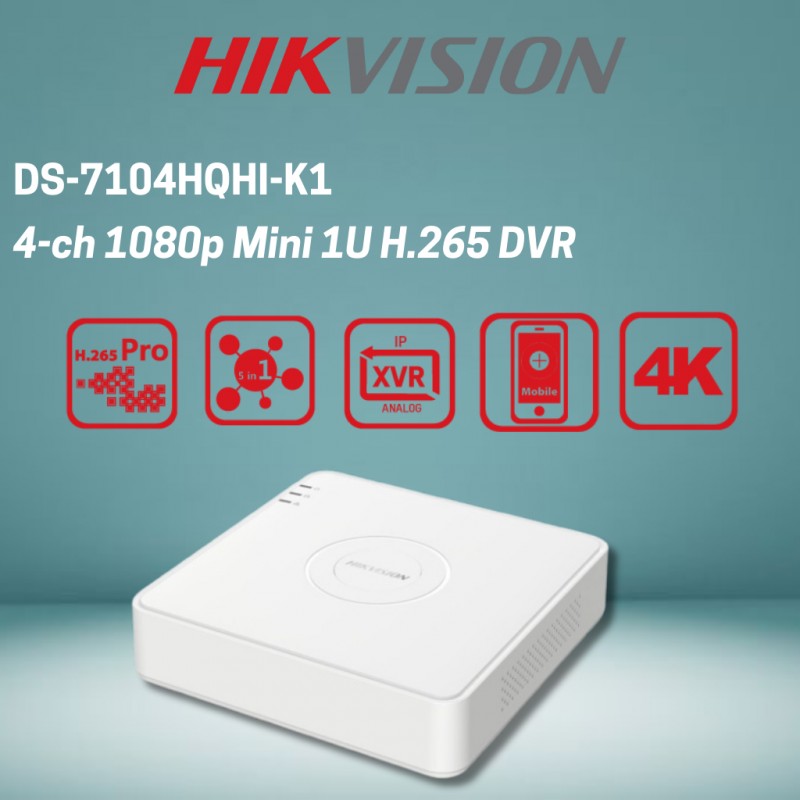

Hikvision DS-7104HQHI-K1

DS7104HQHIK1

New product

4-ch 1080p Mini 1U H.265 DVR

(Support 2MP and 5MP)

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 13,520

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-7104HQHI-K1 Features and Benefits

Features:

Hikvision DS-7104HQHI-K1 Description

4-ch 1080p Mini 1U H.265 DVR

  • 4 channels and 1 HDD mini size DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 6 network cameras can be connected

Specification

Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding ResolutionWhen 1080p Lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
  • Frame RateMain stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps ,(P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
  • Video Bit Rate32 Kbps to 6 Mbps
  • Dual StreamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bit Rate64 Kbps
Video And Audio
  • IP Video Input2-ch (up to 6-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input1080p25, 1080p30, 720p25, 720p30
  • CVBS InputSupport
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous Playback4-ch
  • HDTVI Input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60,*: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.
  • VGA/HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network
  • Remote Connections32
  • Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 6 TB capacity for each disk
  • Alarm In/OutN/A
  • USB InterfaceReal panel: 2 × USB 2.0
General
  • Power Supply12 VDC
  • Consumption (Without HDD)≤ 8 W
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimensions (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
  • Weights (Without HDD)≤ 1 kg (2.2 lb)
