View larger

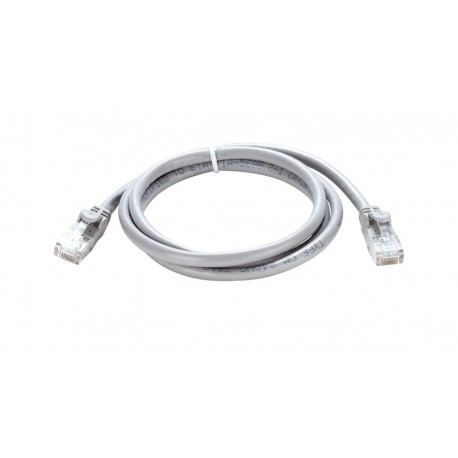

Dlink NCB-C6UGRYR1-3
NCBC6UGRYR13
New product
• 4 Unshielded Twisted Pair (UTP) Cable
• Metal Conductor: made of solid copper
• Color Code: gray
• Patch Cord Cable Length of 3 Meters
• Maximum Data Transmission: 1 Gbps
• 24 AWG Conductor Size
• Insulation Material: HD-PE
• Cable Protective Jacket Material: PVC UL94V-0
In Stock
WhatsApp
More info
Product Information:
Dlink NCB-C6UGRYR1-3 Features and Benefits
Features:
Dlink NCB-C6UGRYR1-3 Description
D-Link provides the best quality twisted-pair cable to transmit data through a local area network (LAN). This cable has passed the performance requirements specified by the TIA / EIA-568B.2, TIA / EIA-568C.2 and IEC 60603-7-4 standards.
Streaming video and multimedia via LAN is increasingly popular, users need faster data transfers and short waiting times. The D-Link cable is ideal for simple, cost-effective and high-speed transmission performance. Supports a higher signal-to-noise ratio, providing better reliability for current applications and higher data rates for future applications.
UTP CAT6 24AWG cable
CAT6 cables reduce crosstalk interference and system noise levels with 24 AWG insulation for copper cables which will increase performance. Can transmit data at 1000 Mbps (~ 1 Gigabit per second) with a frequency of 250 MHz and is suitable for 10BASE-T, Fast Ethernet 100BASE-TX and 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) applications
Certification
- UL 444 (for copper conductors)
- UL 758 Style 2835
- UL 1581 (Test standard)
- Verified TIA / EIA-568C.2 standard by ETL, CUL listed, RoHS
Modular Connector / Plug Specifications
- RJ-45 8P with transparent color
- Gold plated: 30U “
- Contact blade: Phosphor Bronze
- Temperature range: -10 ~ 80oC
- Dielectric voltage withstanding: 500V AC
- Insulation resistance: 35M Ohm (max.)
- Durability: 750 matching cycles
- Cable-to-plug tensile strength: 20lbs (89N) (min.)
- UL applications: 250V AC, 2A (max.)
- Polycarbonate (PC) UL94-V-0
