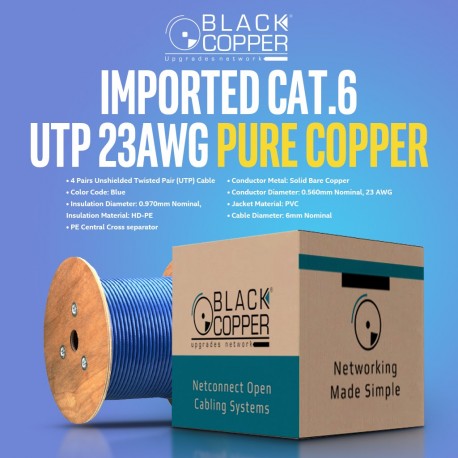

Black Copper Cat6 23AWG Pure Copper View larger

Black Copper Cat6 23AWG Pure Copper

BC23USLNC6

New product

Imported CAT6 UTP Cable (Pure Copper 23AWG)

CAT6 4Pair Unshield Twisted Pair, CM rated, 23AWG, 305m/box, Blue

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 35,360

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Black Copper Cat6 23AWG Pure Copper Features and Benefits

Features:

Black Copper Cat6 23AWG Pure Copper Description

Type of cable 4 pair cables
Cable shielding type UTP
Communication network category 6
Flame retardance CM
Return loss 20.1 dB, at 100 MHz
25 dB, at 20 MHz
21.5 dB, at 62.5 MHz
24.5 dB, at 8 MHz
25 dB, at 10 MHz
24.3 dB, at 25 MHz
23.6 dB, at 31.25 MHz
25 dB, at 16 MHz
23 dB, at 4 MHz
19.4 dB, at 0.772 MHz
20 dB, at 1 MHz
Attenuation 22 dB at 100 MHz, cable length 100 m
1.8 dB at 0.772 MHz, cable length 100 m
4.1 dB at 4 MHz, cable length 100 m
8.2 dB at 16 MHz, cable length 100 m
5.8 dB at 8 MHz, cable length 100 m
11.7 dB at 31.25 MHz, cable length 100 m
10.4 dB at 25 MHz, cable length 100 m
17 dB at 62.5 MHz, cable length 100 m
6.5 dB at 10 MHz, cable length 100 m
9.3 dB at 20 MHz, cable length 100 m
2 dB at 1 MHz, cable length 100 m
Attenuation to crosstalk ratio (ACR) 37 dB at 20 MHz
13 dB at 100 MHz
21 dB at 62.5 MHz
65 dB at 0.772 MHz
46 dB at 8 MHz
34 dB at 25 MHz
31 dB at 31.25 MHz
44 dB at 10 MHz
52 dB at 4 MHz
39 dB at 16 MHz
63 dB at 1 MHz
Power Sum Near End Crosstalk (PS NEXT) 35.4 dB at 62.5 MHz
32.3 dB at 100 MHz
42.8 dB at 20 MHz
62.3 dB at 1 MHz
53.3 dB at 4 MHz
64 dB at 0.772 MHz
39.9 dB at 31.25 MHz
47.3 dB at 10 MHz
44.3 dB at 16 MHz
48.8 dB at 8 MHz
41.3 dB at 25 MHz
Near end crosstalk 38.4 dB at 62.5 MHz
42.9 dB at 31.25 MHz
67 dB at 0.772 MHz
35.3 dB at 100 MHz
51.8 dB at 8 MHz
45.8 dB at 20 MHz
47.3 dB at 16 MHz
44.3 dB at 25 MHz
50.3 dB at 10 MHz
56.3 dB at 4 MHz
65.3 dB at 1 MHz
Input impedance 100 Ohm (+/- 6) at 1...100 MHz
Loop resistance <= 73.2 Ohm/km
Capacitance unbalance 330 pF / 100 m
Resistance unbalance 5 %
Colour tint Blue
Wire insulation material ON
Material conductor Solid bare copper
AWG gauge AWG 23
Temperature resistance 75 °C
Product certifications UL
Cable outer diameter 6 mm
Cable length 305 m
