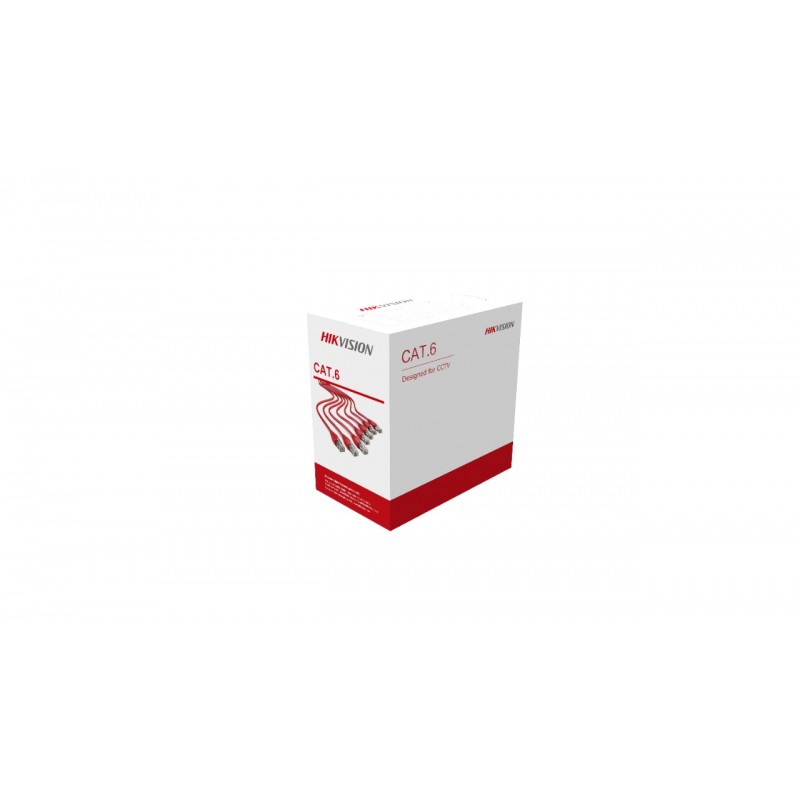

Hikvision DS-1LN6U-G
DS1LN6UG
New product
305 m CAT6 UTP Network Cable (Solid Copper, 0.55 mm, Gray) Popular
- Full diameter 305 m CAT6 network cable
- Core diameter: 0.55mm
- Excellent transmission performance using solid copper
- Quality verified by Fluke test
- Guaranteed long PoE transmission distance
- Great PVC flame resistance.
This product is no longer in stock
WhatsApp
Rating:
Be the first to write a review!
More info
Product Information:
Hikvision DS-1LN6U-G Features and Benefits
Features:
Hikvision DS-1LN6U-G Description
305 m CAT6 UTP Network Cable (Solid Copper, 0.55 mm, Gray) Popular
- Full diameter 305 m CAT6 network cable
- Core diameter: 0.55mm
- Excellent transmission performance using solid copper
- Quality verified by Fluke test
- Guaranteed long PoE transmission distance
- Great PVC flame resistance.
Specification
- Accessories
- CategoryCat.6
- Steath PrintingHIKVISION 4PR 23AWG 75℃ U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
- Reference StandardISO/IEC11801,ANSI/TIA-568-C.2,RoHS 2.0
- Fire ResistanceNo
- ConductorSolid-Bare Copper (99.95%);0.55±0.005 mm，23 AWG
- InsulationHDPE;0.98±0.05 mm
- Rip-CordYes
- SeparatorYes
- Sheath Physical Properties
- Before AgingTensile strength ≥ 13.5 Mpa;Elongation ≥ 150%
- Aging Period100 ℃ × 24h × 10d
- After AgingTensile strength ≥ 12.5Mpa;Elongation ≥ 125%
- Cold Bend-20 ± 2℃ × 4h，8 × cable O.D,no visible cracks
- Electrical Characteristics(20℃)
- 1.0-250.0 MHz Impedance100 ± 15Ω @ ≤ 100MHz；100 ± 25Ω @ 100-250MHz
- 1.0-250.0 Mhz Delay Skew≤ 45 ns/100 m
- DC Resistance≤ 9.38 Ω/100 m
- DC Conductor Resistance Unbalance≤ 5.0 %
- Package Dimension400 mm (W) × 400 mm (H) × 240 mm (D)(15.75″ × 15.75″ × 9.45″)
- 12.3 ± 0.5kg
- Cable Length(305 ±1.5) m
- Ambient Temperature-20 ℃ to 75 ℃ (-4℉ to 167℉)
- Operating Voltage60 V
- Sheath
- Thickness0.5±0.10 mm
- MaterialPVC
- ColorGrey
- Diameter6.00±0.30 mm
