Specifications

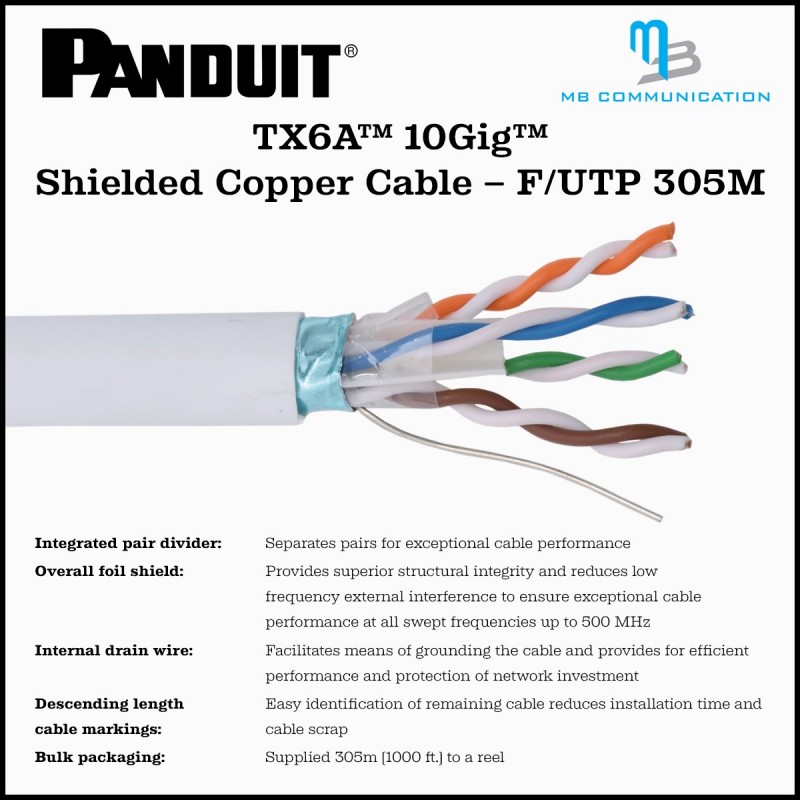

Category 6A cable shall be constructed of 23 AWG copper conductors with PE CM, CMR or LSZH insulation. The copper conductors shall be twisted in pairs and separated by an integrated pair separator. All four pairs shall be surrounded by an overall metallic foil shield within a low smoke zero halogen jacket. The TX6A™ 10Gig™ Shielded Copper Cable must be installed as part of a complete TX6A™ 10Gig™ Shielded Copper Cabling System to achieve 10GBASE-T certified performance.

Technical information

Electrical performance:

Certified channel performance in a 4-connector configuration up to 100 meters and exceeds the requirements of ISO 11801 Class EA and ANSI/TIA-568-C.2 Category 6A standards for supporting 10GBASE-T transmission over twisted-pair cabling systems as part of the Panduit® TX6A™ 10Gig™ Shielded Copper Cabling System
Certified component performance up to 100 meters and meets or
exceeds the component requirement of the ISO/IEC 11801 Category
6A and ANSI/TIA-568-C.2 Category 6A standards for supporting 10GBASE-T transmission over twisted-pair cabling systems

Conductors/insulators:

23 AWG solid bare copper wire covered by PE insulation

Flame rating:

LSZH: IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 601034-2,
EN 50575:
Euroclass Dca - s2, d2, a1
CM: UL 1685
CMR: UL 1666
CMP: NFPA 262

Standards Compliance:

UL Listed CMP-LP 0.7A and CMR-LP 0.5A

Installation tension:

110 N (25 lbf) maximum

PoE compliance:

Meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications

Temperature rating:

-4°F to 167°F (-20°C to 75°C)
Installation (Operation)

Cable jacket:

LSZH, CM, CMR, CMP

Cable diameter:

LSZH: 7.3mm (0.287 in.) nominal
CM, CMR: 7.2mm (0.284 in.) nominal
CMP: 7.5mm (0.296 in.) nominal

Cable weight:

LSZH: 16 kg/305m (35 lbs./1000 ft.)
CM, CMR: 15 kg/305m (33 lbs./1000 ft.)
CMP: 19 kg/305m (42 lbs./1000 ft.)

Packaging:

LSZH: 18 kg/ 305m (40 lbs./1000 ft.) on a reel
CM, CMR: 17 kg/ 305m (37 lbs./1000 ft.) on a reel
CMP: 20 kg/305m (46 lbs./1000 ft.)
Packaged tested to ISTA Procedure 1A

key features and benefits

Integrated pair divider:

Separates pairs for exceptional cable performance.

Overall foil shield:

Provides superior structural integrity and reduces low frequency external interference to ensure exceptional cable
performance at all swept frequencies up to 500 MHz.

Internal drain wire:

Facilitates means of grounding the cable and provides for efficient performance and protection of network investment. Descending length Easy identification of remaining cable reduces installation time and.

cable markings:

cable scrap.

Bulk packaging:

Supplied 305m (1000 ft.) to a reel.
