Panduit PSL7004GR-CED View larger

Panduit PSL7004GR-CED

PSL7004GRCED

New product

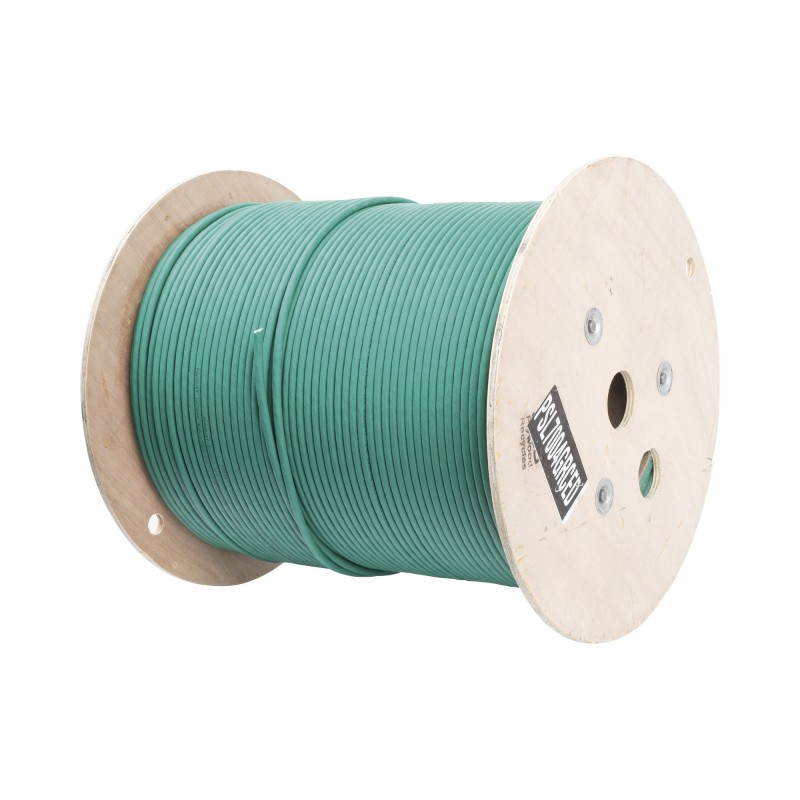

TX7000TM Category 7 Shielded S/FTP Copper Cable 500Meter - Green
Category 7 cable shall meet the IEC 61156-5 Class F component standard. The conductors shall be 23 AWG construction with foamed skin PE insulation. The copper conductors shall be twisted in pairs each covered by a foil shield within an overall braided shield and a low smoke zero halogen (LSZH) jacket.

More details

In Stock

Whatsapp MB WhatsApp

Rs 145,600

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Panduit PSL7004GR-CED Features and Benefits

Features:

Panduit PSL7004GR-CED Description

Applications:

  • High Speed ​​Voice/Data and Video Networks
  • IP Megapixel CCTV Installations
  • Wireless networks
  • Power Over Ethernet IEEE 802.3af and 802.3at Applications
  • Applications in 10BASE-T 100BASE-T 1000BASE-T and 10GBASE-T

Technical information:

  • Performance: Certified up to 100 meters
  • Green color
  • Nominal diameter: 7.2mm
  • Conductor: 23 AWG solid copper
  • Coating: LSZH and shielded pairs with aluminum and polyester
  • Construction: S/FTP
  • Maximum tension: 110N
  • Temperature rating: 0 to 50°C in installation and -20 to 75°C in operation.
  • Frequency: 600MHz
