• SPACE SAVING SIMPLICITY

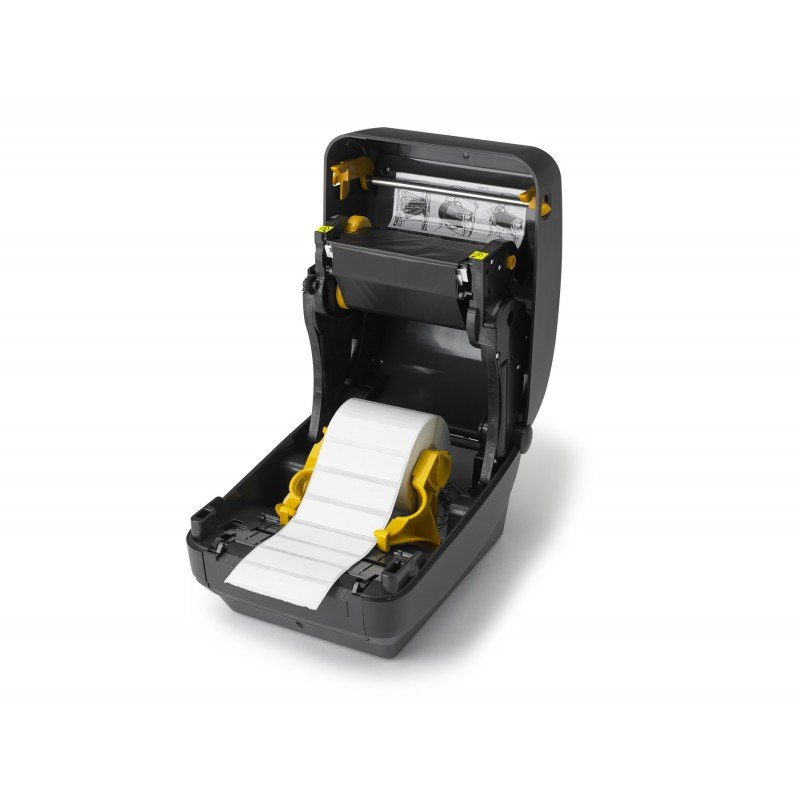

• Designed for applications where space is at a premium, the compact ZD500R offers simple, one-touch printing and encoding, straightforward loading, and automatic RFID calibration, making it ideal for applications where technical support staff is not available, such as retail in-store exception tagging.

• POWERFUL RFID FEATURES

• The printer supports both direct thermal and thermal transfer printing and is compatible with inlays from all leading suppliers. The ZD500R can be used with a variety of RFID labels and tags from small, item-level hang tags to large case and pallet labels. By encoding RFID inlays that are spaced closer together, the ZD500R enables lower media costs, less media waste and fewer roll changes.

• FUTURE PROOFED FOR TOMORROW APPLICATIONS

• Since it is built with the same innovative technology as Zebra industry-leading RFID printer/encoders, existing applications can be easily adapted for use with the ZD500R. The ZD500R supports next generation inlays and offers 802.11 a/b/g/n wireless and Bluetooth® connectivity.

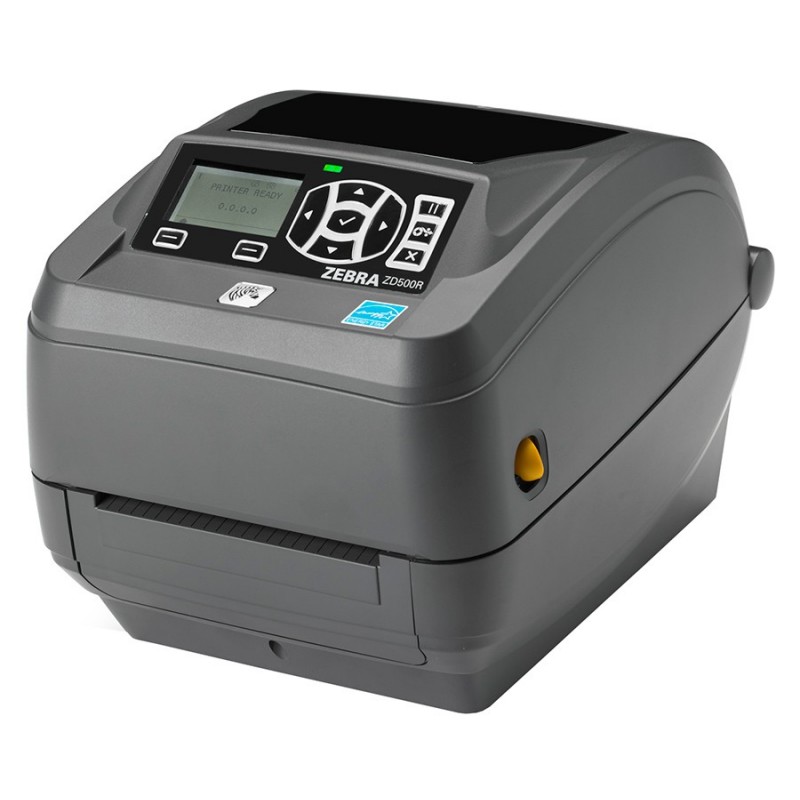

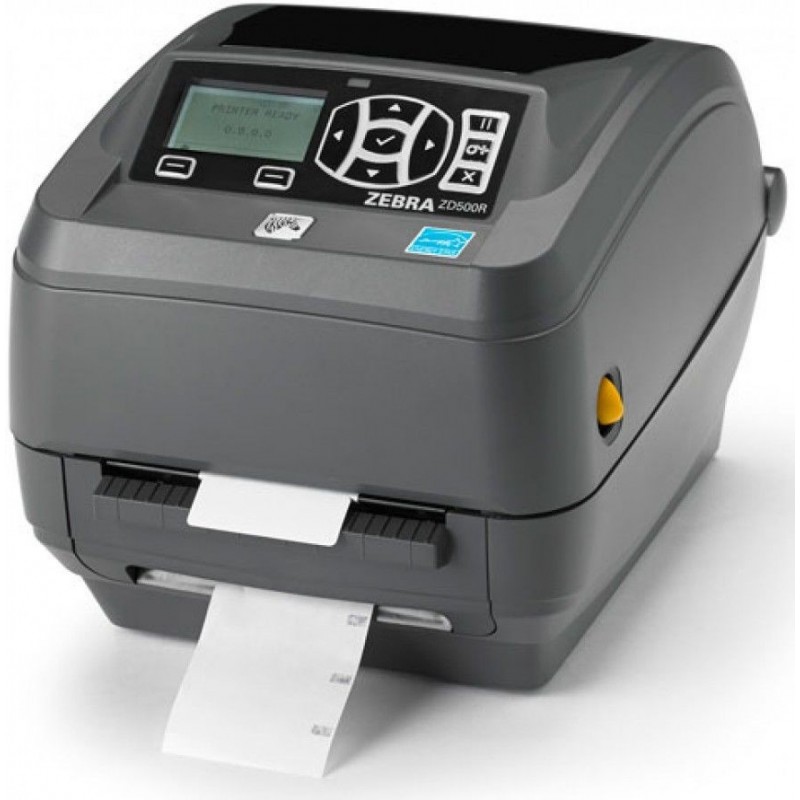

ZD500R RFID Printer

Bring UHF RFID printing to your desktop. This small, easy-to-use printer delivers advanced features in a compact footprint for convenient, simple operation.

Specification

• Print Width

  4.09 in./104 mm



• Print Resolution

  203 dpi/8 dots per mm

  300 dpi/12 dots per mm (optional)



• Maximum Print Speed

  6 in./152 mm per second (200 dpi)

  4 in./102 mm per second (300 dpi)



• Media Sensors

  Multi-position gap and movable black-line media sensors



• Communication Methods

  RS-232 auto-sensing Serial interface, DB-9 (standard)

  USB V2.0, bi-directional (standard)

  Centronics® Parallel (standard)

  Ethernet—10/100 internal (standard)

  Wireless—802.11 a/b/g/n and Bluetooth 3.0 (optional)
