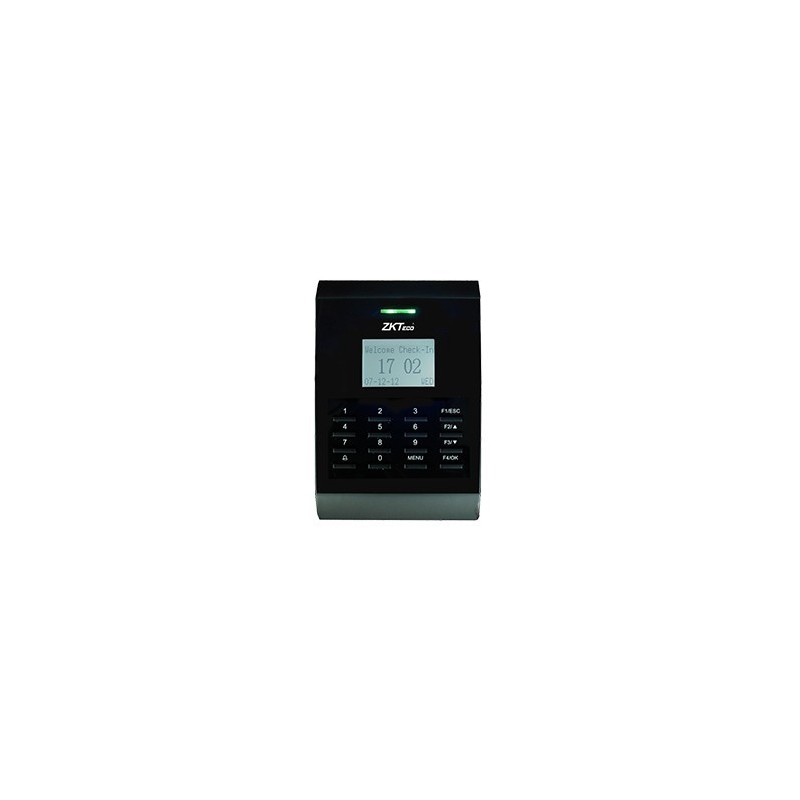

ZKTeco SC403
SC403
New product
RFID Access Control
- Elegant Design
- Wiegand Input & Output
- Speed & Accuracy
SC403 is an access control device produced by ZKTeco, which is made with elegant design and professional surface treatment. The device has lock control, alarm, exit button, and door sensor.
This product is no longer in stock
More info
Product Information:
ZKTeco SC403 Features and Benefits
Features:
ZKTeco SC403 Description
Overview
SC403 is an access control device produced by ZKTeco, which is made with elegant design and professional surface treatment. The device has lock control, alarm, exit button, and door sensor.
The Wiegand-in interface is used to connect an external reader to construct a master-slave system.
Also, the device can be used to connect to a control panel as a reader by the Wiegand-out interface.
The operation can be done on the device through the LCD display. It can also be done on PC software and uploaded to the device via TCP/IP, RS232/485 communication.
The USB-host is used for data download and upload, including user templates and records, etc.
SC403 is suitable for house, small office and factory etc.
Function
- Tough casing design
- Easy installation, safe and reliable
- Simple and convenient operation method
- Standard ID card, Mifare card optional.
- Full door lock control system
- Wiegand out to connect with control panel
- Wiegand in to construct master and slave system
- Audio prompt and LED feedback guide the user to operate
Specification
| ID card Capacity | 30,000 |
| Transaction Capacity | 50,000 |
| Communication |
TCP/IP, RS232/485, USB-Host |
| Access Control Interface for |
3rd party electric lock, door sensor, exit button, alarm, Door Bell |
| Wiegand Signal | Output & Input |
| Standard Functions | Anti-passback, SMS. |
| Optional Functions | Mifare, HID, Workcode, and Webserver. |
| Display |
LCD |
| Power Supply | 12V DC |
| Operating Temperature | 0 ℃- 45 ℃ |
| Operating Humidity | 20%-80% |
| Dimension (L*W*H) | 143x95.5x39.5mm |
| Gross Weight | 0.8KG |
