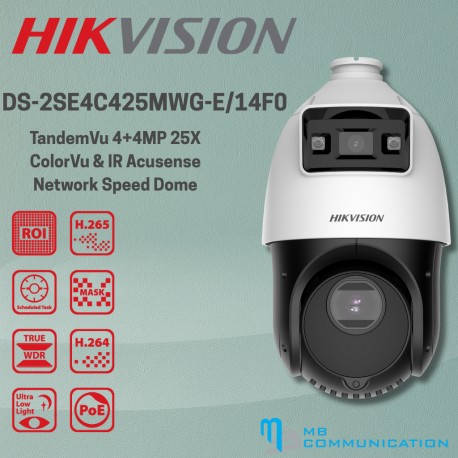

TandemVu 4-inch 4 MP 25X Colorful & IR Network Speed Dome

• Captures a large area and great details at the same time
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
• Secures an expansive area with 25× optical zoom and 16× digital zoom
• Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
• Expansive night view with up to 100 m IR distance & 30 m white light
• Supports 12V DC & PoE+
• Focuses on human and vehicle targets classification based on deep learning

Specifications

Camera

• Image Sensor: [Bullet channel]: 1/3" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
• Min. Illumination

[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR

• Shutter Speed: 1 s to 1/30,000 s
• Slow Shutter: yes
• Focus: semi-auto;manual;auto
• Day & Night: ICR
• Zoom: [PTZ channel] 25 × optical, 16 × digital
• Day/Night Switch: day, night, auto, scheduled-switch
• White Balance: MWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB
• Max. Resolution: [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440

Lens

• Focal Length: [Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
• Zoom Speed: [PTZ channel]: approx. 3.6 s
• FOV

[Bullet channel]: Horizontal field of view: 96.1°, Vertical field of view: 52.1°，Diagonal field of view: 113.3°;

[PTZ channel]:

Horizontal field of view: 55° to 2.4° (wide-tele),

Vertical field of view: 33° to 1.4° (wide-tele),

Diagonal field of view: 61.5° to 2.8° (wide-tele)

• Aperture: [Bullet channel]: F1.0; [PTZ channel]: F1.6

Illuminator

• Supplement Light Type: [PTZ channel]: IR; [Bullet channel]: White Light
• Smart Supplement Light: Yes
• Supplement Light Range: [PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m

PTZ

• Movement Range (Pan): 360°
• Movement Range (Tilt): -15° to 90° (auto flip)
• Pan Speed: pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
• Tilt Speed: tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Zoom: yes
• Presets: 300
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans
• Power-Off Memory: yes
• Park Action: preset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
• 3D Positioning: yes
• PTZ Status Display: yes
• Preset Freezing: yes
• Scheduled Task: preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
• Exception Detection: IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot

Video

• Region Of Interest (ROI): 8 fixed regions for each stream
• Stream Type: main stream;sub-stream;third stream
• Main Stream

[Bullet channel]:

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

[PTZ channel]:

50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

[Bullet channel]:

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

[PTZ channel]:

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

[Bullet channel]:

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

[PTZ channel]:

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Video Compression: H.265;H.264;MJPEG
• Video Bit Rate: 32 kbps to 16384 kbps
• H.264 Type: baseline profile;main profile;high profile
• H.265 Type: main profile
• H.264+: yes
• H.265+: yes
• SVC: yes

Audio

• Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
• Audio Bit Rate: 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz,16 kHz,32 kHz,48 kHz
• Environment Noise Filtering: yes

Smart Features

• Smart Record: ANR;Dual-VCA

Network

• API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• Network Storage: NAS (NFS, SMB/ CIFS); ANR
• Protocols: IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour;WebSocket;WebSockets
• Simultaneous Live View: 20
• User/Host: 32
• Security Measures: Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
• Client: iVMS-4200;Hik-Connect
• Web Browser: IE 10+, Chrome 57+, Firefox 52+, Safari 12+


• Image Settings: sharpness, saturation, brightness, contrast
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Defog: Digital defog
• Image Stabilization: EIS
• Image Enhancement: BLC,HLC,3D DNR
• Regional Focus: Yes
• Regional Exposure: Yes
• Image Parameters Switch: Yes
• Privacy Mask: [Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

Interface

• Communication Interface: RJ45, self-adaptive 10M/100M Ethernet port
• On-Board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
• Alarm Input: 1 alarm input
• Alarm Output: 1 alarm output
• Audio Input: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
• Audio Output: 1 audio output, line level, impedance: 600 Ω

Event

• Basic Event: [PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
• Smart Event: [PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
• Linkage: [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

• Face Capture: [Bullet channel] no,[PTZ channel] yes

General

• General Function: mirror,password protection,watermark,IP address filter
• Power: 12VDC, PoE+
• Power Consumption And Current: Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
• Operating Conditions: -30℃ to 65℃ (-22°F to 149°F) ;humidity lower than 90%RH
• Reset: yes
• Demist: Demist by heating the glass
• Material: ADC12
• Dimensions: Ø 166 mm × 375 mm (Ø 6.5" × 14.7")
• Weight: Approx. 2.4 kg (13.2 lb.)

Approval

• Protection: IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
