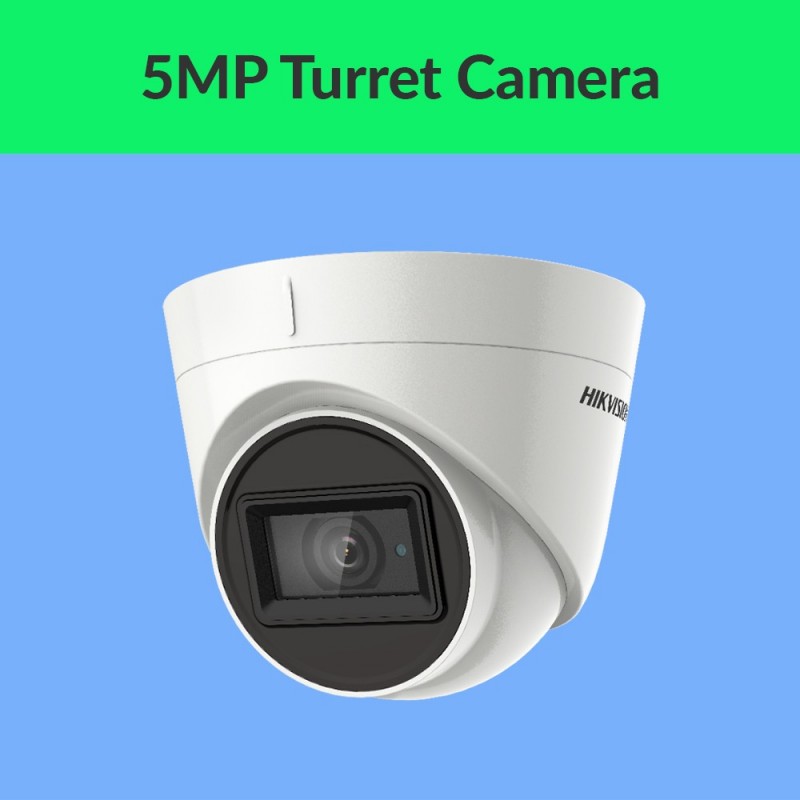

5 MP Ultra Low Light Fixed Turret Camera

• 5 MP High Performance Turret Camera
• Strong night performance, capturing images in ultra-low light down to 0.003 lux
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• EXIR 2.0: advanced infrared technology with 60 m IR distance
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Specification

• Camera
• Image Sensor: 5 megapixel progressive scan CMOS
• Max. Resolution: 2560 (H) × 1944 (V)
• Min. Illumination: Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50,000 s ,NTSC: 1/30 s to 1/50,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
• Signal System: PAL/NTSC

• Lens
• Lens Type: 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
• Focal Length & FOV: 98° (2.8 mm), 78° (3.6 mm), 48° (6 mm), 37° (8 mm), 23° (12 mm)
• Lens Mount: M12

• Image
• Image Settings: Brightness, Sharpness, 3D DNR, Mirror, Smart IR
• Frame Rate: TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps,AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps,CVI: 4 MP@25fps, 4 MP@30fps,CVBS: PAL, NTSC
• Day/Night Mode: Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR): ≥ 130 dB
• Image Enhancement: BLC
• Privacy Mask: 4 programmable privacy masks
• Noise Reduction: Level 1 to 9
• White Balance: Auto/Manual
• AGC: Yes

• Interface
• Video Output: Switchable TVI/AHD/CVI/CVBS

• Event
• Motion Detection: 4 programmable areas

• General
• Material: Enclosure: Plastic,Main body: Metal
• Dimension: Φ 109.82 mm × 91.03 mm (Φ 4.32" × 3.6") (Approx. 310 g (0.68 lb.)
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
• Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
• Language: English
• Power Supply: 12 VDC ±25%, *You are recommended to use one power adapter to supply the power for one camera.
• Consumption: Max. 5.8 W
• IR Range: Up to 60 m

• Approval
• Protection: IP67
