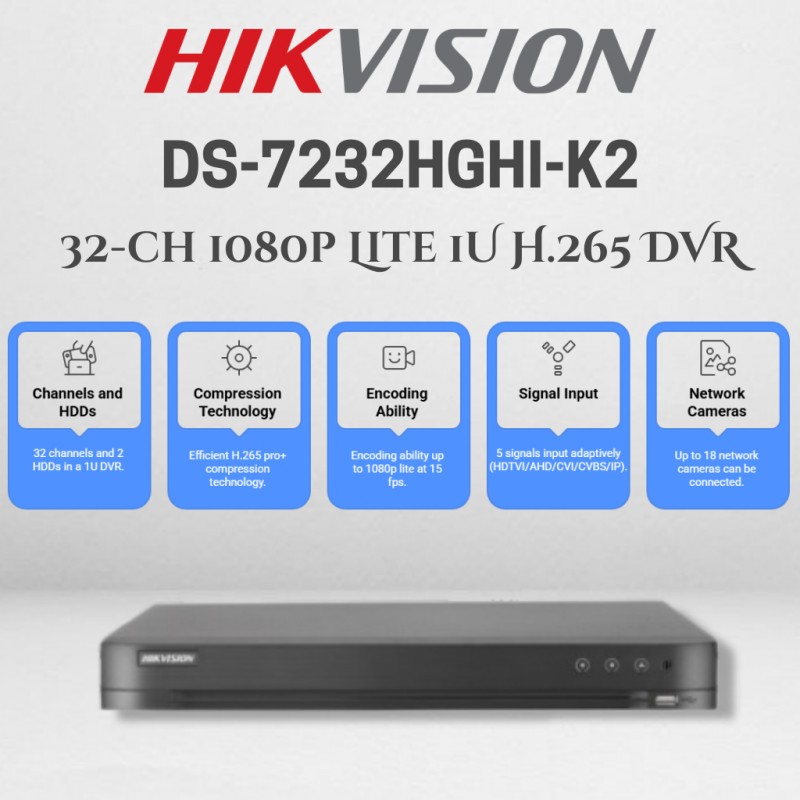

Specification

• Recording
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution: 1080p lite/720p/VGA/WD1/4CIF/CIF
• Frame Rate

  Main stream:

  For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N).

  For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)

  For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  Sub-stream:

  For 1080p and 720p stream access: CIF/QVGA@15fps

  For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)

• Video Bitrate: 32 Kbps to 4 Mbps
• Dual-Stream: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

• Video And Audio
• IP Video Input

  2-ch (up to 18-ch)

  Up to 5MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  32-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input: 1080p25, 1080p30, 720p25, 720p30.

• AHD Input: 1080p25, 1080p30, 720p25, 720p30.

• HDCVI Input: 1080p25, 1080p30, 720p25, 720p30.

• CVBS Input: PAL/NTSC
• HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz.

• VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz.

• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω).

• Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ).

• Audio Output: 1-ch, RCA (Linear, 1 KΩ).

• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input).

• Synchronous Playback: 16-ch

• Network
• Remote Connection: 128
• Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface: 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface.


• Auxiliary Interface
• SATA: 2, SATA interface.

• Capacity: Up to 10 TB capacity for each disk
• USB Interface

  Front panel: 1 × USB 2.0.

  Rear panel: 1 × USB 3.0.

• General
• Power Supply: 12 VDC, 3.2 A.

• Consumption: ≤ 18 W.

• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F).

• Working Humidity: 10% to 90%.

• Dimension (W × D × H): 380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch).

• ≤ 2.2 kg (4.9 lb).
