View larger

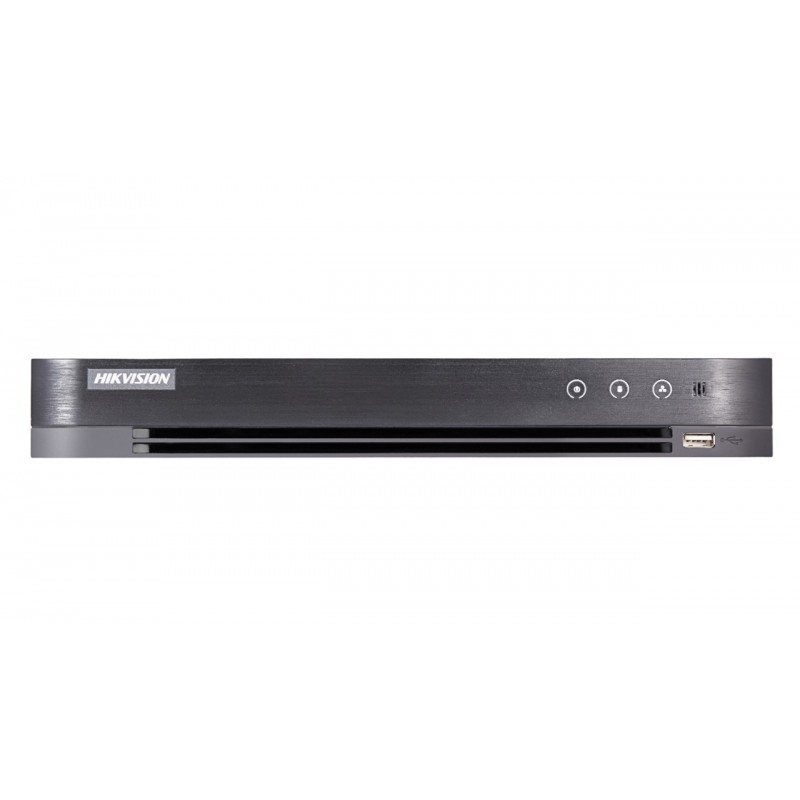

Hikvision DS-7204HUHI-K1-P
DS7204HUHIK1P
New product
4-ch, 5 MP, 1U H.265 PoC DVR
- 4 channels, and 1 HDD, 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP).
- Up to 8 network cameras can be connected
- Transmits both HDTVI video and power over the same coaxial cable.
This product is no longer in stock
WhatsApp
Rating:
Be the first to write a review!
More info
Product Information:
Hikvision DS-7204HUHI-K1-P Features and Benefits
Features:
Hikvision DS-7204HUHI-K1-P Description
Specification
- Recording
- Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution: 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/,CIF,.
- Frame Rate: Main stream: 8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps, 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N), *: 8 MP@8fps is only available for channel 1 of DS-7204HUHI-K1/P., Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N),.
- Video Bit Rate: 32 Kbps to 10 Mbps.
- Dual Stream: Support.
- Stream Type: Video, Video & Audio.
- Audio Compression: G.711u.
- Audio Bit Rate: 64 Kbps.
- Video And Audio
- IP Video Input: 4-ch (up to 8-ch); Up to 8 MP resolution, *: The 8 MP signal input is only available for channel 1 of DS-7204HUHI-K1/P., Support H.265+/H.265/H.264+/H.264 IP cameras.
- Analog Video Input: 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection.
- AHD Input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30.
- HDCVI Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30.
- CVBS Input: PAL/NTSC.
- HDMI/VGA Output: 1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz.
- Audio Input: 4-ch, RCA (2.0 Vp-p, 1 KΩ).
- Audio Output: 1-ch, RCA (Linear, 1 KΩ).
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input).
- Synchronous Playback: 4-ch.
- HDTVI Input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25.
- VGA/HDMI Output: 1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz.
- PoC Camera Input: Support Hikvision PoC camera, *: PoC access capability see Appendix,.
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480.
- Network
- Remote Connections: 32.
- Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF.
- Network Interface: 1, RJ45 10M/100M, self-adaptive, Ethernet interface.
- Auxiliary Interface
- SATA: 1 SATA interface.
- Capacity: Up to 10 TB capacity for each disk.
- Alarm In/Out: 4/1.
- USB Interface: 2 × USB 2.0.
- Serial Interface: RS-485 (half-duplex).
- General
- Power Supply: 48 VDC.
- Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F).
- Working Humidity: 10% to 90%.
- Dimensions (W × D × H): 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch).
- Weights (Without HDD): ≤ 1.5 kg (3.3 lb).
- Consumption (Without HDD): ≤ 40 W.
