  6. Hikvision DS-7332HUHI-K4
DS-7332HUHI-K4 View larger

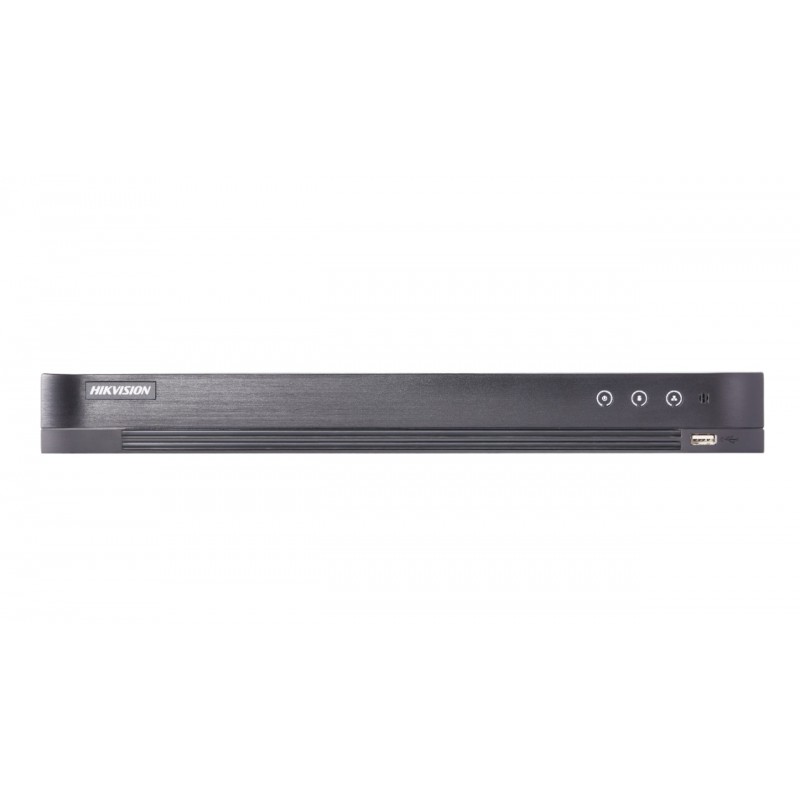

Hikvision DS-7332HUHI-K4

DS7332HUHIK4

New product

32-ch 5 MP 1.5U H.265 DVR

(Support 5MP and 8MP)

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-7332HUHI-K4 Features and Benefits

Features:

Hikvision DS-7332HUHI-K4 Description

32-ch 5 MP 1.5U H.265 DVR

  • 32 channels and 4 HDDs 1.5U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 48 network cameras can be connected
  • Supports POS triggered recording and POS information overlay
  • Supports RAID mode for even more reliable data storage, effectively avoiding data loss risks

Specification

Analog Video Input
  • Analog Video Input:  32-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input:  8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
  • AHD Input:  5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input:  4 MP, 1080p25, 1080p30, 720p25, 720p30
  • CVBS Input:  PAL/NTSC
  • CVBS Output:  1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • HDMI1/VGA Output:  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI2 Output:  1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio Input:  4-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output:  1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio:  1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
  • Synchronous Playback:  16-ch
Recording
  • Video Compression:  H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution:  8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame Rate:  Main stream:,8 MP@8fps/5 MP@12fps; 4 MP@15fps; 3 MP@18fps;,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream:,WD1/4CIF/CIF@25fps (P)/30fps (N),
  • Video Bit Rate:  32 Kbps to 6 Mbps
  • Dual StreamSupport
  • Stream Type:  Video, Video & Audio
  • Audio Compression:  G.711u
  • Audio Bit Rate:  64 Kbps
Video And Audio
  • IP Video Input:  16-ch (up to 48-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
Network
  • Remote Connections:  128
  • Network Protocols:  TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
  • Network Interface:  2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
  • SATA:  4 SATA interfaces
  • Capacity:  Up to 10 TB capacity for each disk
  • Alarm In/Out:  16/4
  • USB Interface:  Front panel: 2 × USB 2.0,Rear panel: 1 × USB 3.0,
  • Serial Interface:  RS-232, RS-485 (full-duplex), Keyboard
  • ESATA:  Support
General
  • Power Supply:  100 to 240 VAC
  • Consumption (Without HDD):  ≤ 74 W
  • Working Temperature:  -10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity:  10% to 90%
  • Dimensions (W × D × H):  440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)
  • Weights (Without HDD):  ≤ 7 kg (15.4 lb)
