DS-7208HQHI-K1 View larger

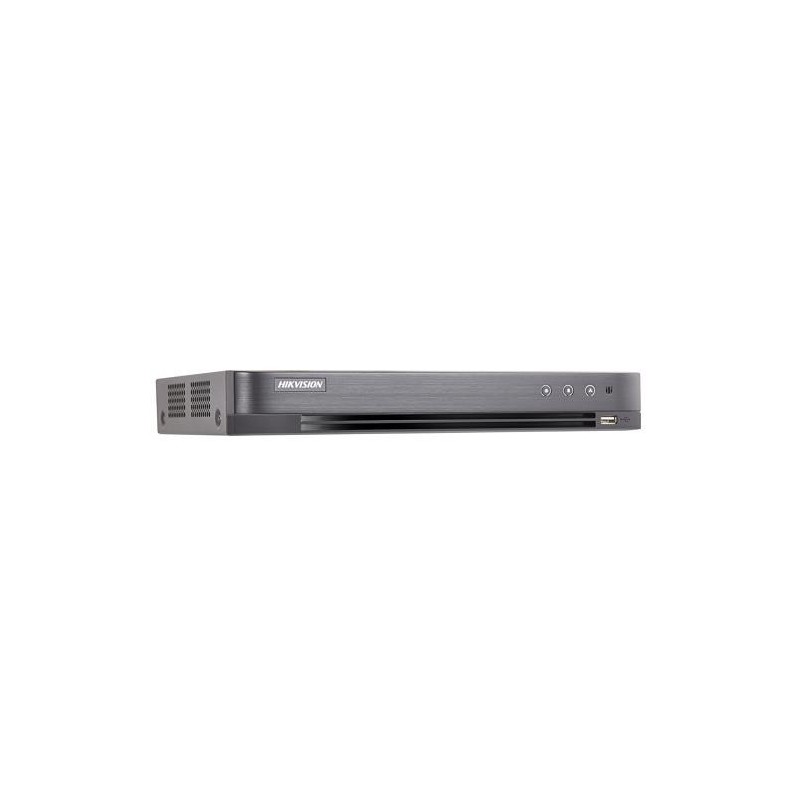

Hikvision DS-7208HQHI-K1

DS7208HQHIK1

New product

TURBO HD DVR

(Support 2MP and 5MP)

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 11,500

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-7208HQHI-K1 Features and Benefits

Features:

Hikvision DS-7208HQHI-K1 Description

Key features:

  • HD-TVI: 1080p and 720p recording resolution at 15 fps, WD1 and lower resolutions at 25 fps
  • AHD, HD-CVI: 2 MP recording resolution at 15 fps
  • Channel 1 and 2 also support 3MP recording resolution at 15 fps
  • 1080p lite recording mode: 960x1080 at 25 fps
  • Support for 8 HD-TVI, AHD, HD-CVI or CVBS cameras and two IP cameras (max. 4 MP, from Hikvision or compliant with Onvif)
  • H265 and H.265+ video compression
  • Management via IE browser
  • Channel 0 - possibility to monitor all cameras with minimum demand for network bandwidth
  • Parallel operation of HDMI and VGA outputs up to 1920 x 1080 pixels
  • CVBS video output
  • Searching recordings by alarm events
  • VCA - Video Content Analysis function
  • Digital zooming during live monitoring and playback
  • Synchronous playback from 8 channels
  • Support for IPv4, IPv6,
  • Monitoring the statuses of LAN, cameras, hard drives
Specifications:

Name/model DS-7208HQHI-K1
Code M75606
Video formats HD-TVIAHD, CVBS, IP
Video inputs 8x BNC + LAN (two IP channels)
Video outputs HDMI, VGA, CVBS
HDMI/VGA resolutions 1080p: 1920x1080
SXGA: 1280x1024
720p: 1280x720
XGA 1024x768
Audio input / output connectors RCA 1 / 1
Alarm inputs / outputs -
Alarms and exceptions Motion detection, video loss, camera tampering
Live monitoring 25 fps
Recording options 5 MP -
3 MP 15 fps (ch. 1&2)
1080p 15 fps
720p 15 fps
WD1/4CIF 25 fps
CIF 25 fps
Video bit rate range (single channel) 32 kbps - 10 Mbps
Audio bit rate 64 kbps
HDD capacity & interface 1 x max 6 TB SATA HDD
S.M.A.R.T. monitoring tools YES
NAS/SAN compatibility YES (NAS)
External ports 2x USB 2.0; RJ-45 (10M / 100M Auto); RS-485
Secondary stream WD1, 4CIF, CIF, QVGA, QCIF
Network protocols TCP/IP; DHCP; DDNS; PPPoE; email; NTP; SNMP; UPnP
Software ports Server - 8000
HTTP - 80
RTSP - 554
Remote monitoring Internet Explorer
PTZ protocols Yes
Archiving USB storage device, remote server
Power input 12 VDC (dedicated PSU)
Power consumption <7.5 W (without HDD)
Operating temperature -10°C...55°C
Operating humidity 10%...90%
Dimensions (W x D x H) 315 x 242 x 45 mm
