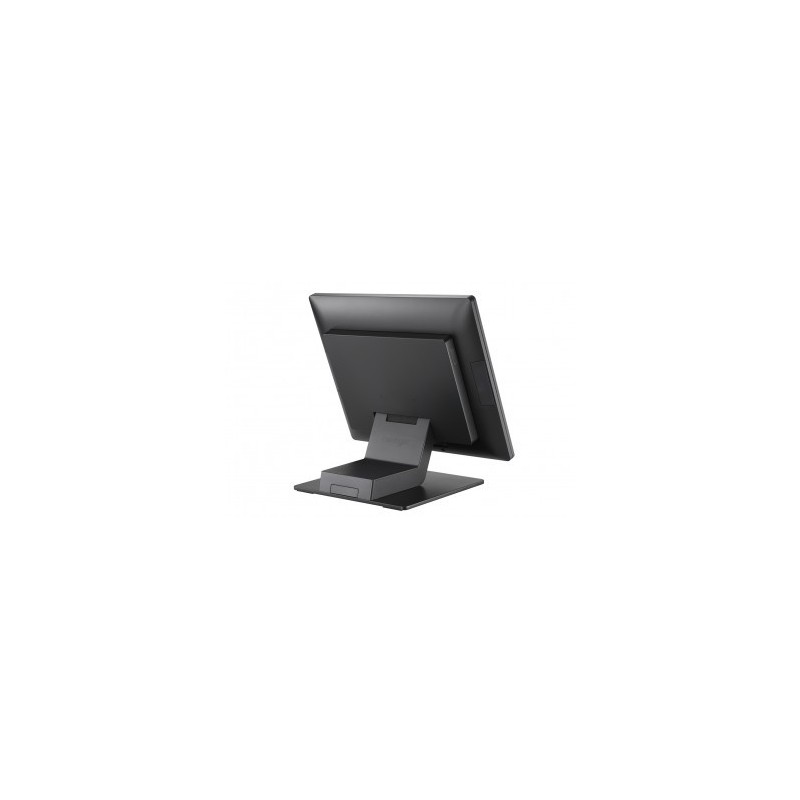

Posiflex RT-5015-K View larger
Previous Next

Posiflex RT-5015-K

RT5015K

New product

RT-5015

The RT-5015 radiates in its new design – featuring an ultra-slim and sleek look that exhibits elegance. It is uncompromising to the space requirements and provides better cable management and easy maintenance. The RT-5015 is taking POS terminal design into the next level, setting your brand image apart from the others.

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 282,520

Call | Whatsapp

Karachi: +92-300-0339084 , +92-300-0778766 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Posiflex RT-5015-K Features and Benefits

Features:

Posiflex RT-5015-K Description

Features

Slim & Stylish Look

  • With sleek contours, ultra-slim body, and linear rear cover surface, the RT-5015 features a 15" PCAP touch screen, and full suite of ports that are hidden in the clean rear cover. No screws can be found on its surface maintaining a neat and sleek look.

Patented Fanless Technology

  • The patented fan-less technology allows the terminal to run quietly in all kinds of harsh conditions and – at the same time - provides a long service life.

Clean Cable Management

  • Advanced cable management design delivers a truly clutter-free station. The standard base can house the optional Powered USB or USB extension module, while the optional base integrates a UPS backup (RB-5000) for the event of a power failure.

Faster Installation and Serviceability

  • Rear cover can be removed easily and without tools, thus allowing faster installation and serviceability.

Save Your Time and Money

  • The terminal can be shipped with customer line display or 9.7” / 10” 2nd customer facing LCD display attached and folded, saving deployment time as well as shipping costs.

Specification

System Configuration
processor Intel Kaby Lake Core i3-7100U, 2.40 GHz, 3M Cache
Intel Kaby Lake Core i5-7200U, 2.50 GHz, 3M Cache;
Intel Kaby Lake Core i5-7300U, 2.60 GHz, 3M Cache
Memory DDR4 SO-DIMM slot x 2, max. 16GB
hard disk Hour x 2
RAID function N/A
Intel vPro support N/A
Support TPM N/A
power supply 12V/60W
OS Support System Windows 10 IoT 64 bit
Display and touch
LCD Monitor 15" TFT LCD
Resolution 1024 x 768
touch screen True-flat PCAP touch with multi-touch support (IP65 on front panel)
I / O exhibition
serial port 3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports
parallel port N/A
USB port 5, USB 3.0 x 2 + USB 2.0 x 3
drive usb port Optional PoweredUSB module with 24V + 12V (USB 3.0 x 1 will no longer be available with the PoweredUSB module)
OTG USB N/A
network port 10/100/1000 Mb x 1
display port VGA via proprietary connector (12V support for Posiflex monitors) x 1+ mini DP x 1
CR interface 1, control 2 CR via optional Y-cable, supporting 24V cash drawer
PS/2 port N/A
UPS port N/A
audio Internal 2W speaker x 1
expansion slot M.2 slot x 1
physical dimension
Dimensions (W x D x H in mm) 368 x 207 x 325
Weight(Kg) 5.4
Applicable environment
Operating environment 0°C - 40°C, 20%RH - 90%RH (Equipped with HDD);
0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
storage environment -20°C - 70°C, 10%RH - 90%RH
built-in options
WiFi M.2 WiFi/BT module
Camera 1MP wide angle camera
MSR N/A
AG anti-glare glass Cannot coexist with built-in camera
Optional accessories
POS monitoring Non-touch TFT LCD: 9.7"/10.1"/15";
PCAP touch TFT LCD: 9.7""/10.1"
monitor 2 x 20 rear-mount VFD customer line display
External UPS Pack For RT Series UPS battery module (12V/2300mAh)
Accessories MSR; iButton; 2D Scanner; RFID; Fingerprint Sensor
