View larger
HP L7014
L7014
New product

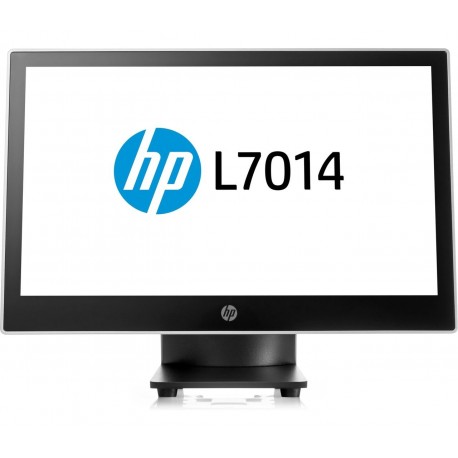

HP L7014 14-inch Retail Monitor
This product is no longer in stock
Rating:
Be the first to write a review!
More info
Product Information:
HP L7014 Features and Benefits
Features:
HP L7014 Description
Product description
Product features
Specifications
General
|
Specification
|
Description
|
|
Display size (diagonal)
|
14 in
|
|
Display type
|
TN w/LED backlight
|
|
Native resolution
|
1366 x 768 at 60 Hz
|
|
Aspect ratio
|
16:9
|
|
Brightness
|
200 nits (with glass)
|
|
Static contrast ratio
|
500:1 static
|
|
Dynamic contrast ratio
|
N/A
|
|
Pixel pitch
|
0.226 x 0.226 mm
|
|
Pixels per inch (PPI)
|
112
|
|
Backlight lamp life
|
15,000 hrs (minimum)
|
|
Anti-glare panel
|
Yes
|
|
BrightView panel
|
No
|
|
Response time
|
16 ms on/off (typical)
|
|
Color gamut
|
45%
|
|
Color support
|
14.4M colors
|
|
Horizontal viewing angle (typical CR>10)
|
90°
|
|
Vertical viewing angle (typical CR>10)
|
60°
|
|
3D vertical viewing angle
|
N/A
|
|
Panel active area
|
309.4 x 173.95 mm (12.18 x 6.85 in)
|
|
Supported resolutions
|
640 x 480 at 60 Hz
720 x 400 at 70 Hz
800 x 600 at 60 Hz
1024 x 768 at 60 Hz
1280 x 720 at 60 Hz
1280 x 800 at 60 Hz
1280 x 1024 at 60 Hz
1366 x 768 at 60 Hz
|
|
Maximum resolution
|
1366 x 768 at 60 Hz
|
|
Recommended resolution
|
1366 x 768 at 60 Hz
|
|
Vertical scan range
|
50 to 76 Hz
|
|
Horizontal scan range
|
24 to 80 kHz
|
|
Default color temperature
|
6500K
|
|
Maximum pixel clock speed
|
110 MHz
|
|
Exterior color of monitor bezel and stand
|
HP logo(front): PMS Cool Gray 10c
Rear cover: Asteroid
Front cover: HP Black
|
|
Plug & play
|
Yes
|
|
Tilt
|
-5 to +135 degrees
|
|
Swivel
|
N/A
|
|
Pivot
|
N/A
|
|
Security lock ready
|
N/A
|
|
Height adjustment
|
N/A
|
|
Height adjustment range (Min-Max)
|
N/A
|
|
Detachable base
|
Yes
|
|
Webcam
|
N/A
|
|
Speakers output power
|
N/A
|
|
Warranty
|
3 years
|
|
VESA mounting
|
Yes
|
Touch specifications
|
Specification
|
Description
|
|
Touch panel type
|
N/A
|
|
Positional accuracy
|
N/A
|
|
Resolution accuracy
|
N/A
|
|
Optical light transmission (per ASTM D1003)
|
Normal Glass: ≧85%
|
|
Electrostatic projection (pr EN6100-4-2, 1955)
|
N/A
|
On screen display (OSD)
|
Specification
|
Description
|
|
User controls
|
Brightness, Contrast, Input Control, Color, Image Control, Power Control, Menu Control, Management, Language, Information, Factory Reset, Exit
|
|
User programmable modes
|
Yes, 8
|
|
Monitor control buttons or switches
|
Brightness, Color Control, Information, Menu
|
|
Audio controls
|
N/A
|
|
Languages
|
Brazilian Portuguese, Chinese (Simplified), Chinese (Traditional), English, French, German, Italian, Japanese, Netherlands, Spanish
|
Input connectors
|
Specification
|
Description
|
|
Input connectors
|
(1) DisplayPort 1.2
HDCP Support
|
Power
|
Specification
|
Description
|
|
Power supply
|
External power supply
|
|
Power source
|
100 - 240 VAC 50/60 Hz
|
|
Power consumption (maximum)
|
9.5 W
|
|
Energy saving/Standby mode
|
<0.5 W
|
|
Power consumption (typical)
|
7.17 W
|
|
Power cable length
|
1.83 m (6.01 ft)
|
|
Operational Mode at 100 VAC
|
N/A
|
|
Operational Mode at 115 VAC
|
N/A
|
|
Operational Mode at 230 VAC
|
N/A
|
Operating conditions
|
Specification
|
Description
|
|
Operating temperature
|
5° to 35° C (41° to 95° F) at 20% to 80% humidity (non-condensing at ambient)
|
|
Non-operating temperature
|
-20° to 60° C (-4° to 140° F) at 5% to 95% humidity (non-condensing at ambient)
|
|
Operating humidity
|
20% - 80% (non-condensing)
|
|
Non-operating humidity
|
5% - 95%
|
|
Operating altitude
|
0 to 5,000 m (16,400 ft)
|
|
Non-operating altitude
|
0 to 12,192 m (40,000 ft)
|
Weight and dimensions
|
Specification
|
Description
|
|
Unpacked without stand
|
339.8 x 41.5 x 218 mm (13.4 x 1.7 x 8.6 in)
|
|
Packed
|
Inner: 410 x 140 x 286 mm (16.14 x 5.51 x 11.26 in)
Outer: 442 x 426 x 316 mm (17.40 x 16.77 x 12.44 in)
|
|
Display head dimensions (unpacked without stand)
|
339.8 x 41.5 x 218.0 mm (13.4 x 1.7 x 8.6 in)
|
|
Weight (unpacked with stand)
|
1.68 kg (3.71 lb)
|
|
Weight (packed)
|
2.79 kg (6.15 lb)
|
Environmental
|
Specification
|
Description
|
|
Mercury-free display backlighting
|
Yes, Mercury-free backlights
|
|
Arsenic-free display glass
|
Yes
|
|
Low halogen
|
Yes
|
|
Agency approvals and certifications
|
CB, CE, FCC marking, ErP, CSA/C-UL/C-ETL Mark, cTUVus/UL/CSA-NTRL/ETL-NRTL Mark, ICES, Japan VCCI, CCC, CECP, China CEL, Taiwan BSMI,Bauart; KCC; e-standby; PSB, ISC mark, C-tick, ETC,Vietnam MEPS, Australian-New Zealand MEPS/EPA7.0
|
|
Microsoft WHQL certification
|
Windows 7, 8, 10
|
|
ENERGY STAR qualified
|
N/A
|
|
EPEAT Registered
|
N/A
|
|
China energy label
|
Grade1 (GB21520-2008)
|
|
TCO certified edge
|
N/A
|
|
TCO certified
|
N/A
|
|
SmartWay transport partnership
|
Yes (NA SKU)
|
|
Contains recycled plastics in back cover
|
Yes
|
|
Contains recycled plastics in base/stand
|
Yes
|
|
Contains recycled plastics in other parts
|
Yes
|
|
Recyclable plastics
|
N/A
|
|
Recyclable packaging
|
N/A
|
