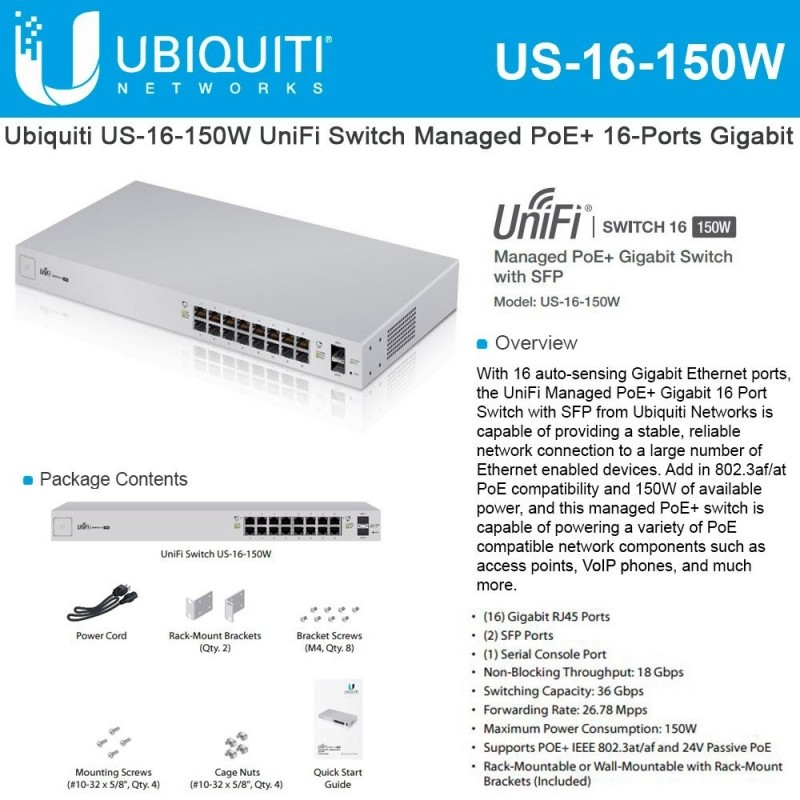

Ubiquiti US-16-150W View larger

Ubiquiti US-16-150W

US16150W

New product

Switch 16 PoE (150W)

Layer 2, PoE switch with (16) GbE, 802.3at PoE+ and 24V passive PoE RJ45 ports and (2) 1G SFP ports.

The Switch 16 PoE 150W (US 16 PoE 150W), a fully managed switch with (16) GbE RJ45 ports and (2) 1G SFP ports.

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 91,480

Call | Whatsapp

Karachi: +92-300-0339084 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Ubiquiti US-16-150W Features and Benefits

Features:

Ubiquiti US-16-150W Description

Layer 2, PoE switch with (16) GbE, 802.3at PoE+ and 24V passive PoE RJ45 ports and (2) 1G SFP ports.

The Switch 16 PoE 150W (US 16 PoE 150W), a fully managed switch with (16) GbE RJ45 ports and (2) 1G SFP ports. Each of the switch's ports can provide either 802.3at PoE+ or configurable, 24V passive PoE to UniFi access points or other PoE devices. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

  • (16) GbE, 802.3at PoE+ and 24V passive PoE RJ45 ports
  • (2) 1G SFP ports
  • 122W total PoE supply

Specification

US-16-150W
Dimensions 443 x 43 x 221 mm
(17.44 x 1.69 x 8.70")
Weight
Rack-Mount Brackets Excluded
Rack-Mount Brackets Included
2.80 kg (6.17 lb)
2.89 kg (6.37 lb)
Networking Interfaces (16) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface Ethernet In-Band
Total Non-Blocking Throughput 18 Gbps
Switching Capacity 36 Gbps
Forwarding Rate 26.78 Mpps
MAC Address Table 16384
Maximum Aggregations 6
Monitoring Sessions 1
Maximum VLANs 255
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 150W DC
Max. Power Consumption
Including PoE Output
Excluding PoE Output
150W
28W
LEDs Per Port
RJ45 Data Ports
SFP Data Ports
PoE, Speed/Link/Activity
Speed/Link/Activity
Sound Level*
Fan Level: 0
Fan Level: 1, 2, 3
1.7 dBr
10.8 dBr
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
PoE+ Per Port
PoE Interfaces PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3at Mode 50–57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V
