Tenda TEG1009P-EI 9-Port Gigabit Desktop Switch with 8-Port PoE View larger
Previous Next

Tenda TEG1009P-EI

TEG1009PEI

New product

TEG1009P-EI    /    Switch    /    9-Port Gigabit Desktop Switch with 8-Port PoE

Tenda TEG1009P-EI is 9-Port Gigabit Desktop Switch with 8-Port PoE, providing 9 GE Base-T Ethernet ports. 1-8 ports supports IEEE802.

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Tenda TEG1009P-EI Features and Benefits

Features:

Tenda TEG1009P-EI Description

What It Does

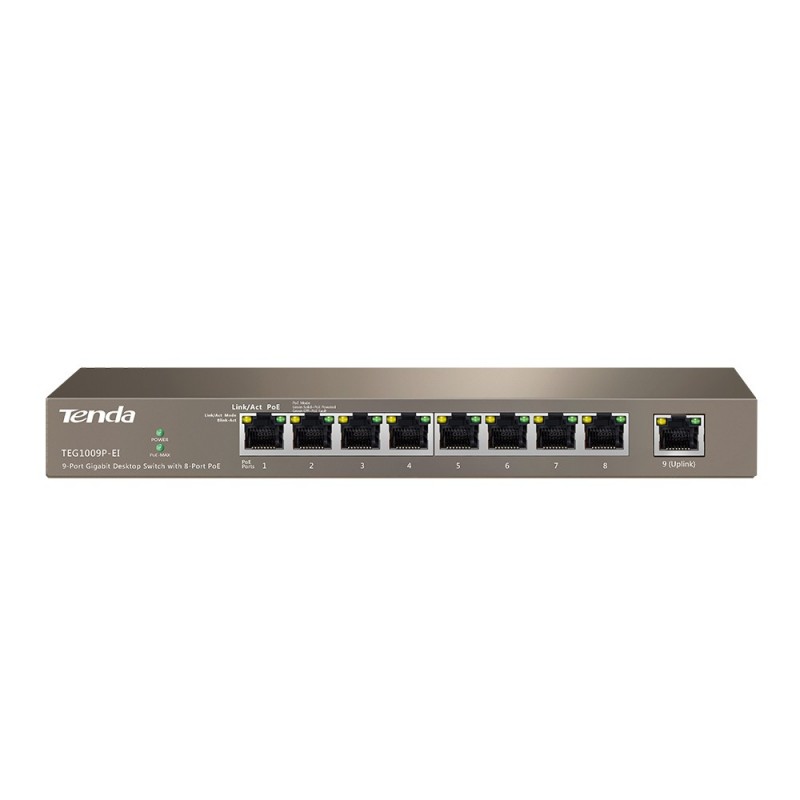

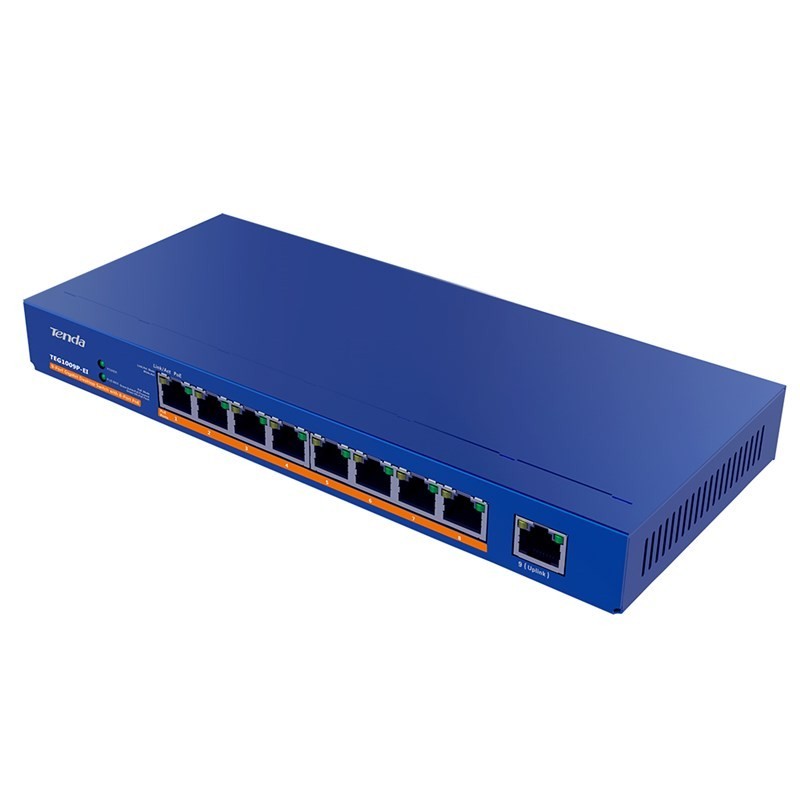

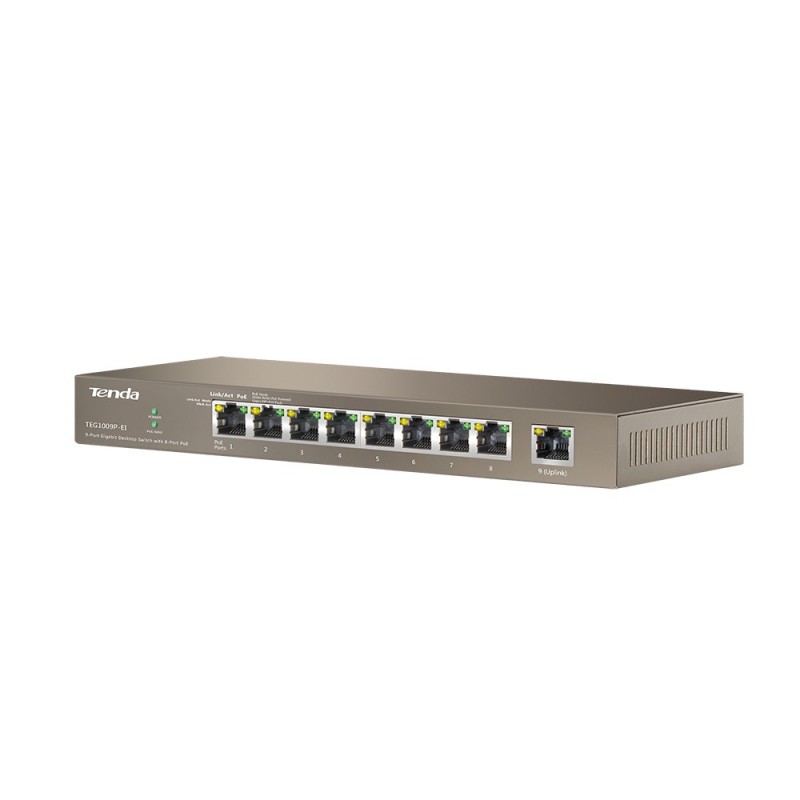

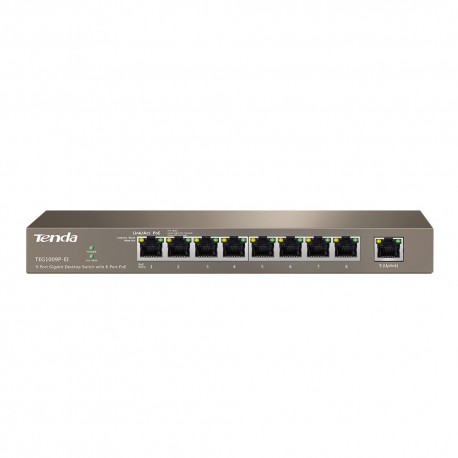

Tenda TEG1009P-EI is 9-Port Gigabit Desktop Switch with 8-Port PoE, providing 9 GE Base-T Ethernet ports. 1-8 ports supports IEEE802.3af PoE(15.4W) or 4 ports 802.3at PoE(30W). Through conventional Cat 5 twisted pair, power can be transmitted along with data for AP, IP Camera and IP Phone. Plus, the device complies with 802.3az(EEE) standard, and is designed with superior performance such as 9th uplink port for lightning protection, PoE dynamic power, lower power consumption and fan-less. Thus, Wireless coverage, safety project, difficult power supply of end-device, maintenance hassle are effectively solved, TEG1009P is ideal for you to lower cost greatly.

Main Features

1、Compliant with IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
2、1-8 ports support PoE（AF/AT）, wire-speed forwarding on each port
3、Backplane broadband up to 18Gbps, packet forwarding rate up to 13.4Mpps, and supports non-blocking wire-speed forwarding
4、Provides 9 10/100/1000Mbps auto-sensing RJ45 ports, support parallel-line and cross-line auto-detection (Auto MDI/MDIX)
5、Integrates with professional lightning-proof circuit, supports 2-level lightning -proof for uplink port
6、4K MAC address list with address learning and aging
7、Complies with 802.az(EEE), applies energy-saving chipsets, environment-friendly, fanless design for silent operation
8、Adopts Cat-5e , power and transmission distance up to 150 meters
9、Supports absorption installation and desktop installation, wall-mount

Superior PoE Performance

1-8 ports supports IEEE 802.3af(15.4W) or 1-4 ports IEEE 802.3at (30W). Providing PoE dynamic power, the device can auto-detect power consumption of PD device and match proper output power


Pioneered 9 GE Ports in Domestic

Providies9 GE Ethernet ports, supports layer 2 wire speed-speed forwarding on each port, and fully meets needs of Gigabit WLAN, HD data monitor

High Reliability

Integrates with professional lightning protection circuit and 2-level lightning-proof for uplink ports(4KV lightning proof for 9th ports). Stronger ethernet technology to improve your network performance

Plug & Play

Plug and play, no any configuration needed. Easy to maintain the device

Easy to Install

The device is equipped with magnet and mounting hole, so it's easy to be installed based on metal platform or on smooth wall

Extend power supply distance

Adopts Cat-5e , power and transmission distance up to 150 meters. The device not only improves the quality of data delivery, but also expands coverage range of small network

Reviews (0)

Download

Tenda TEG1009P-EI

Download Tenda TEG1009P-EI Datasheet

Download (262.45k)
