General

Shell

Metal material, fan-free design

Net Weight

0.4 kg (0.9 lb)

Gross Weight

0.9 kg (2.0 lb)

Dimensions (W × H × D)

170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'')

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

48 V DC, 1.35 A

Installation Mode

Desk-Mounted,Wall-Mounted

Max. Power Consumption

65 W

Power Consumption in Idle

5 W

Surge Protection

6 kV

Network Parameters

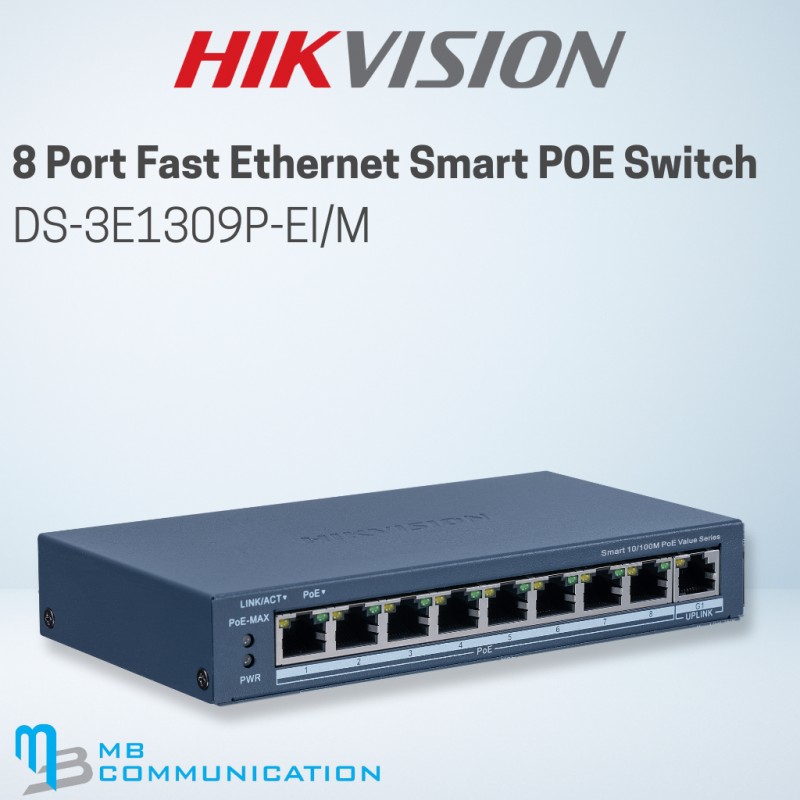

Ports

8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port

MAC Address Table

8 K

Switching Capacity

5.6 Gbps

Packet Forwarding Rate

4.17 Mpps

Internal Cache

4 Mbits

PoE Power Supply

PoE Standard

IEEE 802.3af,IEEE 802.3at

PoE Power Pin

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port

PoE: Ports 1 to 8

Max. Port Power

30 W

PoE Power Budget

60 W

Software Function

Long Range

Ports 1 to 8: up to 300 m.

Long range performance may vary depend on camera model or cable condition.

HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

Display the port rate.

Display the port bandwidth utilization rate.

Display the PoE power usage.

Display topology information.

Display the alarm status.

Restart ports and devices.

Enable port long-rage mode.

Remotely upgrade the device.

System Maintenance

Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.

Support remote management via Hik-Partner Pro. Support 802.1ab LLDP for peer device discovery.

PoE Watchdog

Ports 1 to 8: auto detect and restart the cameras that do not respond.

Approval

EMC

CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)

Safety

UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
