View larger

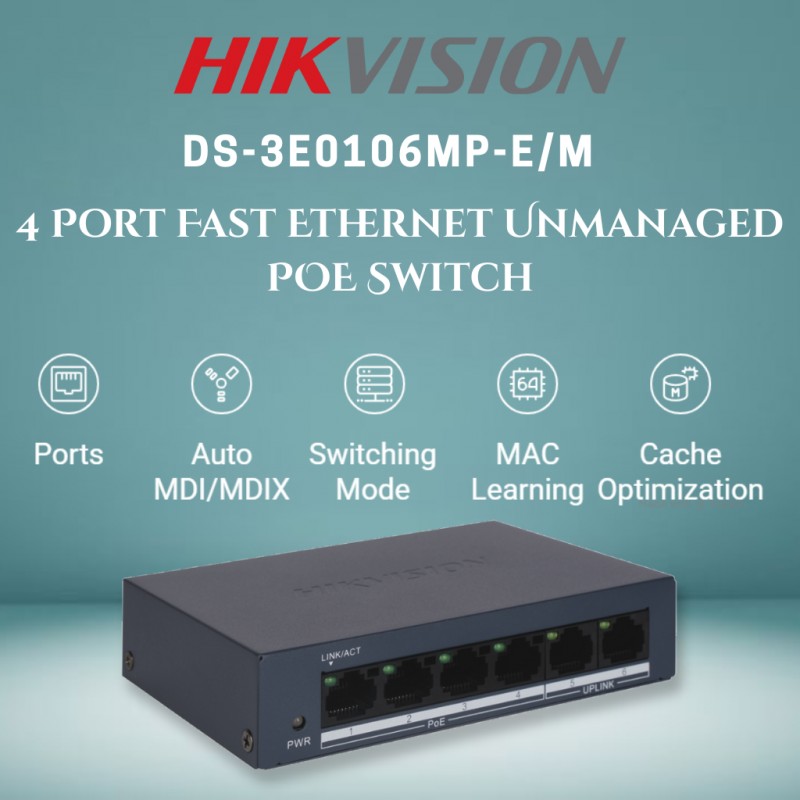

Hikvision DS-3E0106MP-E/M
DS-3E0106MP-E/M
New product
4 Port Fast Ethernet Unmanaged POE Switch
The device is a layer-2 10/100 Mbps PoE switch, providing PoE power supply technology and fast network design on the basis of network access to ensure stable data upload.
In Stock
WhatsApp
More info
Product Information:
Hikvision DS-3E0106MP-E/M Features and Benefits
Features:
Hikvision DS-3E0106MP-E/M Description
Features
- 4 × 10/100 Mbps PoE RJ45 ports and 2 × 10/100 Mbps RJ45 ports
- Auto MDI/MDIX of ports
- Store-and-forward switching mode
- Auto MAC address learning and aging
- Intelligent cache optimization
Specifications
|
Network Parameters |
|
|
Ports |
4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port |
|
MAC Address Table |
2 K |
|
Switching Capacity |
1.2 Gbps |
|
Packet Forwarding Rate |
0.89 Mpps |
|
Internal Cache |
768 Kbits |
|
PoE Power Supply |
|
|
PoE Power Pin |
End-span: 1/2(-), 3/6(+) |
|
PoE Port |
PoE: Ports 1 to 4 |
|
PoE Power Budget |
45W |
|
General |
|
|
Shell |
Metal material, fan-free design |
|
Net Weight |
0.19 kg (0.42 lb) |
|
Gross Weight |
0.63 kg (1.39 lb) |
|
Dimensions (W × H × D) |
121.10 mm × 27.60 mm × 83.10 mm (4.77'' × 1.09'' × 3.27'') |
|
Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
|
Storage Temperature |
-40 °C to 85 °C (-40 °F to 185 °F) |
|
Operating Humidity |
5% to 95% (no condensation) |
|
Relative Humidity |
5% to 95% (no condensation) |
|
Power Supply |
48 V DC, 1.04 A |
|
Max. Power Consumption |
50 W |
|
Power Consumption in Idle |
1.6 W |
|
Installation Mode |
Desk-Mounted, Wall-Mounted |
|
Surge Protection |
2 kV |
|
Approval |
|
|
EMC |
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
|
Safety |
CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
|
Chemistry |
CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
