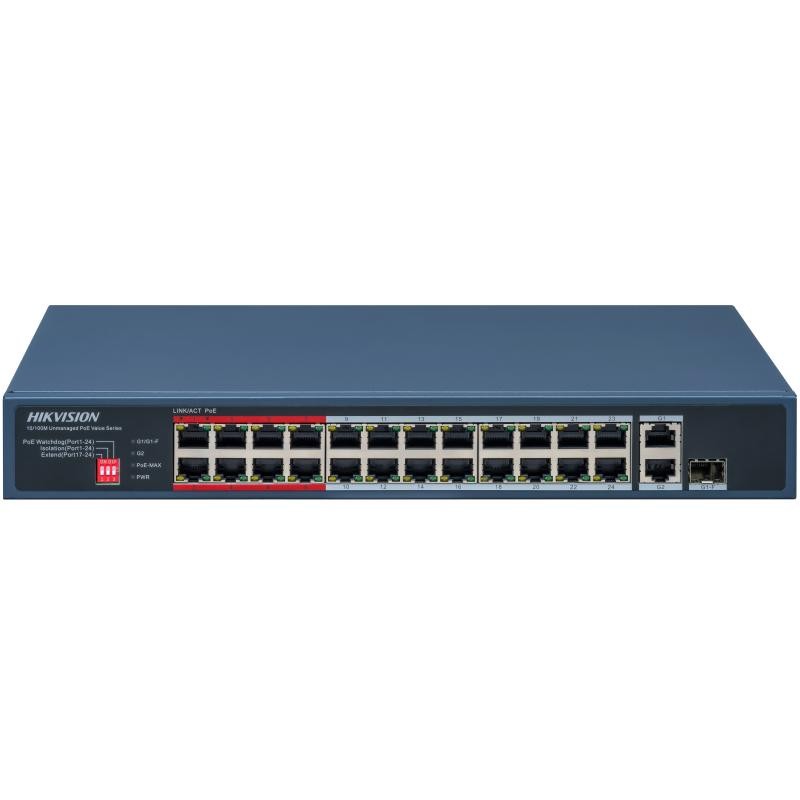

Hikvision DS-3E0326P-E/M(C)

Reference: DS-3E0326P-E/M(C)

Condition: New product

24 Port Fast Ethernet Unmanaged POE Switch

DS-3E0326P-E/M(C) switches are layer 2 100 Mbps PoE switches, providing PoE power supply technology and Gigabit network design on the basis of network access to ensure stable data upload. The switches support long range, port isolation, and PoE watchdog functions.

More details

In Stock

Rating: Be the first to write a review!

More info

Product Information:

Hikvision DS-3E0326P-E/M(C) Features and Benefits

Features:

Hikvision DS-3E0326P-E/M(C) Description

Features

Intelligent PoE Management When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
Up to 300 m Long Range PoE Transmission The distance between IPCs and switch can reach maximum 300 meters.
4/8-Core Adaptive Power Supply with Less Power Loss 8-core power supply reduces the power loss on cables
6 KV Surge Protection to Improve Reliability in Harsh Environment The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
Design for Video Transmission VIP port ensures important data transmission when network congestion occurs.

Specification

Network Parameters
Port number	24 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
Port type	RJ45 port, full duplex, MDI/MDI-X adaptive
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode	Store-and-forward switching
Working mode	Standard mode (default); Extend mode
High priority ports	Ports 1 to 8
Ports for long-distance transmission	Ports 17 to 24
MAC address table	4 K
Switching capacity	8.8 Gbps
Packet forwarding rate	6.547 Mpps
Internal cache	2.75 Mbits
PoE power supply
PoE standard	IEEE 802.3af, IEEE 802.3at
PoE power pin	Ports for long-distance transmission (17-24) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.
PoE power pin	Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.
PoE port	Ports 1 to 24
Max. port power	30 W
PoE power budget	230 W
Max. power consumption	250 W
General
Shell	Metal material
Gross weight	3.33 kg (7.34 lb)
Net weight	2.55 kg (5.6 lb)
Dimension (L × H × D)	335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)
Operating temperature	-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity	5% to 95% (no condensation)
Storage humidity	5% to 95% (no condensation)
Power supply	100 to 240 VAC, 50/60 Hz, Max. 4 A
Power consumption in idle	20 W
Approval
EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
