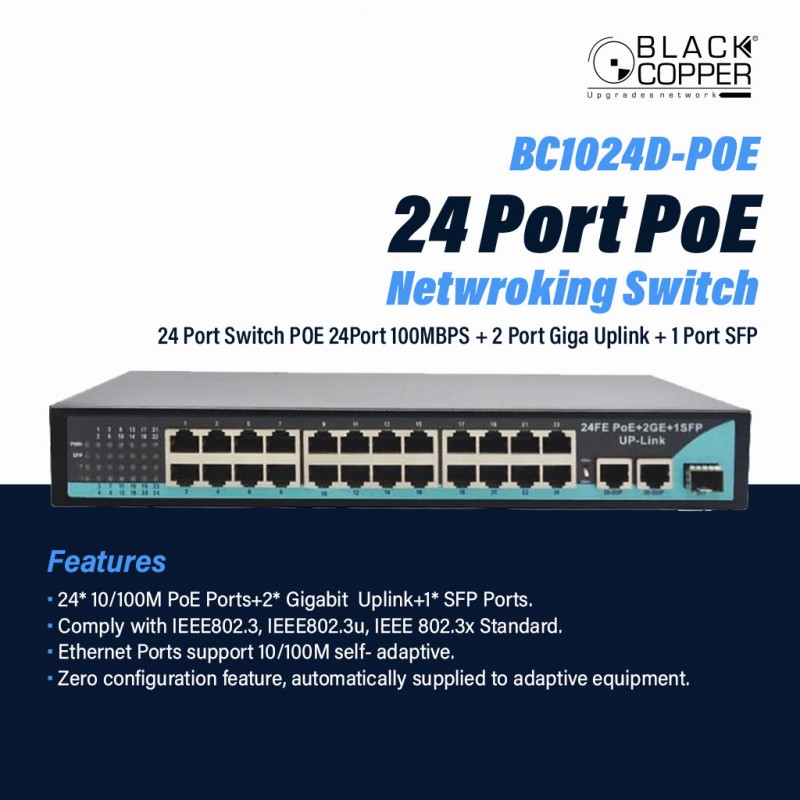

Black Copper BC1024D-POE View larger

Black Copper BC1024D-POE

BC1024D-POE

New product

24 Port Switch POE 24Port 100MBPS + 2 Port Giga 1000MBPS Uplink + 1 Port SFP

More details

This product is no longer in stock

Rs 35,460

More info

Product Information:

Black Copper BC1024D-POE Features and Benefits

Features:

Black Copper BC1024D-POE Description

This PoE switch has 24x 10/100Base-TX Ethernet ports, 2x 10/100/1000Base-T Ethernet ports and 1x 1000Base-X SFP slot, of which port 1-24 support IEEE802.3 af/at PoE(Power over Ethernet) protocol power supply. The PoE port supports a maximum output power of 25.4W, and the maximum PoE power of the whole machine is 320W; It supports standard PoE protocol, which can automatically detect whether the powered device supports PoE power supply, and only supply the power to the same PoE protocol PD devices, It can effectively avoid damage to non-PoE devices.
The PoE switch can force the transmission rate of port 1-24 to be reduced to 10Mbps through the DIP switch, and then it will be able to transmit a maximum distance of 250m through the existing twisted pair. At the same time, port 1-16 are in a state of mutual network isolation, but they can communicate with the uplink ports (25-27) respectively. It can effectively isolate the conflict domain and the broadcast domain, reduce the generation of broadcast storms, and improve the efficiency of network communication. It is an ideal choice for video surveillance networks in hotels, stores, supermarkets, family homes, and small and medium-sized enterprises.
Specification
Model

BC1024D-POE
Protocol
Standard
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
Standards IEEE802.3z 1000Base-SX/LX
IEEE802.1W Spanning Tree
IEEE 802.3x Flow Control
Fiber port feature
Connector type
SFP Slot
Transmission rate
1.25 Gbps
Transmission distance
Multi-mode: 550m/2km;
Single-mode: 2/20/40/60/80/100km
Wavelength
Multi-mode: 850nm/1310nm,
Single-mode: 1310nm/1550nm/1490nm

Feature Ethernet Port
Connector type
RJ45 2×4, RJ45 1×1
Transmission rate
10/100Mbps auto-negotiate;
10/100/1000Mbps auto-negotiation
Transmission distance
10Base-T: ≤ 250m(CAT3,4,5 UTP)
100Base-TX: ≤ 100m(CAT3,4,5 UTP)
1000Base-T: ≤ 100m(CAT3,4,5 UTP)
Exchange rate performance
Advanced method
Store and advance (full wire speed)
Transmission Mode
Adaptive Half/Full Duplex
MAC Address Table
2K
Case space
1Mb
Jumbo Frames
9216b
Package forwarding fee
8.0352Mpps @ 64byte
Bandwidth
10.8G (no blocking)
LED indicator
Power indicator
Gree, PWR
Link/Act Indicator
Green, per ethernet port and fiber port
DIP switch
100m
Standard mode-All ports can communicate with each other.
250m
Extend mode, port 1-24 are isolated from each other, the transmission distance can up to 250m, and can communicate with port 25-27.
Power parameters
Input voltage
AC100~240V, 50Hz
Energy consumption
Standby: ≤ 3W; full: ≤ 320W
PoE pin
1/2+,3/6-
The maximum port rate
≤ 25.4 W
Environment
Operating temperature
-20℃～60℃
Storage temperature:
-40℃～85℃
Operating humidity
5% ~ 95% non-condensing
Thermal dissipation method
Natural heat dissipation
Physical properties
Size
305 × 182 × 44 mm
Weight
Net weight: 2.0kg, gross weight: 2.2kg
Physical properties
Size
201 × 140 × 44 mm
Weight
Net weight: 0.7kg, gross weight: 0.9kg
