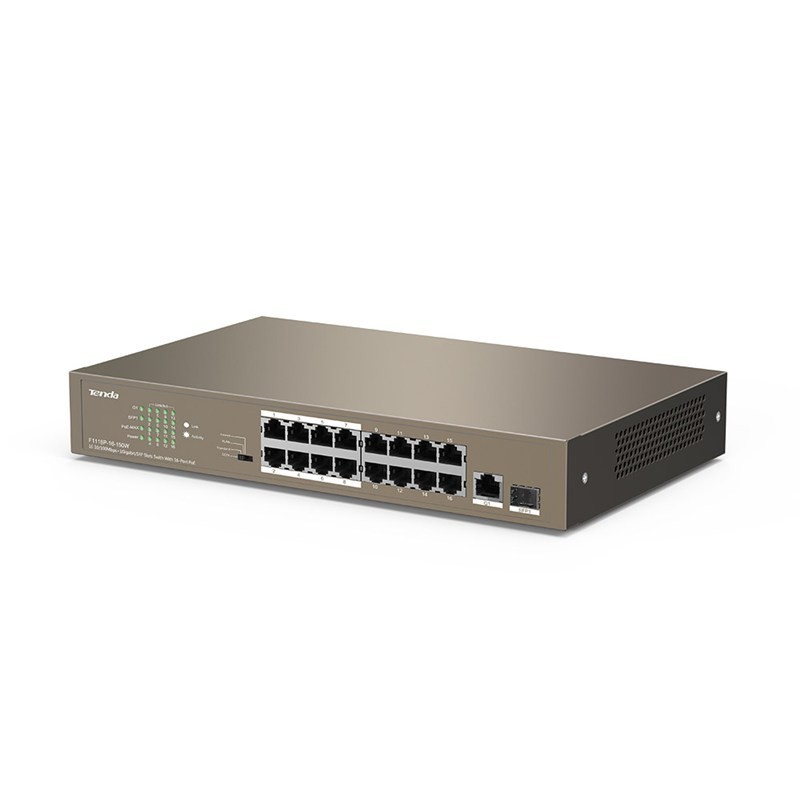

TEF1118P-16-150W is a Tenda PoE switch that offers 16 10/100 Mbps Base-TX RJ45 ports, 1 10/100/1000 Mbps Base-T RJ45 ports, and 1 1000 Mbps Base-X SFP port. Ports 1-16 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 135 W and can supply power to and exchange data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN, and Extend to help reduce cabling costs of IP terminals like APs and IP cameras.



Lead security transmission power supply to a new height

16 10/100Mbps +1 Gigabit/SFP Slots Switch With 16-Port PoETEF1118P-16-150W



6KV lighting protection PoE switch is the real monitoring private switch

In real project, ap or cameras are often installed in outdoor or a higher position, which also increases the camera and PoE switches the probability of lightning shock .The result is the individual equipment damaged, or lead to the whole local area network (LAN) paralysis.Tenda TEF11 series switches have professional lightning protection design -up 6 kv port and power supply thunder prevents , with two levels of protection design respectively, effectively restrain the power of lightning from cable , which equivalent to give the entire network monitoring system with a security fence,The test standard is much higher than the national CE request,.In thunderstorms weather,it can also provide monitoring network stable, reliable service, protect the images transmission be normal .



CCTV、Standard, VLAN and Extend Operation Modes Offered

CCTV： 1-8 ports support QoS，If multiple IP cameras are connected to the switch, you are recommended to enable this mode and connect the G1 or SFP1 port of this switch to the upstream device to which the monitoring computer connects. This ensures smoother monitoring video playback.
Standard： the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN： In this mode,1-16 ports of the switch cannot communicate with each other, but can communicate with the G1 and SFP1 ports.Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing.
Extend： In this mode, the data rate of 1-8 port of the switch is limited to 10 Mbps, whereas the maximum transmission distance of the port is increased to 250 meters. All the ports of the switch can communicate with each other.



135W PoE power supply

Ports 1-16 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 135 W, whereas each port offers a maximum PoE power output of 30 W. The ports can be used to supply power to and exchange data with APs and IP cameras.
