View larger

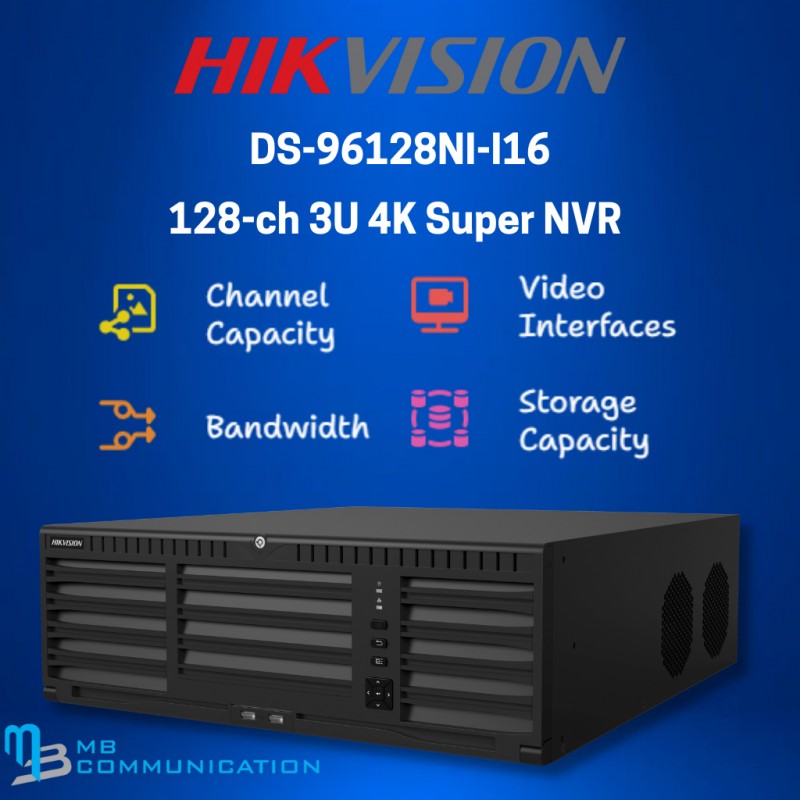

Hikvision DS-96128NI-I16
DS96128NII16
New product
128-ch 3U 4K Super NVR
- Up to 128 channel IP cameras can be connected
- Up to 576 Mbps high incoming bandwidth ensures IP cameras can be connected
- 2 HDMI (different source) and 1 VGA interface
- 16 HDD can be used for continuous video recording
This product is no longer in stock
WhatsApp
Rating:
Be the first to write a review!
More info
Product Information:
Hikvision DS-96128NI-I16 Features and Benefits
Features:
Hikvision DS-96128NI-I16 Description
128-ch 3U 4K Super NVR
- Up to 128 channel IP cameras can be connected
- Up to 576 Mbps high incoming bandwidth ensures IP cameras can be connected
- 2 HDMI (different source) and 1 VGA interface.
- 16 HDD can be used for continuous video recording
- Supports some specialist cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera.
- Advanced streaming technology enables smooth live view in poor network conditions
- Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
Specification
VIDEO AUDIO INPUT
| Number of IP channels | 128 |
|---|---|
| Two Way Audio Input | 1-ch, RCA ( 2.0Vp-p , 1kohm ) |
| IP Video Input Maximum Resolution | 12MP |
| Video Input Technology | IP |
| Total video channels | 128 |
NETWORK
| Incoming Bandwidth | 768 |
|---|---|
| Outgoing Bandwidth | 512 |
| Remote connection | 128 |
| Web Browser Access | Google Chrome, Internet Explorer, Without plugin |
| Multi-streaming | 3 |
| Network Security | HTTPS encryption, IP address filtering, Password protection |
| DDNS | HIK-Connect |
| Total LAN ports | 4 |
AUDIO VIDEO OUTPUT
| Monitor resolution | 1080p, 4K |
|---|---|
| HDMI Output | 2 |
| VGA Output | 1 |
| Audio Output | 1-ch, RCA (2.0Vp-p , 1Kohm ) |
| CVBS output | None |
| Video Output for 4K | 2x HDMI |
| LCD monitor | No |
DECODING
| Decoding capability | 20 simultaneous channels, 40 MPixels |
|---|
HARD DISK
| Optional discs | 16x SATA 6Gbps |
|---|---|
| eSATA | 1 |
| HD Capacity | 10TB Pro HDD |
| Integrated drive | Without |
| External storage | NAS |
| redundant recording | Yes |
RAID
| RAID Type | RAID 0, RAID 1, RAID 10, RAID 5 |
|---|
EXTERNAL INTERFACE
| Network Interface | 4 x RJ-45 10/100/1000 Mbps Ethernet |
|---|---|
| USB Interface | 2 x USB (Front & Rear Panel) |
| Alarm Input | 16 |
| Alarm output | 8 |
| Serial interface | RS232, RS485 |
| RS Communication Protocol | HIKVISION-C, PELCO-D, Pelco-P |
SPECIFICATIONS
| Power consumption (W) | 140 |
|---|---|
| Power supply | 230VAC |
| Signal System | HDMI, HDMI 4K, IP, VGA |
| Warranty | 5 Years |
ENVIRONMENTAL
| Working Temperature (°C) | From 0 to 50 |
|---|---|
| Max. Working Humidity [%] | 90 |
| Chassis | 19-inch Rack-mount 3U |
| Weight | 17.39 |
| Redundant Power Supply | Yes |
| 19" Rack mounting | Yes |
| Included in the package | Brackets 19 '' |
| Package volume (m3) | 0.1064 |
| Dimensions (H x W x D) [mm] | 146 x 445 x 494 |
BUILT IN FUNCTIONS
| Analyzes | depending on the Hikvision camera |
|---|---|
| Events, system error | |
| Calendar | By event, Daily, Holidays, Week's days |
| Video analysis in reading | Line crossing, Zone penetration |
CERTIFICATIONS
| Video resolution | 4K, Full HD, VGA |
|---|
FEATURES
| Product description | HDMI, VGA and CCTV video output are independent All video outputs can display multi-windows RAID (minimum configuration of 4TB per disk) |
|---|
WIFI
| WiFi | No |
|---|
CAMERA
| Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
|---|
