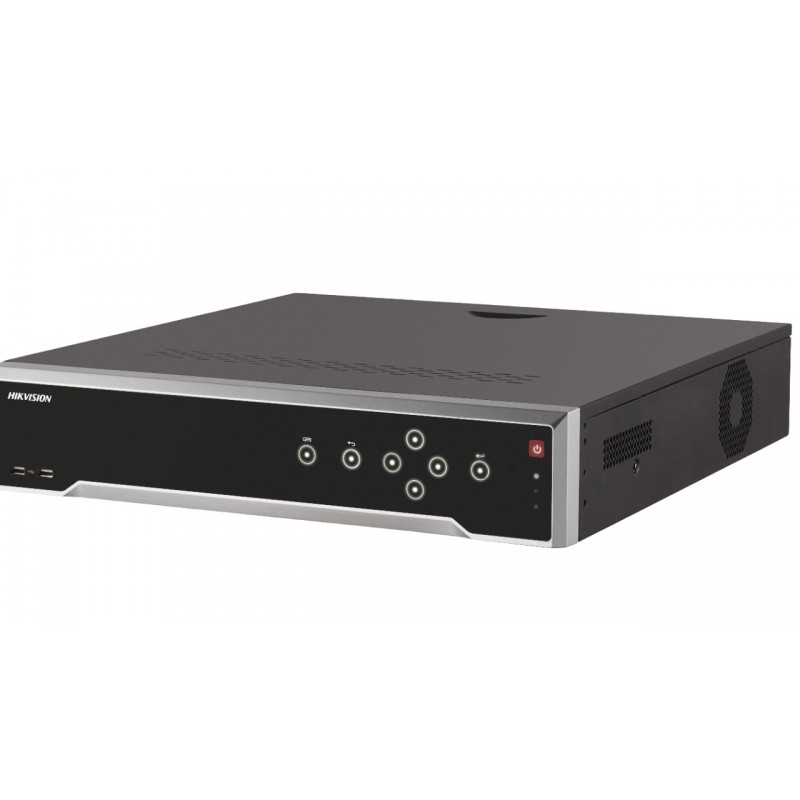

Hikvision DS-7716NI-K4 View larger

Hikvision DS-7716NI-K4

DS7716NIK4

New product

16-ch 1.5U 4K NVR

  • Up to 16 channel IP cameras can be connected
  • Supports decoding H.265+/H.265/H.264+/H.264 video formats
  • Up to 4K high-definition live view, storage and playback
  • Up to 8-ch @ 1080p decoding capacity
  • Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
  • 1 HDMI and 1 VGA interfaces: both interfaces support independent video output

More details

In Stock

Warning: Last items in stock!

Whatsapp MB WhatsApp

Rs 57,200

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-7716NI-K4 Features and Benefits

Features:

Hikvision DS-7716NI-K4 Description

16-ch 1.5U 4K NVR

  • Up to 16 channel IP cameras can be connected
  • Supports decoding H.265+/H.265/H.264+/H.264 video formats
  • Up to 4K high-definition live view, storage and playback
  • Up to 8-ch @ 1080p decoding capacity
  • Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
  • 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
  • 4 HDDs for continuous video recording
  • Compatible with third-party network cameras
  • Supports various specific function cameras, including thermal camera /fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
  • Channel-zero function ensures smooth remote live view and playback in low bandwidth environments

Specification

Decoding
  • Recording Resolution:                 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF,/2CIF/CIF/QCIF,
  • Decoding Format:                 H.265/H.265+/H.264+/H.264/MPEG4
  • Synchronous Playback:                 16-ch
  • Chassis:                 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)
External Interface

  • Two-Way Audio Input:                 1-ch, RCA (2.0 Vp-p, 1kΩ)
  • Network Interface:                 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
  • Serial Port:                 1 RS-485 (half-duplex), 1 RS-232, 1 keyboard (optional)
  • USB Interface:                 Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out:                 16/4
Video/ Audio Input

  • IP Video Input:                 16-ch
  • Incoming/Outgoing Bandwidth:                 160 Mbps 160 Mbps
General

  • Power:                 ≤ 80 W
  • Power Supply:                 100 to 240 VAC
  • Consumption (Without HDD):                 ≤ 20 W
  • Working Temperature:                 -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity:                 10 to 90 %
  • Dimensions (W × D × H):                 445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
  • Weight (Without Hard Disk):                 ≤ 5 kg (11. lb)
Video/ Audio Output

  • Audio Output:                 1-ch, RCA (Linear, 1 KΩ)
  • HDMI Output:                 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output:                 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Network Management

  • Network Protocols:                 TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk

  • SATA:                 4 SATA interfaces
  • Capacity:                 Up to 6TB capacity for each HDD
