Shinho X-97
X97
New product

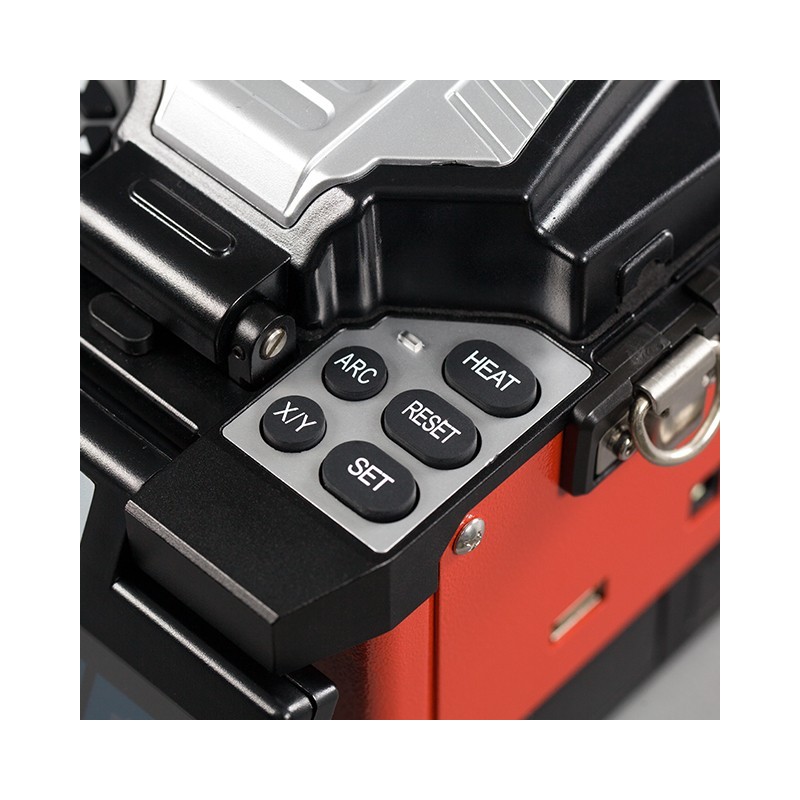

Shinho X-97 Fiber Optic Fusion Splicer Optical Fiber Fusion Splicing Machine
This product is no longer in stock
WhatsApp
Rating:
Be the first to write a review!
More info
Product Information:
Shinho X-97 Features and Benefits
Features:
Shinho X-97 Description
Features:
Handheld, Small, Light
Industrial standard screen
Various colors are available
Core to core digital alignment
7s splicing time, 26s tube heating time
5200mAh and pluggable Li-battery, Typical 250 cycles
ARC calibrated by temperature and air pressure automatically
Automatically switching on windshield and heater in 4 steps
Apply to bare fibers, indoor cables and jumper wires splicing
Product Description
| Fiber count | Single |
| Applicable fiber | SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657) |
| Typical splice loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
| Return loss | >60db |
| Fiber cleaved length | 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm ) |
| Splicing program | 40 groups |
| Operate mode | Manual, Automatic |
| Auto-heating | Available |
| Typical splicing time | 7 seconds |
| Tube heating time | 26 seconds for 60mm and 40mm shrinkable sleeves |
| Fiber view magnification | 250X(X or Y view), 125X(X and Y view) |
| Viewing method and | 2 CMOS cameras, 4.3 inch color LCD monitor |
| Storage of splice result | 4000 results |
| Loss evaluation | Available |
| Tension test | 1.8-2.2N |
| Interface | GUI menu interface, easier operation |
| Battery capacity | 5200mAh, typical 250 cycles(splice and tube heat), pluggable inner Li-battery |
| Power supply | Adaptor, input: AC100-240V(50/60HZ) |
| Electrode life | More than 4000 ARC discharges, can be replaced conveniently |
| Terminals | USB 2.0 port, for uploading splice results and upgrading software |
| Operating condition | Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC;Wind speed: |
| max 15m/s | |
| Dimension | 149mm(L)x120mm(W)x127mm(H) |
| Weight | 1.9kg including battery |
