View larger

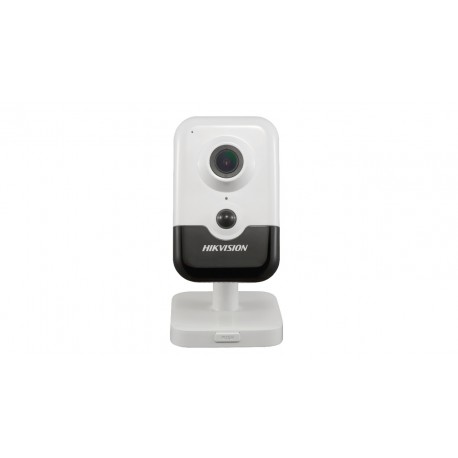

Hikvision DS-2CD2443G0-I(W)
DS2CD2443G0I(W)
New product
4 MP Indoor WDR Fixed Cube Network Camera
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Provides real-time security via built-in two-way audio
- Detects human body through passive infrared is sensitive to body temperature (PIR)
- -W: Wi-Fi Connection
This product is no longer in stock
WhatsApp
Rating:
Be the first to write a review!
More info
Product Information:
Hikvision DS-2CD2443G0-I(W) Features and Benefits
Features:
Hikvision DS-2CD2443G0-I(W) Description
4 MP Indoor WDR Fixed Cube Network Camera
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Provides real-time security via built-in two-way audio
- Detects human body through passive infrared is sensitive to body temperature (PIR)
- -W: Wi-Fi Connection
Specification
Camera
- Image Sensor: 1/3" Progressive Scan CMOS
- Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Yes
- Day &Night: IR Cut Filter
- Wide Dynamic Range: 120dB
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- DNR: 3D DNR
Lens
- Lens: 2.8/4 mm,
- Aperture: F1.6
- FOV: 2.8 mm, horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°,4 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93°
- Lens Mount: M12
Illuminator
- IR Range: 10 m
- Wavelength: 850nm
PIR
- PIR Angle: Horizontal: 90°, Vertical: 80°
- PIR Range: 10 m
Video
- Max. Resolution: 2688 × 1520
- Main Stream: 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream: 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
- Video Compression: Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- H.264 Type: Main Profile/High Profile
- H.265 Type: Main Profile
- Video Bit Rate: 32 Kbps to 16 Mbps
- SVC: Support H.264 and H.265 encoding
Audio
- Audio Compression: G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
- Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
- Environment Noise Filtering: Yes
- Audio Sampling Rate: 8kHz/16kHz/32kHz/44.1kHZ/48kHz
Smart Feature-Set
- Smart Event: Line crossing detection, intrusion detection, face detection
- Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Linkage Method: Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
- Image Enhancement: BLC/3D DNR/HLC
- Image Setting: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
- Day/Night Switch: Day/Night/Auto/Schedule
Wi-Fi
- Channel Bandwidth: 20M/40M
- Security: WPA, WPA2
- Transfer Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
- Wireless Range: 50 m
- Wireless Standards: IEEE 802.11b/g/n
- Frequency Range: 2.412 GHz to 2.4835 GHz
Network
- Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- Protocols: 802.11b: DQPSK, DBPSK, CCK,802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
- API: ONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous Live View: Up to 6 channels
- User/Host: Up to 32 users,3 levels: Administrator, Operator and User
- Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web Browser: Plug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+
- Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
- Firmware Version: 5.6.3
Interface
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
- Audio: 1 built-in mic, 1 built-in speaker, mono sound
- On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128G
General
- General Function: One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Reset: Yes
- Startup And Operating Conditions: -10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
- Power Supply: 12 VDC ± 25%, PoE (802.3af, class 3)
- Power Consumption And Current:12 VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug power,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
- Material: Plastic
- Dimensions: 102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
- Weight: Camera: Approx. 128 g (0.3 lb.)
Compression Standard
- H.264+: Main stream supports
- H.265+: Main stream supports
Smart Feature-Set
- Face Detection: Yes
