Black Copper BC505U

BC505U

New product

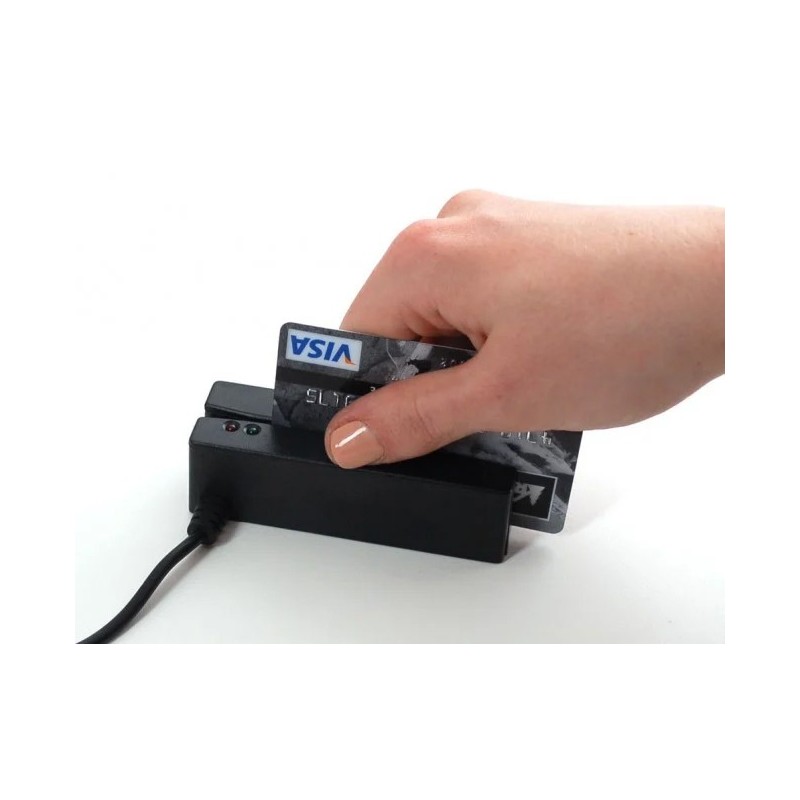

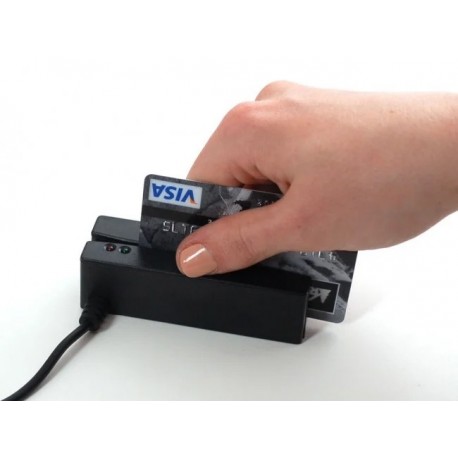

Black Copper BC505U USB Magnetic Stripe Reader is a contact card solution using magnetic card technology which has been successfully integrated with any USB device mobile and computer.

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 6,720

Call | Whatsapp

Karachi: +92-300-0339084 , +92-300-0778766 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Black Copper BC505U Features and Benefits

Features:

Black Copper BC505U Description

Description

When you are limited in space, this Black Copper BC505U usb magnetic stripe reader is an ideal solution which is well designed with badge length 90mm and also conform with ISO 7810-7813,JISII standards. This Black Copper BC505U usb magnetic stripe reader is also perfectly compatible with variety of bar code types. Through the USB interface, it works perfectly with any device to read the contact card. Price/performance is great with a life-cycle of up to 1,000,000 passes and a scan rate up to 1,000 mm per second.

 Features

  • Track read: ISO 1,2,3 (ATA, ABA, THRIFT/MINTS)

  • Triple track, 1st, 2nd & 3rd tracks

  • USB interface (Black) connected to any device

  • Record density of up to 210BPI

  • Capacity of up to 107 characters 5 bits/character

  • Cable: straight 5ft

 Specification

  • Operating Voltage DC 5V ±5%

  • Power Consumption 65mA

  • Scan Rate 100~1000mm per second

  • Track Information Tripe Tracks (1&2&3 Tracks)

  • Interface USB

  • Life Cycle 300,000passes(1,000,000 passes is optional)

  • Dimension (mm) 90x29x36 mm

  • Color Black

  • Read/Write Read(High/Low Coercive)
