Black Copper MSR605
MSR605
New product

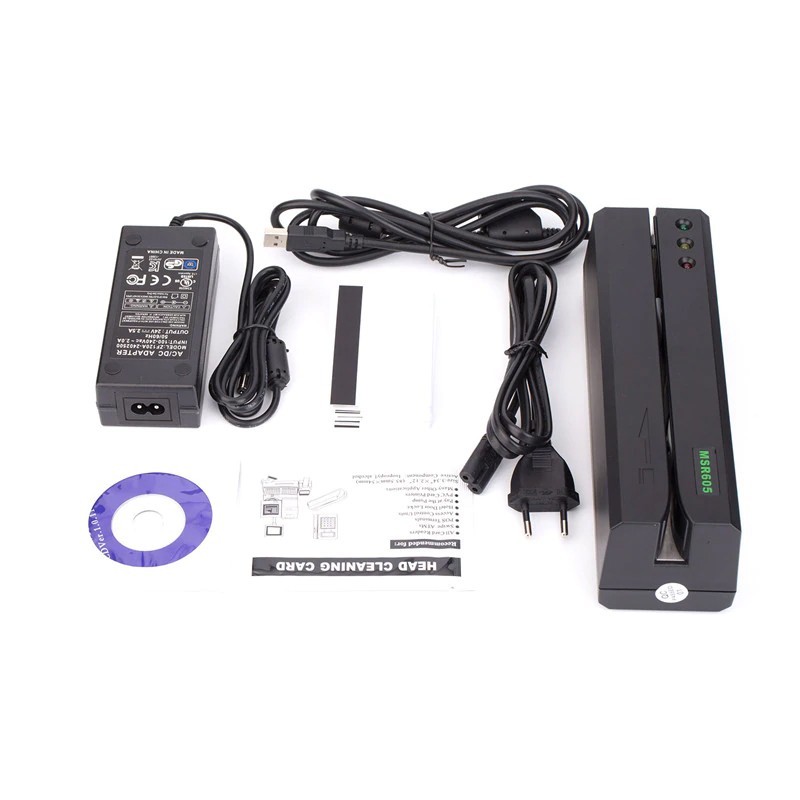

Black Copper MSR605 USB Magnetic Card Reader/Writer Encoder
This product is no longer in stock
WhatsApp
Rating:
Be the first to write a review!
More info
Product Information:
Black Copper MSR605 Features and Benefits
Features:
Black Copper MSR605 Description
Features
- Reading/Writing magnetic stripe card complied with ISO formats
- Read/Write High & Low Coercive (300~4000Oe)
- High/Low Coercivity encoding circuitry selectable on screen
- Program software for Windows 98/2000/Me/XP/VISTA/7
- Programming software for various read/write performance
- Sequential write function, up to 12 digits (1 up)
- Manual Swipe to read and/or write card with RS-232 /USB output
- Writing and verifying data on single, dual, or triple track in one swipe
- +9VDC, 2A Max external power adapter attached
- Dimensions of 212(L) x 64(W) x 63(H) mm
Specification
- Electrical
- Power requirements: +9VDC +/- 5%
- Consumption Typical: 350mA Max. 600mA plus for each writing track
- Power supply: External switching power 24V/2.5A
- Communication: Standard USB cable
- Ripple: 50mVp-p or less
- Dielectric strength: 500 VDC for 1 minute
- Performance
- Read card: Track1, Track2, Track3
- Bit per density: 210 bpi, 75/210bpi, 210 bpi
- Coercive force: Read/write/Erase 300-4000 oe Mag.card
- Card thickness: 0.76-1.2mm
- Read speed: STD card, Jitter +/-15%, Amp. 60% 5-55ips, 5-50ips, 5-50ips
-
- Write speed: 5-30ips
- Write jitter: Interval < +/- 10%, Sub-interval < +/- 12%
- Error rate: Read < 0.5% Write < 0.8%
- Head life Min. 1000K swipes for both read/write heads
- Mechanical
- Body material: ABS 94V-0
- Weight: Approx. 1.4kg
- Dimension: 212L x 64W x 63H mm
- Swipe: Manual, single direction
- Environments
- Operation: -10 to 55oC, 10 to 85% humidity
- Storage: -30 to 70oC, 10 to 90% humidity
- Safety Approval
- Rating: FCC Class B, CE ClassB, UL, cUL,ROHS
