Hardware Features

• One 16 port KVM switch is integrated in 1U height console; multiple computers can be controlled from a single monitor-keyboard-mouse console
• Standard VGA connector-Connect to a server or computer via a standard VGA connector
• Quick release tabs-Insert or remove the device with ease

High Performance Touchpad

• Touchpad with trackball- Eliminates the need for a separate, external mouse

Keyboard

• Multi-language support--English, Russian, German, French, Spanish and Italian, etc.
• Full size 99 keys keyboard with integrated number pad

Management Way

• Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
• Auto scan feature for monitoring user-selected computer
• Broadcast mode--operations simultaneously performed on all selected computers
• Hot pluggable --add or remove computers without having to power down the switch
• Quickly select your computer by naming the server or inputting SN number of the server
• On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, menu, and a power indicator

High Resolution

• 17” TFT LCD monitor with highlight, high definition and high resolution
• Resolution is up to 1280 x 1024 @60Hz

Cascade Feature

• Directly access and control up to 16 servers with single XL1716
• By cascading to another 31 switches, as many as 512 servers can be controlled

Security

• Two level password security--only authorized users view and control computers; up to four users and an administrator with a separate profile for each

Wide Compatibility

• Multi-platform Support-Compatible with Windows, Sun, Unix and Linux
• Supports server form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

Package Contents

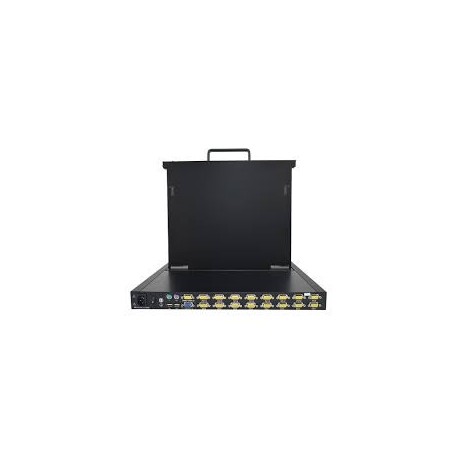

• 1x XL1716 LCD KVM Switch
• 1x Power Cord (Regional)
• 2x Mounting Rails
• 16x USB+VGA KVM Cable(1.8m/6ft)
• 1x Quick Start Guide
