  6. Hikvision DS-2CD1353G0-I

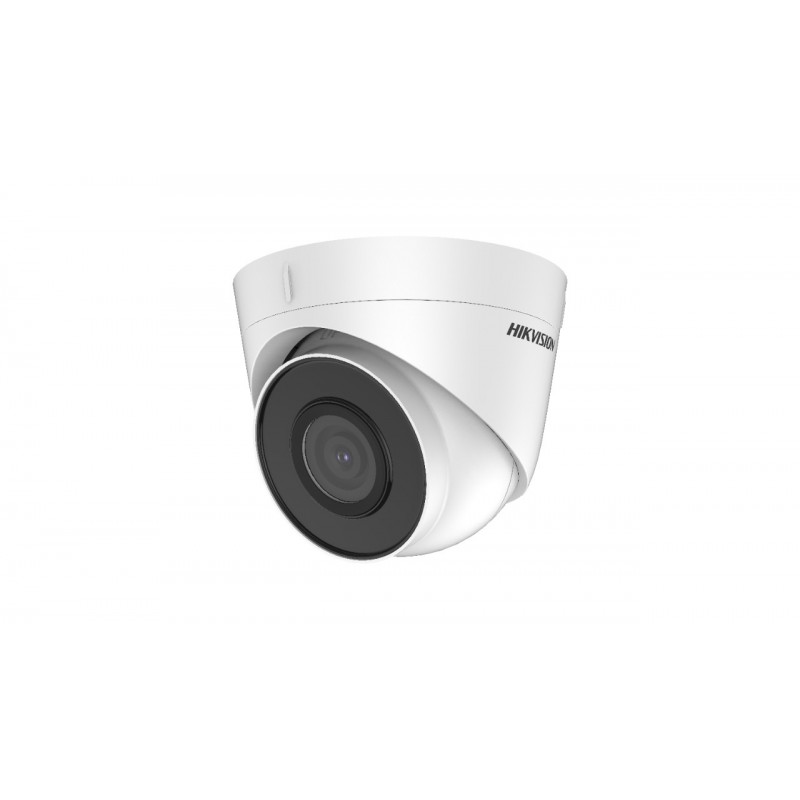

Hikvision DS-2CD1353G0-I View larger

Hikvision DS-2CD1353G0-I

DS2CD1353G0I

New product

5MP Fixed Turret Network Camera

  • High quality imaging with 5 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Water and dust resistant (IP67)
  • EXIR 2.0: advanced infrared technology with long IR range

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1353G0-I Features and Benefits

Features:

Hikvision DS-2CD1353G0-I Description

5MP Fixed Turret Network Camera

  • High quality imaging with 5 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Water and dust resistant (IP67)
  • EXIR 2.0: advanced infrared technology with long IR range

Specification

Camera
  • Image Sensor:           1/2.7" Progressive Scan CMOS
  • Min. Illumination:           Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
  • Shutter Speed:           1/3 s to 1/100,000 s
  • Slow Shutter:           Yes
  • Day &Night:           IR Cut Filter
  • Wide Dynamic Range:           120 dB
  • Angle Adjustment:           Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
  • DNR:           3D DNR
Lens
  • Lens:           2.8/4/6 mm
  • Auto-Iris:           No
  • Aperture:           F2.0
  • Focus:           Fixed
  • FOV:           2.8 mm, horizontal FOV: 100°, vertical FOV: 74°, diagonal FOV: 130°,4 mm, horizontal field of view: 75°, vertical FOV: 55°, diagonal FOV: 98°,6 mm, horizontal field of view: 49°, vertical FOV: 37°, diagonal FOV: 60°
  • Lens Mount:           M12
Illuminator
  • IR Range:           Up to 30 m
  • Wavelength:           850nm
Video
  • Max. Resolution:           2560 × 1920
  • Main Stream:           50Hz:12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720),60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
  • Sub Stream:           50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Video Compression:           Main stream: H.265/H.264 ,Sub-stream: H.265/H.264/MJPEG
  • H.264 Type:           Baseline Profile/Main Profile/High Profile
  • H.265 Type:           Main Profile
  • Video Bit Rate:           32 Kbps to 8Mbps
Smart Feature-Set
  • Region Of Interest:           Support 1 fixed region for main stream and sub-stream
  • Image Enhancement:           BLC/3D DNR
  • Image Setting:           Saturation, brightness, contrast and sharpness are adjustable via client software and web browser
  • Day/Night Switch:           Auto/Scheduled/Day/Night
Network
  • Network Storage:           NAS (NFS,SMB/CIFS)
  • Protocols:           TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour, 802.1x
  • API:           ONVIF(PROFILE S,PROFILE G), ISAPI
  • Simultaneous Live View:           Up to 6 channels
  • User/Host:           Up to 32 users,3 levels: Administrator, Operator and User
  • Client:           iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web Browser:           IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • Alarm Trigger:           Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full
Interface
  • Communication Interface:           1 RJ45 10M/100M self-adaptive Ethernet port
General
  • Firmware Version:           V5.5.52
  • General FunctionHeart:           beat, mirror, password protection, privacy mask, watermark, IP address filter
  • Startup And Operating Conditions:           -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Supply:           12 VDC ± 25%,PoE: 802.3af, class 3
  • Power Consumption And Current:           12 VDC, 0.5 A, max. 5 W,PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 6.5 W
  • Material:           Camera body: metal, bottom base: plastic
  • Dimensions:           Camera: Ø 110 mm × 93.2 mm (4.3" × 3.7"),With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Weight:           Camera: approx. 400 g (0.9 lb.),With package: approx. 600 g (1.3 lb.)
  • Interface Protection:           IP67
Compression Standard
  • H.264+:           Main stream supports
  • H.265+:           Main stream supports
