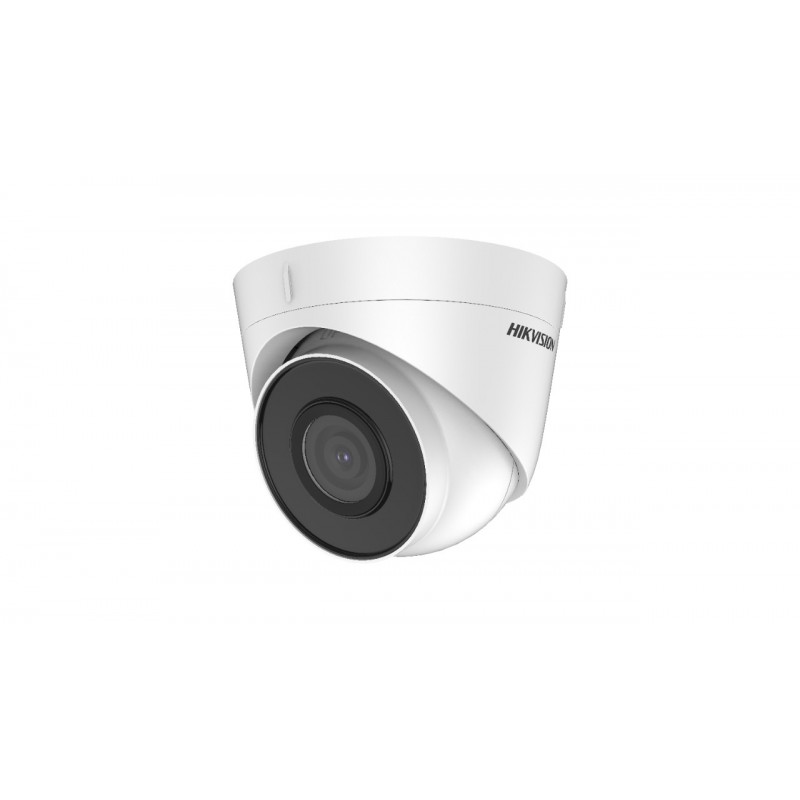

Hikvision DS-2CD1323G0E-I View larger

Hikvision DS-2CD1323G0E-I

DS2CD1323G0EI

New product

2 MP Fixed Turret Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting thanks to DWDR technology
  • Water- and dust- resistant (IP67)
  • EXIR 2.0: advanced infrared technology with long IR range.

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 8,320

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1323G0E-I Features and Benefits

Features:

Hikvision DS-2CD1323G0E-I Description

2 MP Fixed Turret Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting thanks to DWDR technology
  • Water- and dust- resistant (IP67)
  • EXIR 2.0: advanced infrared technology with long IR range.



Specification
Camera

  • Image Sensor:      1/2.8" progressive scan CMOS
  • Min. Illumination:      Color: 0.028Lux @ (F2.0, AGC ON)
  • Shutter Speed:      1/3 s to 1/100,000 s
  • Slow Shutter:      Yes
  • Day &Night:      IR cut filter
  • Wide Dynamic Range:      DWDR
  • Angle Adjustment:      Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
  • DNR:      3D DNR
Lens

  • Lens:      2.8 mm, 4 mm
  • Auto-Iris:      No
  • Aperture:      F2.0
  • Focus:      Fixed
  • FOV:      2.8 horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5°,4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°
  • Lens Mount:      M12
Illuminator

  • IR Range:      Up to 30 m
  • Wavelength:      850 nm
Video

  • Max. Resolution:      1920 × 1080
  • Video Compression:      Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
  • H.264 Type:      Main Profile/High Profile/Baseline Profile
  • H.265 Type:      Main Profile
  • Video Bit Rate:      32 Kbps to 8 Mbps
Smart Feature-Set

  • Region Of Interest:      1 fixed region for main stream

  • Image Enhancement:      BLC, 3D DNR
  • Image Setting:      Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night Switch:      Auto, scheduled, day, night
  • Main Stream Max. Frame Rate:      50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream Max. Frame Rate:      50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Network

  • Protocols:      TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
  • API:      ONVIF (PROFILE S), ISAPI
  • Simultaneous Live View:      Up to 6 channels
  • User/Host:      Up to 32 users,3 levels: Administrator, Operator and User
  • Client:      iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web Browser:      IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • Alarm Trigger:      Motion detection, video tampering alarm, illegal login
Interface

  • Communication Interface:      1 RJ45 10M/100M self-adaptive Ethernet port
General

  • Firmware Version:      V5.5.83
  • General Function:      Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
  • Startup And Operating Conditions:      -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
  • Power Supply:      12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
  • Material:      Camera body: metal, bottom base : plastic
  • Dimensions:      Camera: Ø 110 mm × 93.2 mm (4.3" × 3.7"),With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Weight:      Camera: approx. 360 g (0.8 lb.),With package: approx. 610 g (1.3 lb.)
  • Power Consumption And Current:      12 VDC, 0.3 A, max: 3.5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W
  • Interface Protection:      IP67
