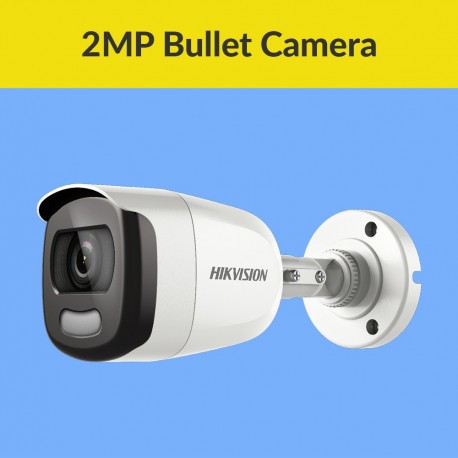

2 MP Ultra Low Light PIR Fixed Mini Bullet Camera

• 2 MP high performance PIR bullet camera
• PIR detection, strobe light alarm and alarm out to warn off intruders in real time
• Strong night performance, capturing images in ultra-low light down to 0.003 lux
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• EXIR 2.0: advanced infrared technology with 20 m IR distance
• Water and dust resistant (IP67)

Specification

• Camera
• Image Sensor: 2MP CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• Min. Illumination: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Day & Night: ICR
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
• Signal System: PAL/NTSC
• Light Alarm: Yes

• Lens
• Lens Type: 2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 103.5°, vertical FOV: 55°, diagonal FOV: 119°

  3.6 mm, horizontal FOV: 79.1°, vertical FOV: 43°, diagonal FOV: 92°

• Lens Mount: M12

• Image
• Image Parameters Switch: STD/HIGH-SAT
• Image Settings: Brightness, Sharpness, DNR , Mirror, Smart IR
• Frame Rate: TVI: 1080p@25fps/30fps
• Day/Night Mode: Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR): ≥130 dB
• White Balance: Auto/Manual
• White Light: AUTO/OFF
• AGC: Support

• Interface
• Video Output: 1 HD analog output

• General
• Material: Metal
• Dimension: 68 mm × 70 mm × 179.8 mm (2.68" × 2.76" × 7.08") (Approx. 358 g (0.79 lb.)
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication: HIKVISION-C
• Language: English
• Power Supply

  12 VDC ± 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• Consumption: Max. 3.9 W
• IR Range: Up to 20 m

• Approval
• Protection: IP67
