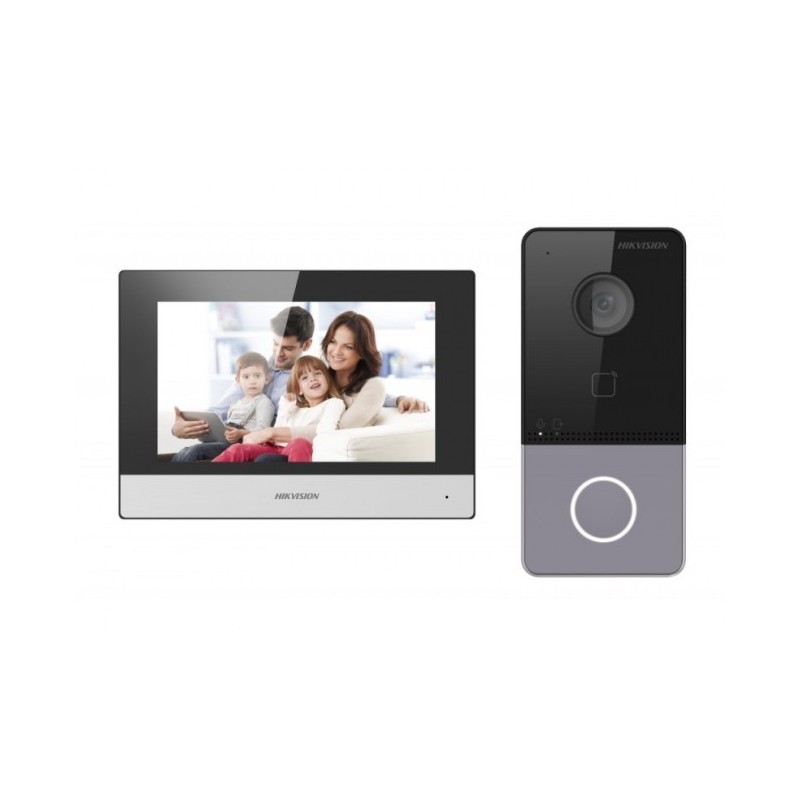

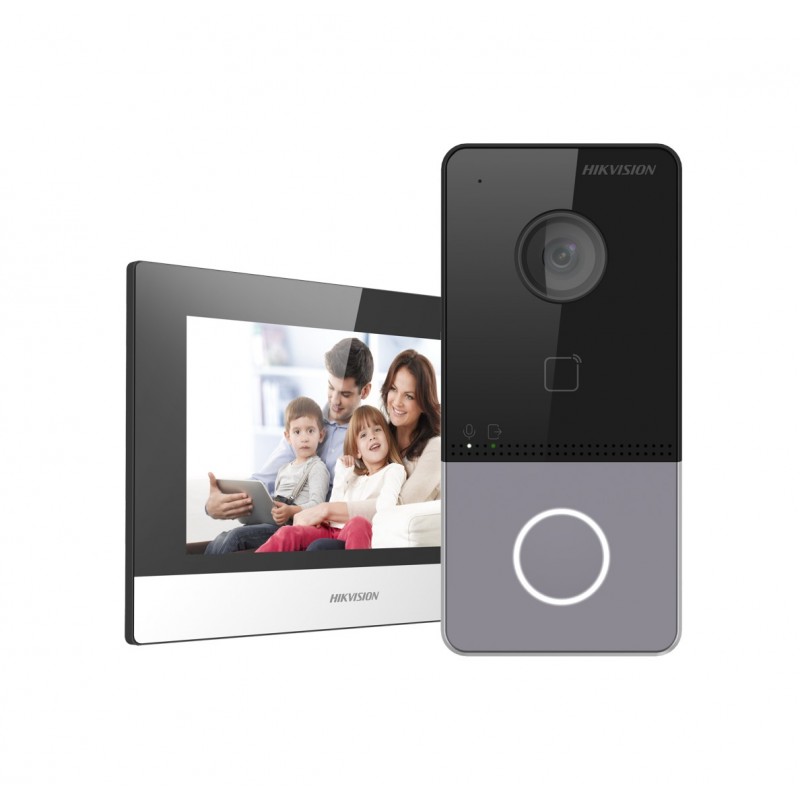

IP Video Intercom Kit

• IP video intercom kit for villa or house, only one call button;
• DS-KV6113-WPE1 x1;
• DS-KH6320-WTE1 x1;
• PSU x2;

Specification

• Door Station/System Parameters
• Operation System Embedded Linux operation system
• Flash32 MB
• RAM128 MB

• Door Station/Video Parameters
• Camera2MP HD camera
• Night Vision Low illumination IR supplement mode:3 m
• Backlight Compensation Support
• Digital Noise Reduction Support
• WDR True WDR
• Field Of View Horizontal: 129° Vertical: 75°
• Video Compression StandardH.264
• Stream Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
• Motion Detection Support
• Flash-Avoid Frequency50 Hz, 60 Hz

• Door Station/Audio Parameters
• Audio Input Built-in omnidirectional microphone
• Audio Output Built-in loudspeaker
• Audio Quality Noise suppression and echo cancellation
• Audio Compression StandardG.711 U
• Audio Compression Rate64 Kbps
• Audio Intercom Two-way audio communication

• Door Station/Network Parameters
• Network Protocol TCP/IP, RSTP
• Wired Network10/100 Mbps Ethernet

• Door Station/Device Interfaces
• RS-4851
• Alarm Input4
• Debugging Port1
• Grounding1
• TAMPER Switch1

• Door Station/General
• Power Consumption＜ 10 W
• Working Temperature-40° C to 53° C(-40° F to 127.4° F)
• Working Humidity10% to 95%
• Dimension138 mm × 65 mm × 27 mm
• Installation Surface mounting
• Protection LevelIP65
• Indicator2
• Power Supply

  IEEE 802.3af, standard PoE

  12 VDC

• Indoor Station/System Parameters
• Operation System Embedded Linux operation system
• Memory128 MB
• Flash32 MB

• Indoor Station/Display Parameters
• Display Screen7-inch colorful TFT screen
• Display Resolution1024 × 600
• Operation Method Capacitive touch screen

• Indoor Station/Audio Parameters
• Audio Input Built-in omnidirectional microphone
• Audio Output Built-in loudspeaker
• Audio Quality Noise suppression and echo cancellation
• Audio Compression StandardG.711 U
• Audio Compression Rate64 Kbps

• Indoor Station/Network Parameters
• Wired Network10/100 Mbps self-adaptive
• Wireless Network Wi-Fi 802.11 b/g/n
• Protocol TCP/IP, SIP, RTSP
• RS-4851 RJ-45 10/100 Mbps self-adaptive

• Indoor Station/Device Interfaces
• RS-4851
• Alarm Input8-ch alarm inputs
• Relay Output2
• TF Card Max to 32 G, SD 2.0 or lower version

• Indoor Station/General
• Power Consumption≤ 6 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimension (L X W X H)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
