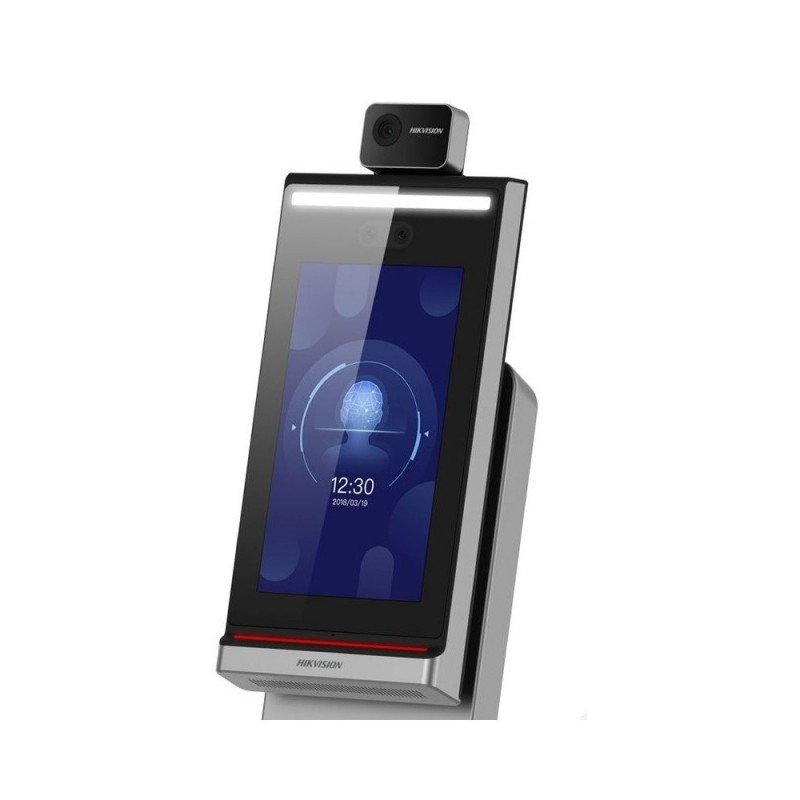

Hikvision DS-K5604A-3XF/V View larger

Hikvision DS-K5604A-3XF/V

DSK5604A3XF/V

New product

Face Recognition Terminal

Hikvision DS-K5604A-3XF/V Deep Learning AI Non-contact / Touchless / Touchfree IP Standalone Face Recognition Access Control Terminal With Body-Temperature-Measurement Fever-Screening Fever-Detection Function and Floor Kiosk Stand – Built-in Mic – 2-Way Audio – Supports 50000 Faces Database – Wiegand & Relay Ports.

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 0

Call | Whatsapp

Karachi: +92-300-0339084 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-K5604A-3XF/V Features and Benefits

Features:

Hikvision DS-K5604A-3XF/V Description

Description

Hikvision DS-K5604A-3XF/V Deep Learning AI Non-contact / Touchless / Touchfree IP Standalone Face Recognition Access Control Terminal With Body-Temperature-Measurement Fever-Screening Fever-Detection Function and Floor Kiosk Stand – Built-in Mic – 2-Way Audio – Supports 50000 Faces Database – Wiegand & Relay Ports.

Features :-

  • Plug & Play: Rapid deployment. No wiring required, installation or configuration
  • Uncooled vanadium oxide sensor to measure the temperature of a target
  • Accuracy of ± 0.5 ° C, up to 0.3 ° C with the addition of the Black Body
  • Recognition distance: 0.3 to 2 meters
  • Temperature measurement range from 30 ° to 45 ° C
  • Very fast temperature measurement: face detection and temperature measurement without identity authentication
  • Facial recognition performed in ≤ 0.2 seconds
  • Facial recognition accuracy rate ≥ 99%
  • Several authentication modes with temperature measurement available
  • Can trigger a voice alert if fever is detected
  • Forced mask with alert (possibility to send a voice message if a person is not wearing a mask)
  • Display of temperature measurement results on the authentication page
  • Activation of a voice message when a fever is detected
  • Configurable door status (open / closed) during fever detection
  • Can communicate with a turnstile via the IO or Wiegand exit to close it in case of fever detection
  • Transmission of temperature information and recording of data online and offline to the client software
  • All in one solution with integrated support



Specifications

Model DS-K5604A-3XF/V
Operation system Linux

Temperature measurement

 Sensor Vanadium Oxide uncooled sensor
Resolution 120 × 160
Frame rate 25 fps
Temperature range 30 °C to 45 °C (86 °F to 113 °F)
Temperature accuracy ± 0.5 °C, without black body calibration
Measuring distance 0.3 to 2 m
 Screen Screen 10.1-inch touch screen
Resolution 1024 × 600
Camera 2 MP dual-lens camera
Face Recognition distance 0.3 m to 2 m
Recognition duration ＜ 0.2 s
Face anti-spoofing Support
Capacity Face capacity 50,000
Event capacity 100,000
Communication TCP/IP
Interface LAN × 1, RS-485 × 1, Wiegand × 1, USB × 2, IO output × 1, IOinput × 2, lock × 1, door contact × 1, TAMPER × 1

Other

 Audio prompt Support
Two-way audio Support
Power supply 12 VDC/2 A
Working humidity 10 to 90% (no condensing)
Working temperature 0 °C to 50 °C (32 °F to 122 °F)
Application environment Indoor and windless environment use only
