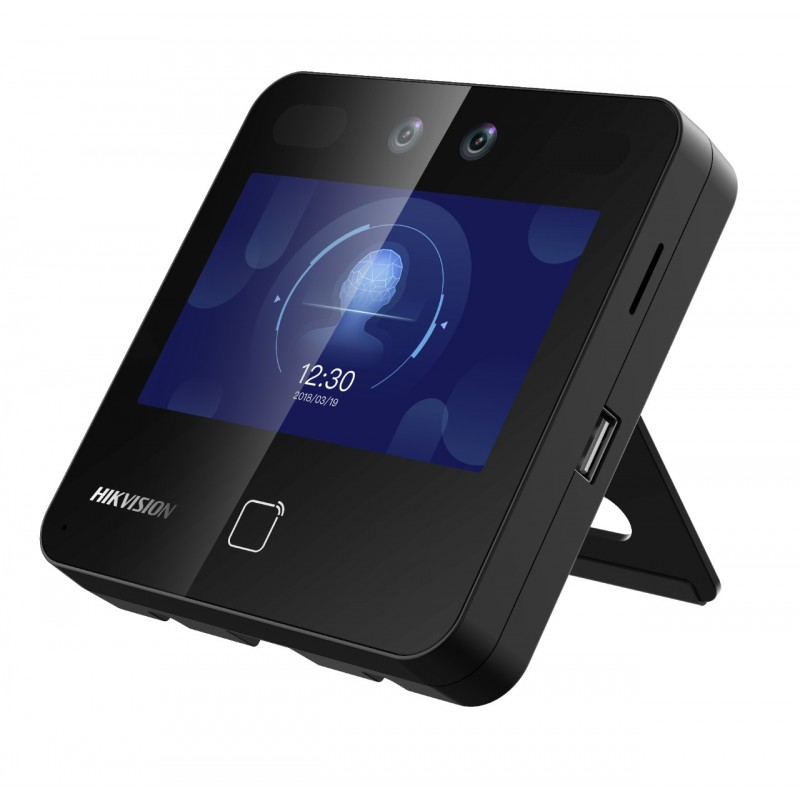

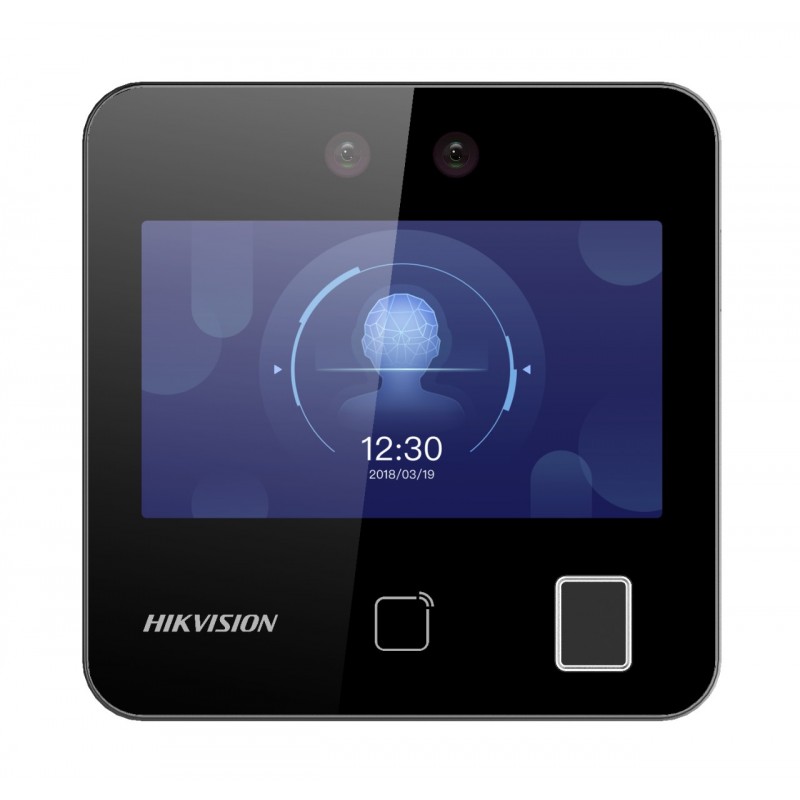

New Hikvision DS-K1T343MFWX View larger

Hikvision DS-K1T343MFWX-B

DSK1T343MFWXB

New product

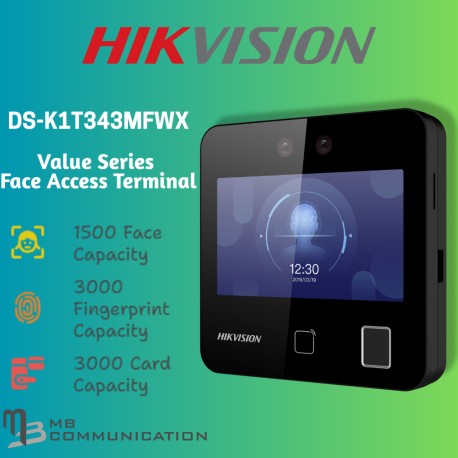

Value Series Face Access Terminal:

Hikvision Value Series Face Access Terminal DS-K1T343MFWX adopts deep learning algorithm, which helps to recognize the face faster with higher accuracy. It also supports multiple authentication modes: face/card/fingerprint authentication, etc

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 4,500

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-K1T343MFWX-B Features and Benefits

Features:

Hikvision DS-K1T343MFWX-B Description

Specification:

    • Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
    • Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
    • Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
    • Supports ISAPI, ISUP5.0
    • Configuration via the web client
    • Face recognition. Distance: 0.3 m to 1.5 m
    • Duration < 0.2 s/User
    • Accuracy rate ≥ 99%
    • Supports power supply by battery in the bracket
    • Supports access control local time and attendance function
  • System
  • Operating systemLinux
  • Display
  • Screen size4.3 inch
  • Operation methodCapacitive touch screen
  • TypeLCD
  • Resolution480 × 272
  • Video
  • Lens2
  • Resolution2 MP
  • Video standardPAL (Default) and NTSC
  • Network
  • Wired networkSupport
  • Wi-FiSupport, 2.4 G, 802.11b/g/n
  • Interface
  • Network interface1 RJ-45, 10/100 M self-adaptive
  • Lock control1
  • Exit button1
  • Door contact input1
  • TAMPER1
  • RS-4851 RS-485 (Half duplex, HIKVISION)
  • Wiegand1 Wiegand (W26, W34)
  • USB1
  • Capacity
  • Face capacity1,500
  • Fingerprint capacity3,000
  • Card capacity3,000
  • Event capacity150,000
  • Authentication
  • Face recognition distance0.3 to 1.5 m
  • Face recognition accuracy rate＞99%
  • Face recognition duration＜ 0.2 s
  • Fingerprint recognition duration＜1 s
  • Card typeM1 card
  • Card reading frequency13.56 MHz
  • General
  • Power supply

    12 VDC, 1 A (power adapter included)

    Supports power supply by battery in the bracket

  • Working temperature-10 °C to 40 °C (14 °F to 104 °F)
  • Working humidity0 to 90% (No condensing)
  • Dimensions118.4 mm × 118.4 mm × 21.8 mm (4.66" × 4.66" × 0.86")
  • InstallationWall mounting, base mounting
  • Weight

    Gross weight: 0.71 kg (1.57 lb)

    Net weight: 0.23 kg (0.51 lb)

  • Application environmentIndoor
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese
  • Function
  • Face anti-spoofingSupport
