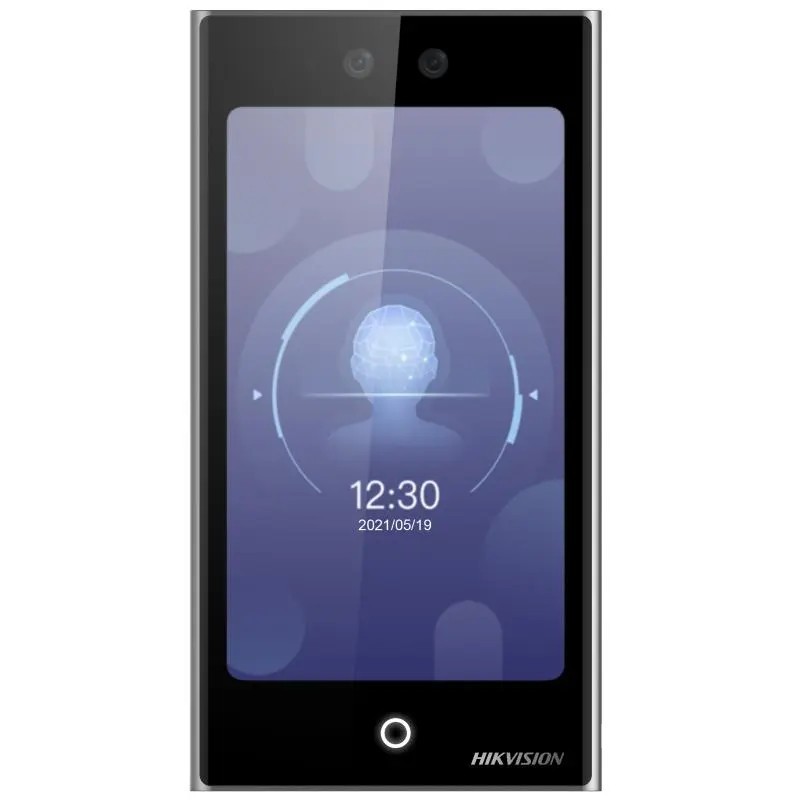

Pro Face Access Terminal

• 7-inch LCD touch screen, 2-megapixel wide-angle lens
• Recognition distance: 0.3 to 3 m
• Face recognition duration ＜ 0.2 s/User
• Face recognition accuracy rate ≥ 99%
• Built-in Mifare card, Felica card, and DESfire card reading module (Presents the card on the screen to authenticate)
• Face mask detection
• 10,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 50,000 card capacity, and 150,000 event capacity
• Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
• Supports single person and multiple people (Up to 5 people) recognition

Specifications

• System
• Operation System: Linux

• Display
• Size: 7-inch
• Type: Touch screen

• Video
• FOV: HFOV= 75.5°; VFOV= 41.5°; DFOV= 87°
• Pixel: 2 MP
• Lens: Dual-lens
• Video Standard: PAL (Default)/NTSC

• Network
• Wired Network: Support 10/100/1000 Mbps self-adaptive
• Wi-Fi: Not support

• Interface
• Alarm Input: 1
• Alarm Output: 1
• USB: 1 (For Module)
• Audio Output Interface: 1 (3.5 mm)
• Network Interface: 1
• RS485: 1
• Wiegand: 1
• Lock Output: 1
• Exit Button: 1
• Door Contact Input: 1
• TAMPER: 1

• Capacity
• Card Capacity: 50,000
• Face Capacity: 10,000
• Event Capacity: 150,000

• Authentication
• Face Recognition Accuracy Rate: ≥ 99%
• Card Type: Mifare 1 card, DESfire card, Felica card
• Card Reading Distance: 0 to 3 cm
• Card Reading Duration: ＜ 1 s
• Face Recognition Duration: ＜ 0.2 s per person
• Face Recognition Distance: 0.3 to 3 m

• Function
• Two-Way Audio: Support
• Time Synchronization: Support
• Face Anti-Spoofing: Support
• Live View: Support
• Audio Prompt: Support

• General
• Power Supply: 12 VDC to 24 VDC/2 A
• Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Working Humidity: 0 to 90% (no condensing)
• Protective Level: IP65
• Dimensions: 110.5 mm × 209.2 mm × 24 mm (4.35" × 8.24" × 0.94")
• Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean
• Weight

  Gross Weight: 1.06 kg (2.34 lb)

  Net Weight: 0.57 kg (1.26 lb)

• Face Recognition Terminal/Capacity
• Fingerprint Capacity: 10,000 (With fingerprint module)
