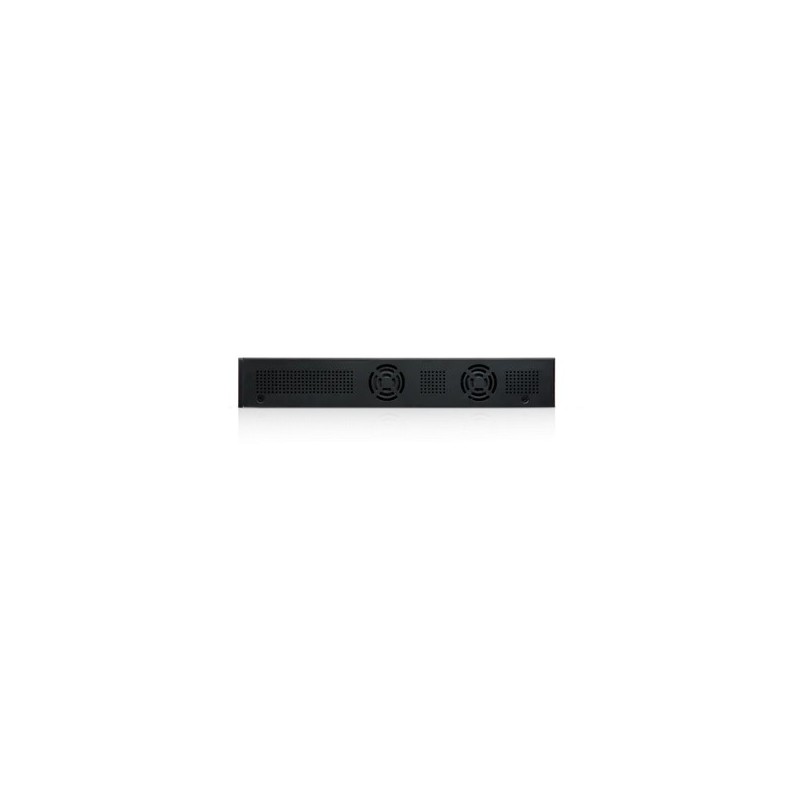

Ubiquiti ES-24-250W

ES24250W

New product

UISP EdgeSwitch PoE+ 24 (250W)

Layer 2/3, PoE+ switch with (24) Gigabit RJ45 ports, (2) SFP ports, and a 250W power supply.

Advanced Switching Technology for the Masses. Build and expand your network with Ubiquiti EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 122,300

Call | Whatsapp

Karachi: +92-300-0339084 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Ubiquiti ES-24-250W Features and Benefits

Features:

Ubiquiti ES-24-250W Description

Layer 2/3, PoE+ switch with (24) Gigabit RJ45 ports, (2) SFP ports, and a 250W power supply.

Advanced Switching Technology for the Masses. Build and expand your network with Ubiquiti EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Features:

  • (24) Gigabit RJ45 Ports
  • (2) SFP Ports
  • (1) Serial Console Port
  • Non-Blocking Throughput: 26 Gbps
  • Switching Capacity: 52 Gbps
  • Forwarding Rate: 38.69 Mpps
  • Maximum Power Consumption: 250W
  • Supports PoE/PoE+ and 24V Passive PoE
  • Rackmountable

Specification

Mechanical
Dimensions 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24")
Weight 4.7 kg (10.4 lb)
Hardware
Networking Interfaces (24) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
Total Non-Blocking Throughput 26 Gbps
Switching Capacity 52 Gbps
Forwarding Rate 38.69 Mpps
Max. Power Consumption
Includes PoE Output
Excludes PoE Output		 250W
30W
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 250W DC
LEDs Per Port
RJ45 Data Ports
SFP+/SFP Data Ports		 PoE, Speed/Link/Activity
Speed/Link/Activity
Rackmount Yes, 1U High
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
Shock and Vibration ETSI 300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
PoE Per Port
PoE Interfaces PoE/PoE+ (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range PoE+ Mode 50–57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V
