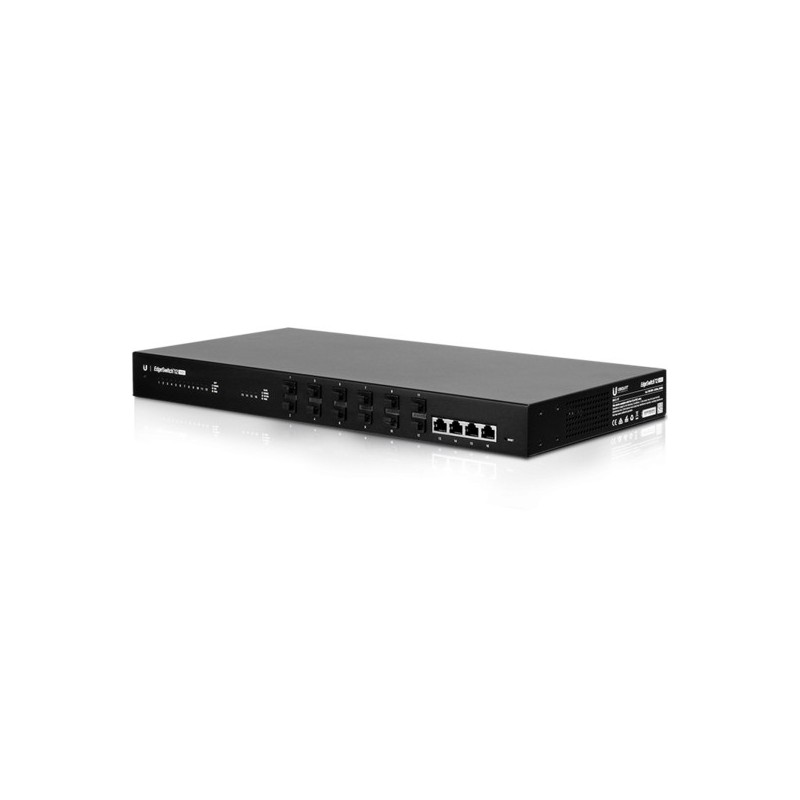

Ubiquiti ES-12F-EU

ES12FEU

New product

EdgeSwitch 12F

Rack-mountable, Gigabit switch with (12) SFP ports and (4) Gigabit RJ45 ports.

Advanced Switching Technology for the Masses Build and expand your network with Ubiquiti EdgeSwitch® Fiber, part of the EdgeMAX® line of products. The EdgeSwitch Fiber is a fully managed, Gigabit fiber switch, delivering robust performance and intelligent switching for high-bandwidth networks.

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 80,040

Call | Whatsapp

Karachi: +92-300-0339084 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Ubiquiti ES-12F-EU Features and Benefits

Features:

Ubiquiti ES-12F-EU Description

  • Model No
 ES-12F-EU
  • Forwarding Rate
 23.81 Mpps
  • Management Interface
 (1) RJ45 Serial Port, Ethernet In/Out Band
  • Switching Capacity
 32 Gbps
  • Networking Interface
 (8) 100/1000 Mbps SFP Ethernet Ports
(4) 1000 Mbps SFP Ethernet Ports
(4) 10/100/1000 Mbps RJ45 Ethernet Ports
  • Power Supply
 AC/DC, Internal, 56W DC
  • Max. Power Consumption
 56W

Rack-mountable, Gigabit switch with (12) SFP ports and (4) Gigabit RJ45 ports.

Advanced Switching Technology for the Masses Build and expand your network with Ubiquiti EdgeSwitch® Fiber, part of the EdgeMAX® line of products. The EdgeSwitch Fiber is a fully managed, Gigabit fiber switch, delivering robust performance and intelligent switching for high-bandwidth networks. The EdgeSwitch Fiber offers an extensive suite of advanced Layer 2 switching features and protocols, and also provides Layer 3 routing capability.

Features:

  • (12) Gigabit SFP ports
  • (4) Gigabit RJ45 ports
  • (1) Serial console port
  • Non-blocking throughput: 16 Gbps
  • Switching capacity: 32 Gbps
  • Forwarding rate: 23.81 Mpps
  • Maximum AC power consumption: 56W
  • Rackmountable with rack-mount brackets (included)
  • DC input option (redundant or stand-alone)
EdgeSwitch 12F
Dimensions 443 x 221 x 43 mm
(17.44 x 8.70 x 1.69")
Weight
Rack-mount brackets
Included rack-mount brackets excluded		 2.68 kg (5.91 lb)
2.59 kg (5.71 lb)
Total non-blocking line rate 16 Gbps
Max. AC power consumption 56W
Power method
AC
DC
100-240VAC/50-60 Hz, Universal Input
DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Power supply AC/DC, Internal, 56W DC
Supported voltage range 100 to 240VAC 25 to 16VDC
LEDs per data port Speed/Link/Activity
Networking interfaces (8) 100/1000 Mbps SFP Ethernet ports
(4) 1000 Mbps SFP Ethernet ports
(4) 10/100/1000 Mbps RJ45 Ethernet ports
Management interface (1) RJ45 Serial port out-of-band, Ethernet in-band
Rackmount Yes, 1U High
ESD/EMP protection Air: ± 24 kV, Contact: ± 24 kV
Shock and vibration ETSI300-019-1.4 standard
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
