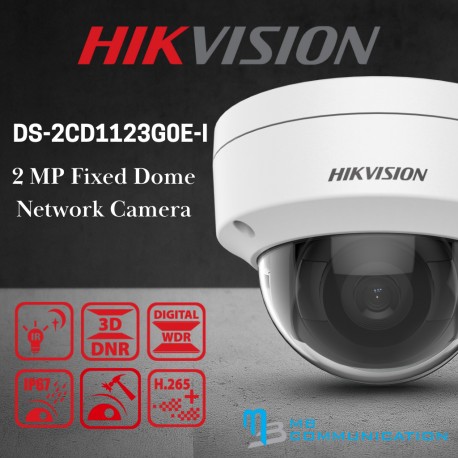

Hikvision DS-2CD1123G0E-I View larger

Hikvision DS-2CD1123G0E-I

DS2CD1123G0EI

New product

2 MP Fixed Dome Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting thanks to DWDR technology
  • Water- and dust- resistant (IP67), vandal proof (IK10)

More details

In Stock

Whatsapp MB WhatsApp

Rs 7,800

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-2CD1123G0E-I Features and Benefits

Features:

Hikvision DS-2CD1123G0E-I Description

2 MP Fixed Dome Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting thanks to DWDR technology
  • Water- and dust- resistant (IP67), vandal proof (IK10)



Specification

Camera
  • Image Sensor:         1/2.8" progressive scan CMOS
  • Min. Illumination:         Color: 0.028Lux @ (F2.0, AGC ON)
  • Shutter Speed:         1/3 s to 1/100, 000 s
  • Slow Shutter:         Yes
  • Day &Night:         IR cut filter
  • Wide Dynamic Range:         DWDR
  • Angle Adjustment:         Pan: 0° to 355°, tilt: 0° to 75°
  • DNR:         3D DNR
Lens
  • Lens:         2.8 mm, 4 mm
  • Auto-Iris:         No
  • Aperture:         F2.0
  • Focus:         Fixed
  • FOV:         2.8 horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5°,4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°
  • Lens Mount:         M12
Illuminator
  • IR Range:         Up to 30 m
  • Wavelength:         850 nm
Video
  • Max. Resolution:         1920 × 1080
  • Video Compression:         Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
  • H.264 Type:         Main Profile/High Profile/Baseline Profile
  • H.265 Type:         Main Profile
  • Video Bit Rate:         32 Kbps to 8 Mbps
Smart Feature-Set
  • Region Of Interest:         1 fixed region for main stream
  • Image Enhancement:         BLC, 3D DNR
  • Image Setting:         Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night Switch:         Auto, scheduled, day, night
  • Main Stream Max. Frame Rate:         50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream Max. Frame Rate:         50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Network
  • Protocols:         TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
  • API:         ONVIF (PROFILE S), ISAPI
  • Simultaneous Live View:         Up to 6 channels
  • User/Host:         Up to 32 users,3 levels: Administrator, Operator, and User
  • Clienti:         VMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web Browser:         IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • Alarm Trigger:         Motion detection, video tampering alarm, illegal login
Interface
  • Communication Interface:         1 RJ45 10M/100M self-adaptive Ethernet port
General
  • Firmware Version:         V5.5.83
  • General Function:         Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
  • Startup And Operating Conditions:         -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
  • Power Supply:         12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
  • Material:         Front cover: plastic, back cover & bracket: metal
  • Dimensions:         Camera: Ø 111 mm × 82.4 mm (4.4" × 3.2") With package: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
  • Weight:         Camera: Approx. 400 g (0.9 lb.), With package: Approx. 600 g (1.3 lb.)
  • Power Consumption And Current:         Camera: Approx. 400 g (0.9 lb.) With package: Approx. 600 g (1.3 lb.)
  • Ingress Protection:         IP67, IK10
