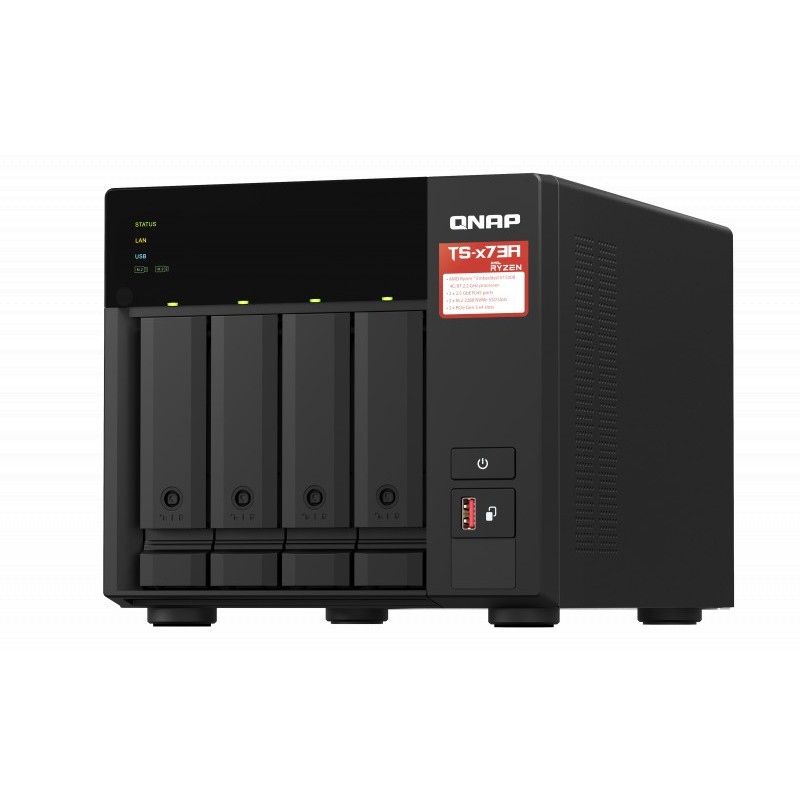

QNAP TS-473A

TS473A

New product

AMD Ryzen™ quad-core 2.2 GHz 2.5GbE NAS supports M.2 NVMe SSD and PCIe expansion for adding 10GbE high-speed connectivity and M.2 SSD; QTS and QuTS hero dual operating system for greater flexibility

Featuring an AMD Ryzen™ V1000 series V1500B quad-core processor that delivers great system performance with up to quad-core / 8 threads and Turbo Core up to 2.2 GHz.

More details

This product is no longer in stock

Rs 245,000

More info

Product Information:

QNAP TS-473A Features and Benefits

Features:

QNAP TS-473A Description

Featuring an AMD Ryzen™ V1000 series V1500B quad-core processor that delivers great system performance with up to quad-core / 8 threads and Turbo Core up to 2.2 GHz. The TS-473A features two 2.5GbE RJ45 ports and two PCIe Gen 3 slots for you to flexibly deploy 5GbE/10GbE networks. Two M.2 NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization. The TS-473A supports QTS and QuTS hero, allowing users to flexibly switch operating systems based on their requirements.

  • 2.5GbE connectivity

    Both 2.5GbE ports are backward compatible with 1GbE/ 100MbE speeds. Up to 5 Gbps transfer speeds can be achieved by using port trunking.

  • Flexible PCIe expansion

    Add extra functionality with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel.

  • GPU applications

    Supports entry-level NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.

  • SSD cache acceleration

    Features two M.2 PCIe NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization.

  • Virtualization applications

    Host containerized applications and virtual machines with various operating systems.

  • Supports QTS/QuTS hero OS

    Features QTS operating system and supports switching to ZFS-based QuTS hero for greater reliability.

Hardware Specifications

CPU AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor
CPU Architecture 64-bit x86
Graphic Processors Optional via a PCIe adapter
Floating Point Unit Yes
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding Optional via a PCIe adapter
System Memory 8 GB SODIMM DDR4 (1 x 8 GB)
Maximum Memory 64 GB (2 x 32 GB)
Memory Slot 2 x SODIMM DDR4
Support ECC memory.
For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
M.2 Slot 2 x M.2 2280 PCIe Gen3 x1 slots
The M.2 SSD is not included.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink on the M.2 SSD.
SSD Cache Acceleration Support Yes
GPU pass-through Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via a PCIe adapter
10 Gigabit Ethernet Port Optional via a PCIe adapter
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe Slot 2
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x4
USB 3.2 Gen 2 (10Gbps) Port 3 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps.
1 x Type-C USB 3.2 Gen 1 5V/1A 5Gbps.
HDMI Output Optional via a PCIe adapter
Form Factor Tower
LED Indicators Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2
Buttons Power, Reset, USB Auto Copy
Dimensions (HxWxD) 188.2 × 199.3 × 280.8 mm.
Weight (Net) 5.03 kg.
Weight (Gross) 6.04 kg.
Operating Temperature 0 - 40 °C (32°F - 104°F).
Storage Temperature -20 - 70 °C (-4°F - 158°F).
Relative Humidity 5-95% RH non-condensing, wet bulb: 27 °C (80.6 °F).
Power Supply Unit 250W, 100-240V AC, 50-60Hz, 3.5A.
Power Consumption: HDD Sleep Mode 19.576 W.
Power Consumption: Operating Mode, Typical
29.792 W.
Tested with drives fully populated.
Fan System fan: 1 x 120mm
CPU fan: 1 x 60mm
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 2000.
