◆ The large scan window

◆ The Perfect design, functional diversity

◆ support 1d&2d barcode on screen and paper

◆ Extremely fast reading speed, compatible with motion tolerance

Highlights

♦ Laser-free Aiming
Laser-free aiming provides an accurate scan indication, creating a customer-friendly operating environment while removing the risk of eye injury.
♦ Interface Flexibility
Choose USB HID KEYBOARD, USB VCP or RS-232 connectivity.
♦ Easily Scans Barcodes on Screens
Scanning paper barcode with high speed;Easily scans barcodes directly from mobile device or computer screens, almost as if they were printed on paper.
♦ Durable
The BC-8000G can withstand up to drop to concrete from distances as high as 1.2m (4 ft).

Product Details

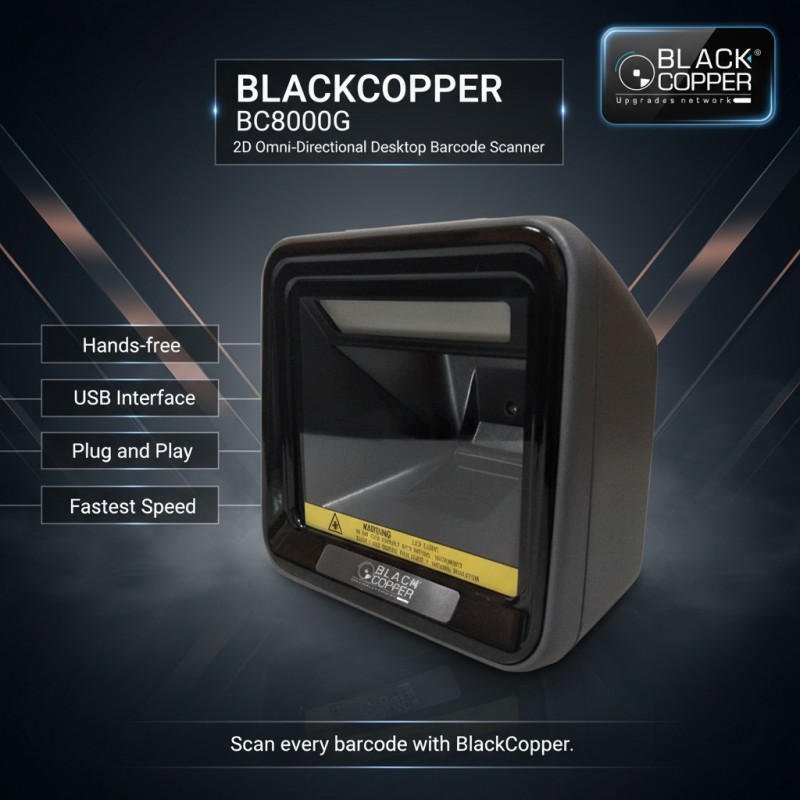

Manufacturing, healthcare, retail point-of-sale and other workflow environments often involve mixed barcode applications. If your organization is the same, and you’d benefit from hands-free, presentation scanning, Black Copper has just the solution: the BC-8000G area-imaging scanner.

Simply put, the BC-8000G scanner is a high achiever. It’s the advanced area-imaging scanner engineered to decode all standard 1D, PDF and 2D codes.

Powered by COMS array sensor, the BC-8000G is defining industry standards for imaging solutions. It even gives you aggressive reading of barcodes on highly reflective surfaces like mobile phone screens.

Find out more about what your organization can accomplish with the BC-8000G area-imaging scanner and Black Copper workflow solutions.

Specifications

PHYSICAL CHARACTERISTICS

Dimensions (L*W*H)
79mm*145mm*148mm
Weight
530g
Configurations
Decoding


ENVIRONMENTAL

Temp
0 - 50% (operation)
-5 - 55% (storage)
Humidity
5%~95%(No condensation)
Ambient light
Fluorescent light 4000lx max, direct sun light 80,000lx max ,white light 4000lx max
Shock drop test
1.2m drop onto concrete surface


ELECTRICAL

Interface
RS-232/USB HID KEYBOARD/USB VCP/
Voltage requirement
5VDC±10%
Current consumption
Max:200mA


OPTICAL CHARACTERISTICS

Photo sensor
CMOS array sensor
Sensor resolution
1280X800 pixels
Aim light source
Red LED

SCANNING PERFORMANCE

Min resolution
1D: 5mil (0.127mm)
2D: 10mil (0.25mm)
Min.PCS value
>25% UPC/EAN 13 (13mil)
Field of View
39° (H), 25° (V)

SUPPORTED BARCODE SYMBOLOGIES

1D: Codebar, Code128, Code39, Code39, Code93, Code11, EAN13, EAN8, GS1-Databar, GS1-128 (EAN-128), Interleaved 2 of 5, Matrix 2 of 5, Industry 2 of 5, UPC-A, UPC-E, ISBN, ISSN

2D: PDF417, Data Matrix, QR Code, Micro PDF417, Micro QR Code, Aztec Code
