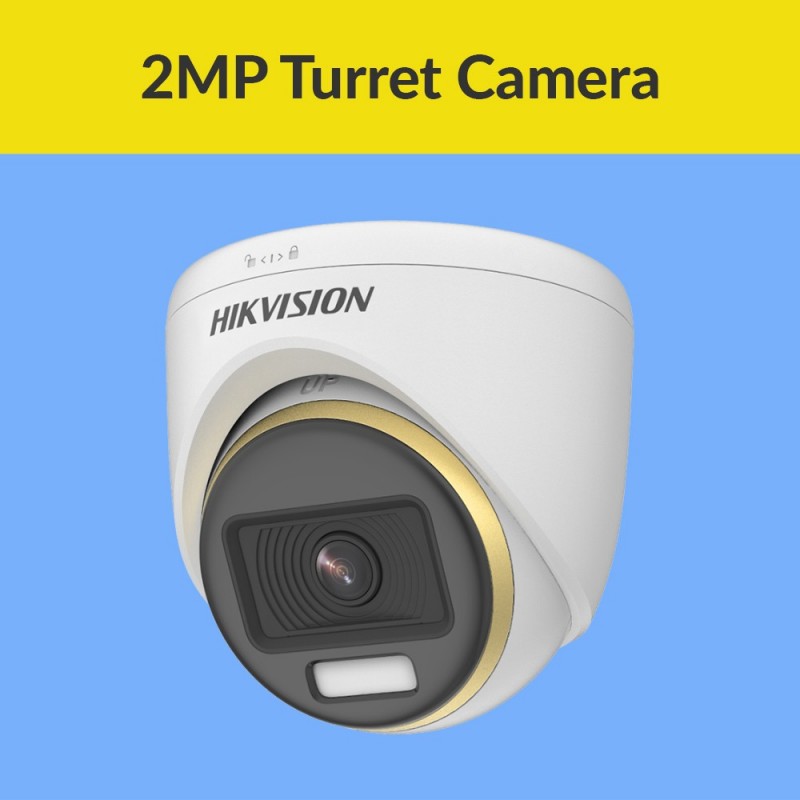

2 MP ColorVu Fixed Turret Camera

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Up to 20 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)

Specification

• Camera
• Image Sensor: 2 MP CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
• Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & Night: 24/7 Color Imaging
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
• Signal System: PAL/NTSC
• Slow Shutter: Max. 16 times
• Light Alarm: Solid Light Alarm (White Light)

• Lens
• Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°

  3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°

  6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 59°

• Lens Mount: M12

• Illuminator
• Supplement Light Type: White Light
• Supplement Light Range: Up to 20 m
• Smart Supplement Light: Yes

• Image
• Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
• Image Settings: Brightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding
• Frame Rate

  TVI: 1080p@25fps/30fps

  CVI: 1080p@25fps/30fps

  AHD: 1080p@25fps/30fps

  CVBS: PAL/NTSC

• Day/Night Mode: Color
• Wide Dynamic Range (WDR): ≥130 dB
• Image Enhancement: WDR;BLC;HLC;Global;HLS
• Privacy Mask: 4 programmable privacy masks
• Noise Reduction: 3D DNR/2D DNR
• White Balance: Auto/Manual
• White Light: Auto/Off
• AGC: Yes

• Interface
• Video Output: Switchable TVI/AHD/CVI/CVBS

• Event
• Motion Detection: 4 programmable motion areas

• General
• Material: Plastic
• Dimension: Φ 85.02 mm × 81.25 mm (Φ 3.35" × 3.2") (Approx. 163 g (0.36 lb.)
• Operating Condition: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Communication: HIKVISION-C
• Language: English
• Power Supply

  12 VDC ± 25%,

  You are recommended to use one power adapter to supply the power for one camera.

• Consumption: Max. 2.9 W
