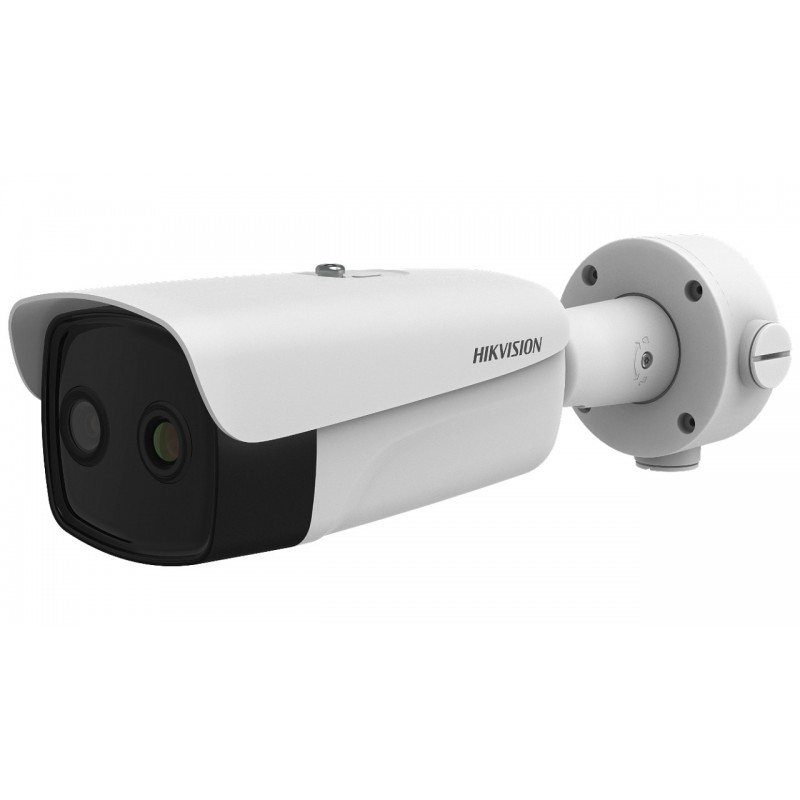

Temperature Screening Thermographic Bullet Camera

• High sensitivity thermal module with 384 x 288 resolution
• NETD is less than 40 mk (@25° C, F#=1.0)
• Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
• Reliable temperature detection alarm
• High quality optical module with 4 MP resolution
• Bi-spectrum image fusion, picture-in-picture preview

Specification

• Thermal

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Resolution: 384×288
• Pixel Interval: 17μm
• Response Waveband: 8μm to 14μm
• NETD: Less than 40 mK (@25°C,F#=1.0)
• Focal Length: 9.7mm
• Focus Mode: Athermalized
• IFOV: 1.75 mrad
• Aperture: F1.0
• Field Of View: 37.5° × 28.5° (H × V)
• Min. Focusing Distance: 1 m

• Optical
• Image Sensor 1/2.7" Progressive Scan CMOS
• Resolution 2688×1520, 4MP
• Min. Illumination Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
• Field Of View 84° × 44.8° (H × V)
• Focal Length 4mm
• Focus Mode Fixed
• Shutter Speed 1s to 1/100,000s
• White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
• Day & Night Mode IR cut filter with auto switch
• WDR 120 dB

• Illuminator
• IR Distance Up to 50 m
• IR Intensity And Angle Automatically adjusted

• Feature
• Bi-Spectrum Image Fusion Display the details of optical channel on thermal channel
• Picture In Picture Display partial image of thermal channel on the full screen of optical channel

• Smart Function
• Temperature Measurement Support 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
• Temperature Range From 30°C to 45°C (86°F ~ 113°F)
• Temperature Accuracy ± 0.5 °C

• Network
• Main Stream Thermal: 50fps(1280 × 720, 704 × 576, 384 × 288, 352 × 288);Optical: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720);Optical: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
• Sub Stream Thermal: 25fps(704 × 576, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144);Optical: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
• Video Compression H.264 (Baseline/Main/High Profile) /MJPEG/H.265
• Audio Compression G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
• Security Password protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP over HTTPS
• Simultaneous Live View Up to 20

• Interface
• Client: iVMS-4200, Hik-Connect
• Web Browser: Plug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
• Alarm Input: 2-ch inputs (0-5vDC)
• Alarm Output: 2-ch relay outputs, alarm response actions configurable
• Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input: 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
• Audio Output: Linear Level; Impedance: 600Ω
• RS: 4851, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
• Analog Video Output: 1.0V [p-p]/75Ω, BNC, PAL/NTSC
• Communication Interface: 1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
• On-Board Storage: Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support manual/alarm recording

• General
• Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Wiper: No
• User/Host Level: Up to 32 users, 3 levels: Administrator, Operator, User
• Power: 24 VAC ± 25%;12 VDC ± 25%;PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A
• Power Consumption: 18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W
• Work Temperature/Humidity: From 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
• Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Dimension: 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
• Weight: Approx. 1.82 kg (4.01 lb)
